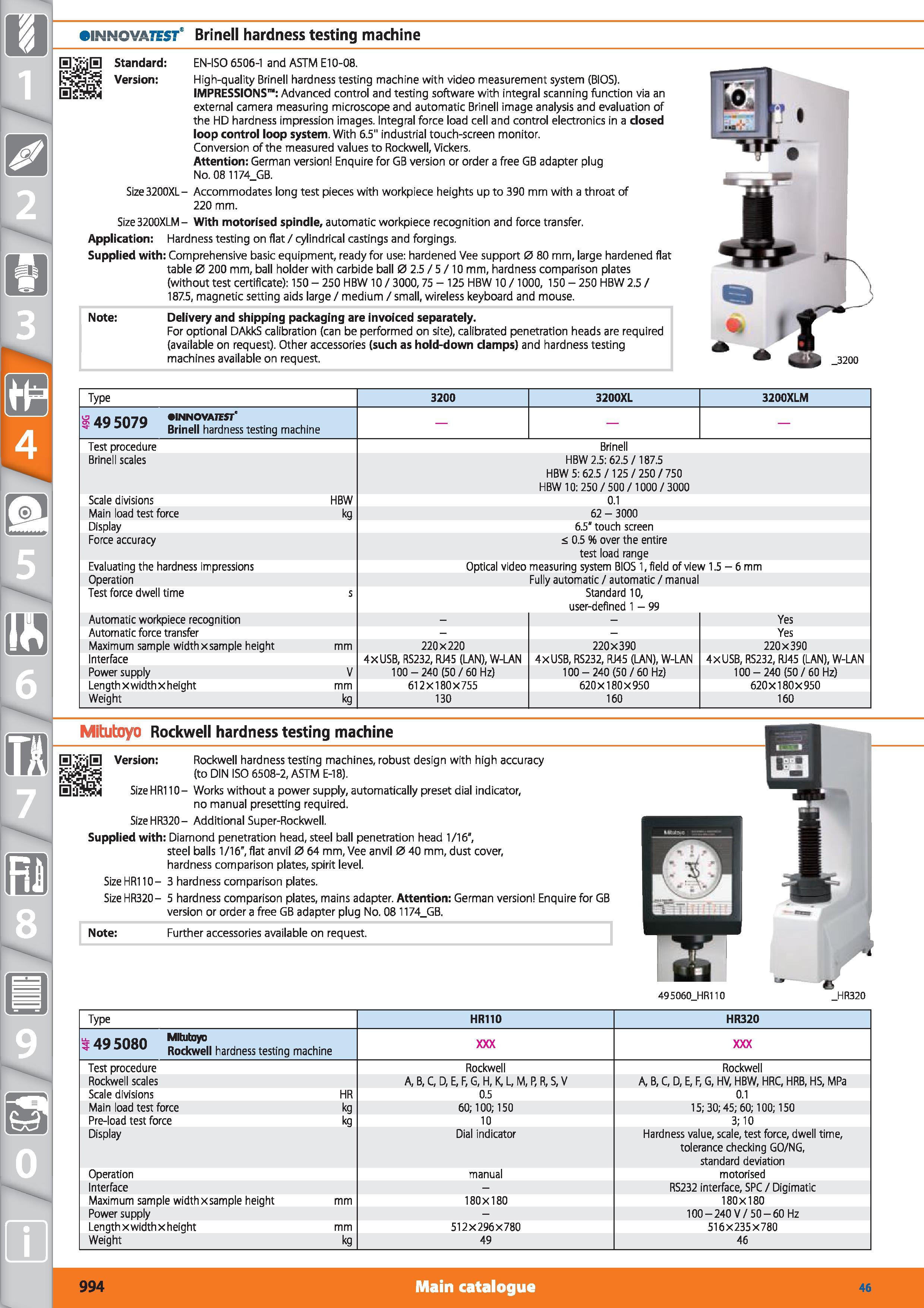

INNOVATES -" Brinell hardness testing machine 0 Standard EN-ISO 6506-1 and ASTME10-08. Version High-quality Brinell hardness testing machine with video measurement system (BIOS). IMPRESSIONS Advanced control and testing software with integral scanning function via an external camera measuring microscope and automatic Brinell image analysis and evaluation of the HD hardness impression images. Integral force load cell and control electronics in a closed loop control loop system. With 6.5" industrial touch-screen monitor. Conversion of the measured values to Rockwell, Vickers. Attention German version Enquire for GB version or order a free GB adapter plug No. 08 1174_GB. Size3200XL- Accommodates long test pieces with workpiece heights up to 390 mm with a throat of 220 mm. Size 3200XLM - With motorised spindle, automatic workpiece recognition and force transfer. Application Hardness testing on flat / cylindrical castings and forgings. Supplied with Comprehensive basic equipment, ready for use hardened Vee support 0 80 mm, large hardened flat table 0 200 mm, ball holder with carbide ball 0 2.5 / 5 /10 mm, hardness comparison plates (without test certificate) 150 - 250 HBW 10 / 3000,75- 125 HBW 10 /1000, 150 - 250 HBW 2.5 / 187.5, magnetic setting aids large / medium / small, wireless keyboard and mouse. Note Delivery and shipping packaging are invoiced separately. For optional DAkkS calibration (can be performed on site), calibrated penetration heads are required (available on request). Other accessories (such as hold-down clamps) and hardness testing machines available on request. Type 3200 3200XL 3200XLM S 49 5079 INNOVAreST" Brinell hardness testing machine Test procedure Brinell Brinell scales HBW 2.5:62.5/ 187.5 HBW 5:62.5/125/250/750 HBW 10 250/500/1000/3000 Scale divisions HBW 0.1 Main load test force kq 62 - 3000 Display 6.5" touch screen Force accuracy <, 0.5 over the entire test load range Evaluating the hardness impressions Optical video measuring system BIOS 1, field of view 1.5-6 mm Operation Fully automatic / automatic / manual Test force dwell time s Standard 10, user-defined 1 - 99 Automatic workpiece recognition Yes Automatic force transfer Yes Maximum sample widthxsample height mm 220x220 220x390 220x390 Interface 4XUSB, RS232, RJ45 (LAN), W-LAN 4XUSB, RS232, RJ45 (LAN), W-LAN 4XUSB, RS232, RJ45 (LAN), W-LAN Power supply V 100-240 (50/60 Hz) 100 - 240 (50 / 60 Hz) 100 - 240(50 / 60 Hz) Length x widthx height mm 612X180X755 620X180X950 620X180X950 Weight kg 130 160 160 Mitutoyo Rockwell hardness testing machine Version Rockwell hardness testing machines, robust design with high accuracy (to DIN ISO 6508-2, ASTM E-18). Size HR110- Works without a power supply, automatically preset dial indicator, no manual presetting required. SizeHR320- Additional Super-Rockwell. Supplied with Diamond penetration head, steel ball penetration head 1/16", steel balls 1/16”, flat anvil 0 64 mm, Vee anvil 0 40 mm, dust cover, hardness comparison plates, spirit level. Size HR110- 3 hardness comparison plates. Size HR320- 5 hardness comparison plates, mains adapter. Attention German version Enquire for GB version or order a free GB adapter plug No. 081174_GB. Note Further accessories available on request. 495060 HR110 Type HR110 HR320 S 49 5080 Mltutoyo , Rockwell hardness testing machine Test procedure Rockwell Rockwell Rockwell scales A, B, C, D, E, F, G, H, K, L, M, P, R, S, V A, B, C, D, E, F, G, HV, HBW, HRC, HRB, HS, MPa Scale divisions HR 0.5 0.1 Main load test force kg 60; 100; 150 15; 30; 45; 60; 100; 150 Pre-load test force kg 10 3; 10 Display Dial indicator Hardness value, scale, test force, dwell time, tolerance checking GO/NG, standard deviation Operation manual motorised Interface - RS232 interface, SPC / Digimatic Maximum sample width xsample height mm 180X180 180x180 Power supply - 100-240V/50-60 Hz Length x widthx height mm 512x296x780 516x235x780 Weight kg 49 46 994 Main catalogue Hoffmann Group 46
