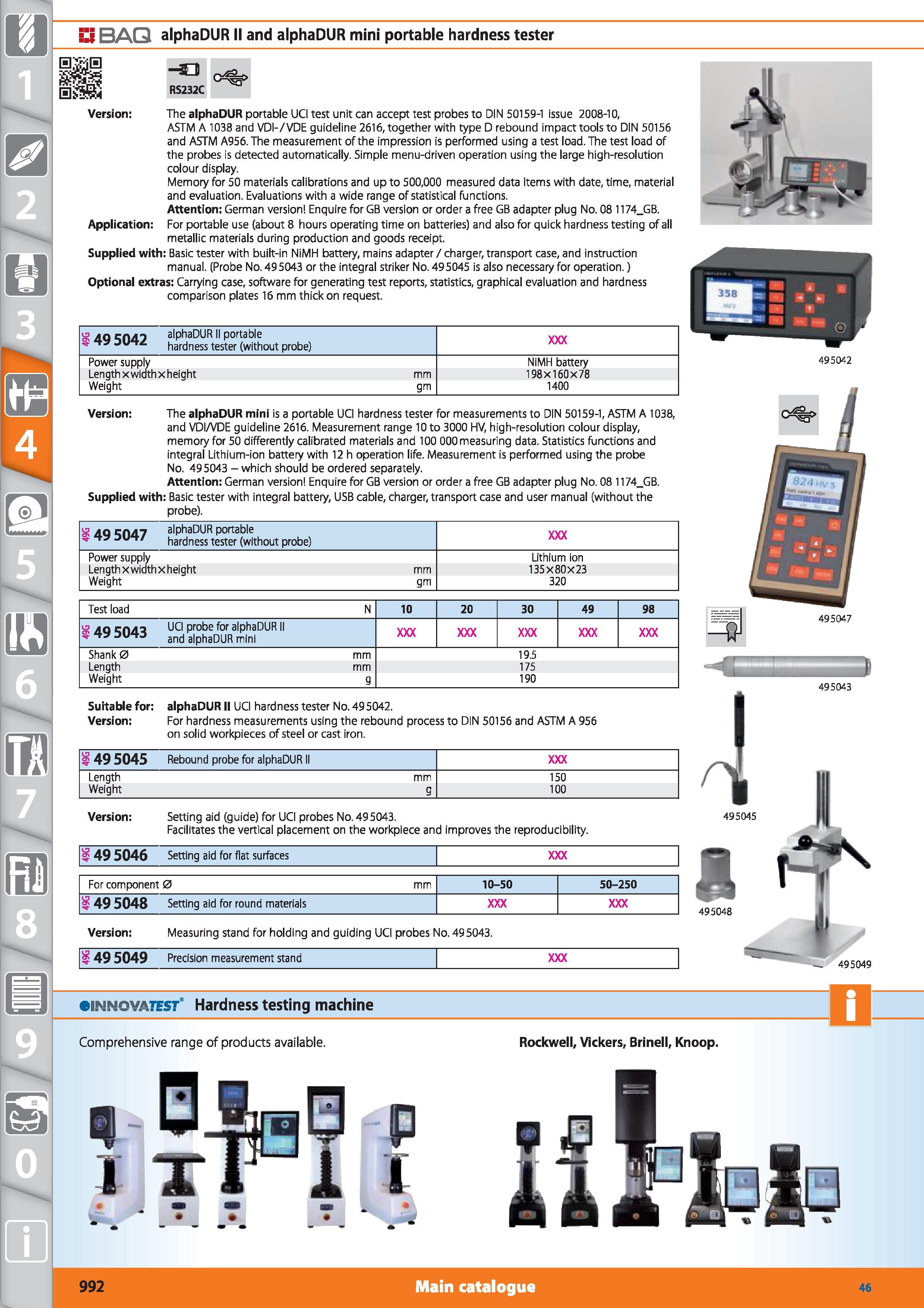

ili BAQ alphaDUR II and alphaDUR mini portable hardness tester 5lB C y> 0 1 RS232C Version The alphaDUR portable UCI test unit can accept test probes to DIN 50159-1 issue 2008-10, ASTM A 1038 and VDI-/VDE guideline 2616, together with type D rebound impact tools to DIN 50156 and ASTM A956. The measurement of the impression is performed using a test load. The test load of the probes is detected automatically. Simple menu-driven operation using the large high-resolution colour display. Memory for 50 materials calibrations and up to 500,000 measured data items with date, time, material and evaluation. Evaluations with a wide range of statistical functions. Attention German version Enquire for GB version or order a free GB adapter plug No. 08 1174_GB. Application For portable use (about 8 hours operating time on batteries) and also for quick hardness testing of all metallic materials during production and goods receipt. Supplied with Basic tester with built-in NiMH battery, mains adapter / charger, transport case, and instruction manual. (Probe No. 495043 or the integral striker No. 495045 is also necessary for operation.) Optional extras Carrying case, software for generating test reports, statistics, graphical evaluation and hardness comparison plates 16 mm thick on request. 49 5042 alphaDUR II portable a- r hardness tester (without probe) Power supply NiMH battery Length xwidthx height mm 198x160x78 Weight gm 1400 495042 Version The alphaDUR mini is a portable UCI hardness tester for measurements to DIN 50159-1, ASTM A 1038, and VDI/VDE guideline 2616. Measurement range 10 to 3000 HV, high-resolution colour display, memory for 50 differently calibrated materials and 100 000 measuring data. Statistics functions and integral Lithium-ion battery with 12 h operation life. Measurement is performed using the probe No. 495043 - which should be ordered separately. Attention German version Enquire for GB version or order a free GB adapter plug No. 08 1174_GB. Supplied with Basic tester with integral battery, USB cable, charger, transport case and user manual (without the probe). S AQ qn47 alphaDUR portable -ry jvtt hardness tester (without probe) Power supply Lithium ion Length xwidthx height mm 135x80x23 Weight gm 320 Test load N 10 20 30 49 98 9 49 5043 UCI probe for alphaDUR II and alphaDUR mini Shank 0 mm 19.5 Length mm 175 Weight g 190 0 m Suitable for alphaDUR II UCI hardness tester No. 495042. Version For hardness measurements using the rebound process to DIN 50156 and ASTM A 956 on solid workpieces of steel or cast iron. 5 49 5045 Rebound probe for alphaDUR II Length mm 150 Weight g 100 Version Setting aid (guide) for UCI probes No. 495043. Facilitates the vertical placement on the workpiece and improves the reproducibility. 5 49 5046 Setting aid for flat surfaces For component 0 mm 10-50 50-250 49 5048 Setting aid for round materials Version Measuring stand for holding and guiding UCI probes No. 495043. 495049 Precision measurement stand INNGYATfsr Hardness testing machine Comprehensive range of products available. 495047 495049 495043 nl 495045 1 495048 Rockwell, Vickers, Brinell, Knoop. 992 Main catalogue Hoffmann Group 46
