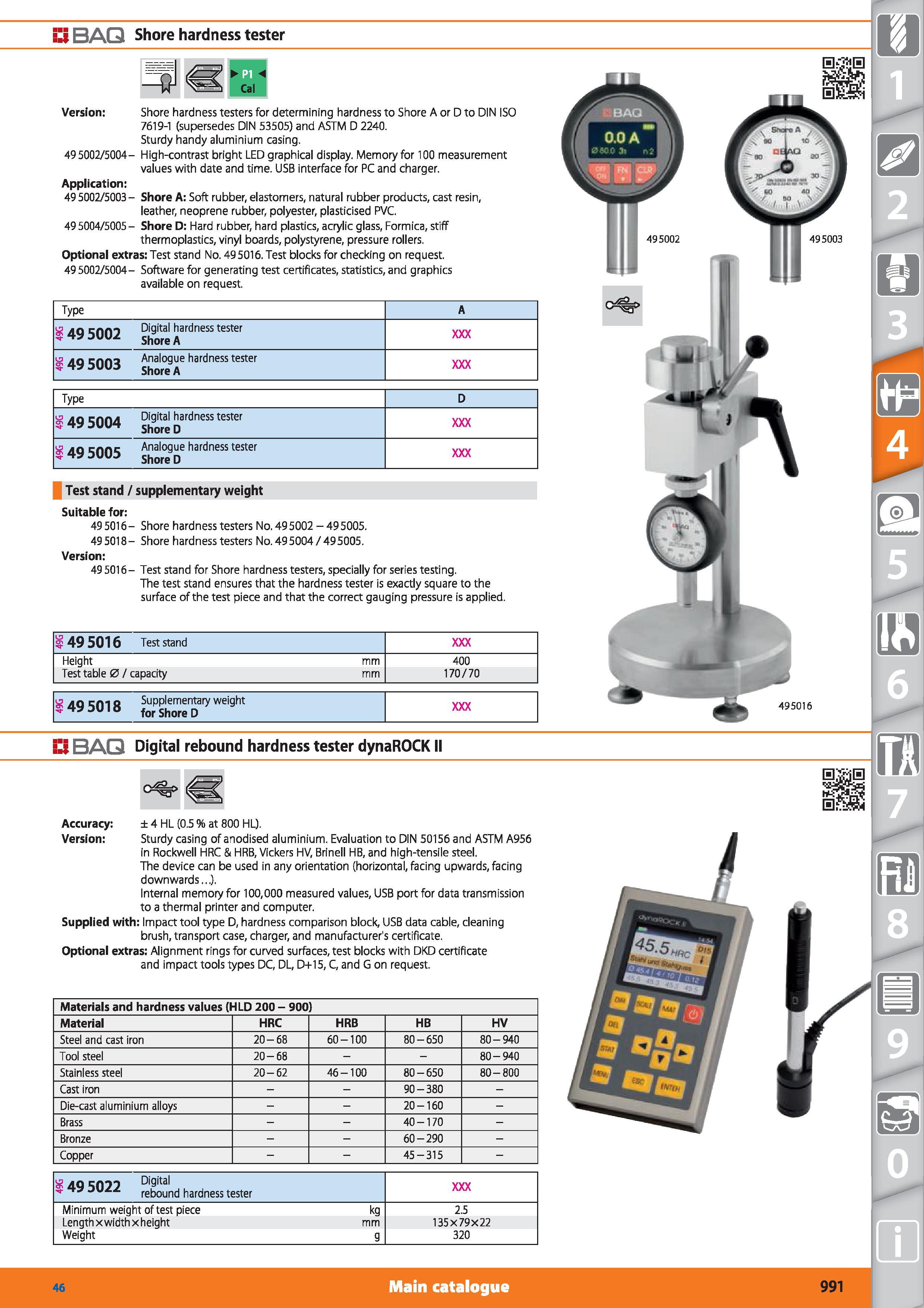

iliBAQ Shore hardness tester Version Shore hardness testers for determining hardness to Shore A or D to DIN ISO 7619-1 (supersedes DIN 53505) and ASTM D 2240. Sturdy handy aluminium casing. 495002/5004- High-contrast bright LED graphical display. Memory for 100 measurement values with date and time. USB interface for PC and charger. Application 49 5002/5003 - Shore A Soft rubber, elastomers, natural rubber products, cast resin, leather, neoprene rubber, polyester, plasticised PVC. 495004/5005- Shore D Hard rubber, hard plastics, acrylic glass, Formica, stiff thermoplastics, vinyl boards, polystyrene, pressure rollers. Optional extras Test stand No. 495016. Test blocks for checking on request. 49 5002/5004- Software for generating test certificates, statistics, and graphics available on request. Type A S AQ rnrn Digital hardness tester W Shore A 13 in rnna Analogue hardness tester ij'iaauus shore A Type D s aq qnnd D'9'tal hardness tester suw shore q S AQ cnnc; Analogue hardness tester DUU3 shore p Test stand / supplementary weight Suitable for 495016-49 5018-Version 49 5016- Shore hardness testers No. 495002 - 495005. Shore hardness testers No. 495004 / 495005. Test stand for Shore hardness testers, specially for series testing. The test stand ensures that the hardness tester is exactly square to the surface of the test piece and that the correct gauging pressure is applied. si 49 5016 Test stand Height mm 400 Test table 0 / capacity mm 170/70 8 4Q qm a Supplementary weight 4y DU o for shore D ii RAP Digital rebound hardness tester dynaROCK II Accuracy ± 4 HL (0.5 at 800 HL). Version Sturdy casing of anodised aluminium. Evaluation to DIN 50156 and ASTM A956 in Rockwell HRC & HRB, Vickers HV, Brinell HB, and high-tensile steel. The device can be used in any orientation (horizontal, facing upwards, facing downwards...). Internal memory for 100,000 measured values, USB port for data transmission to a thermal printer and computer. Supplied with Impact tool type D, hardness comparison block, USB data cable, cleaning brush, transport case, charger, and manufacturer's certificate. Optional extras Alignment rings for curved surfaces, test blocks with DKD certificate and impact tools types DC, DL, D+15, C, and G on request. Materials and hardness values (HLD 200 - 900) Material HRC HRB HB HV Steel and cast iron 20-68 60-100 80 - 650 80 - 940 Tool steel 20-68 80 - 940 Stainless steel 20-62 46-100 80 - 650 80-800 Cast iron 90 - 380 - Die-cast aluminium alloys 20-160 - Brass 40-170 - Bronze 60-290 - Copper 45-315 - S AQ 5075 Digital ’ rebound hardness tester Minimum weight of test piece kg 2.5 Length x width x height mm 135x79x22 Weight g 320 Main catalogue Hoffmann Group 46 991
