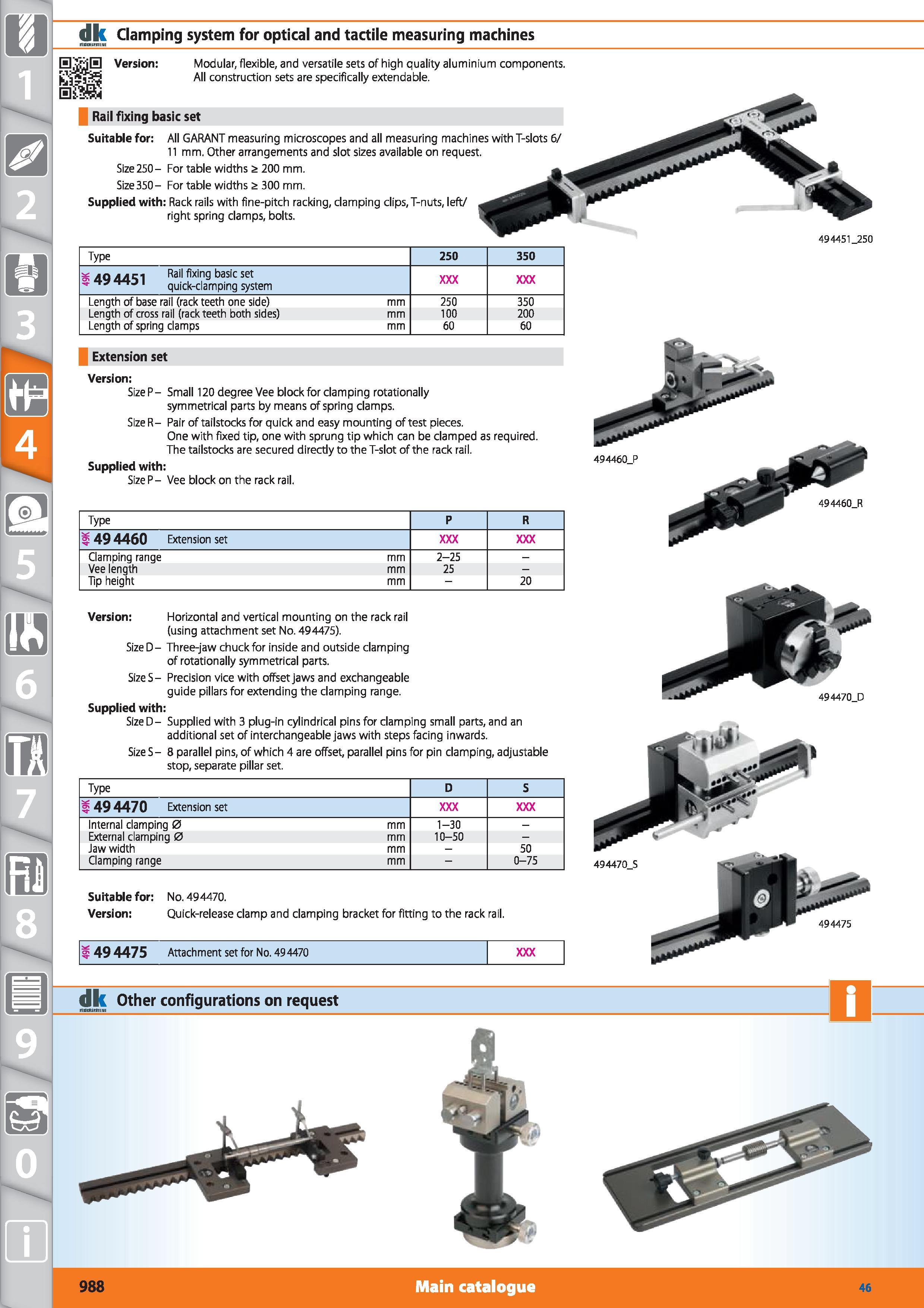

0=30 dk Clamping system for optical and tactile measuring machines 0 Version Modular, flexible, and versatile sets of high quality aluminium components. All construction sets are specifically extendable. Rail fixing basic set Suitable for All GARANT measuring microscopes and all measuring machines with T-slots 6/ 11 mm. Other arrangements and slot sizes available on request. Size 250- For table widths s 200 mm. Size 350- For table widths s 300 mm. Supplied with Rack rails with fine-pitch racking, clamping clips, T-nuts, left/ right spring clamps, bolts. .f , , i 494451 _250 Type 250 350 49 4451 Rail fixin9 basic set quick-damping system Length of base rail (rack teeth one side) mm 250 350 Length of cross rail (rack teeth both sides) mm 100 200 Length of spring clamps mm 60 60 Extension set Version SizeP- Small 120 degree Vee block for clamping rotationally symmetrical parts by means of spring clamps. SizeR- Pair of tailstocks for quick and easy mounting of test pieces. One with fixed tip, one with sprung tip which can be clamped as required. The tailstocks are secured directly to the T-slot of the rack rail. Supplied with Size P- Vee block on the rack rail. Type P R 49 4460 Extension set Clamping range mm 2-25 - Vee length mm 25 - Tip height mm - 20 494460_R Version Horizontal and vertical mounting on the rack rail (using attachment set No. 494475). SizeD- Three-jaw chuck for inside and outside clamping of rotationally symmetrical parts. SizeS- Precision vice with offset jaws and exchangeable guide pillars for extending the clamping range. Supplied with Size D- Supplied with 3 plug-in cylindrical pins for clamping small parts, and an additional set of interchangeable jaws with steps facing inwards. SizeS- 8 parallel pins, of which 4 are offset, parallel pins for pin clamping, adjustable stop, separate pillar set. Type D s 49 4470 Extension set Internal clamping 0 mm 1-30 - External clamping 0 mm 10-50 - Jaw width mm - 50 Clamping range mm - 0-75 Suitable for No. 494470. Version Quick-release clamp and clamping bracket for fitting to the rack rail. 49 4475 Attachment set for No. 494470 494475 dk Other configurations on request FlHFllFtlFUF
