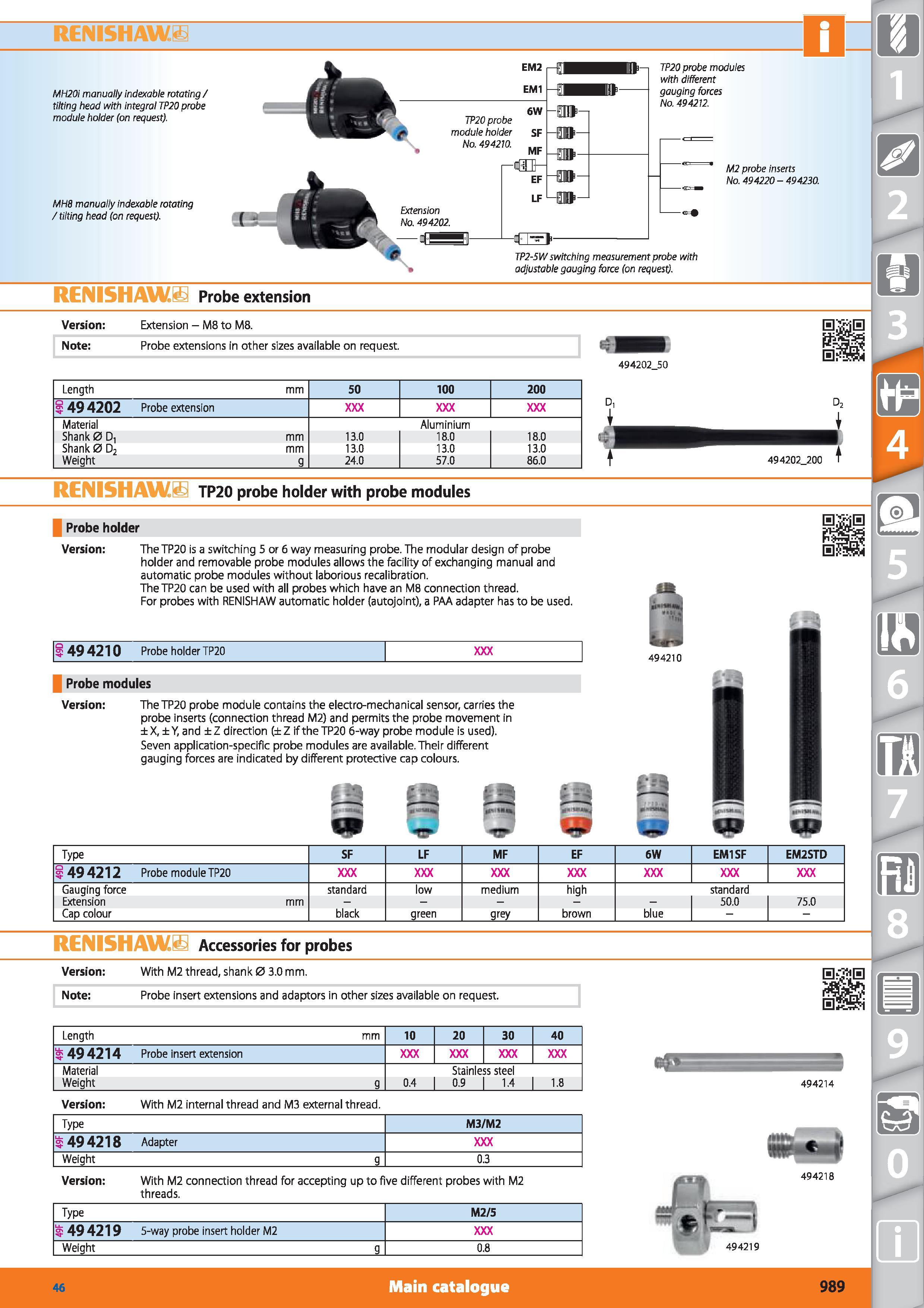

RENISHAW< MH20i manually indexable rotating / tilting head with integral TP20 probe module holder (on request). MH8 manually indexable rotating /tilting head (on request). 6W TP20 probe module holder SF No. 494210. iiP MF EF H 0 -i - -m- -Bt i, TP20 probe modules with different gauging forces No. 494212. M2 probe inserts No. 494220-494230. TP2-5W switching measurement probe with adjustable gauging force (on request). RENISHAW.S Probe extension Version Extension - M8 to M8. Note Probe extensions in other sizes available on request. 494202 50 Length mm 50 100 200 3 49 4202 Probe extension Material Aluminium Shank 0 D, mm 13.0 18.0 18.0 Shank 0 D2 mm 13.0 13.0 13.0 Weight g 24.0 57.0 86.0 RENISHAW.il TP20 probe holder with probe modules Probe holder Version TheTP20 is a switching 5 or 6 way measuring probe. The modular design of probe holder and removable probe modules allows the facility of exchanging manual and automatic probe modules without laborious recalibration. TheTP20 can be used with all probes which have an M8 connection thread. For probes with RENISFIAW automatic holder (autojoint), a PAA adapter has to be used. 3 49 4210 Probe holder TP20 Probe modules Version TheTP20 probe module contains the electro-mechanical sensor, carries the probe inserts (connection thread M2) and permits the probe movement in ±X, ±Y, and ±Z direction (±Z iftheTP20 6-way probe module is used). Seven application-specific probe modules are available. Their different gauging forces are indicated by different protective cap colours. 494210 Type SF LF MF EF 6W EM1SF EM2STD 3 49 4212 Probe module TP20 Gauging force standard low medium high standard Extension mm - 50.0 75.0 Cap colour black green grey brown blue RENISHAW.S Accessories for probes Version Note With M2 thread, shank 0 3.0 mm. Probe insert extensions and adaptors in other sizes available on request. Main catalogue Hoffmann Group 46 Length mm 10 20 30 40 494214 Probe insert extension Material Stainless steel Weight g 0.4 0.9 1.4 1.8 Version With M2 internal thread and M3 external thread. Type M3/M2 494218 Adapter Weight g 0.3 Version With M2 connection thread for accepting up to five different probes with M2 threads. Type M2/5 494219 5-way probe insert holder M2 Weight g 0.8 494214 f 494218 989
