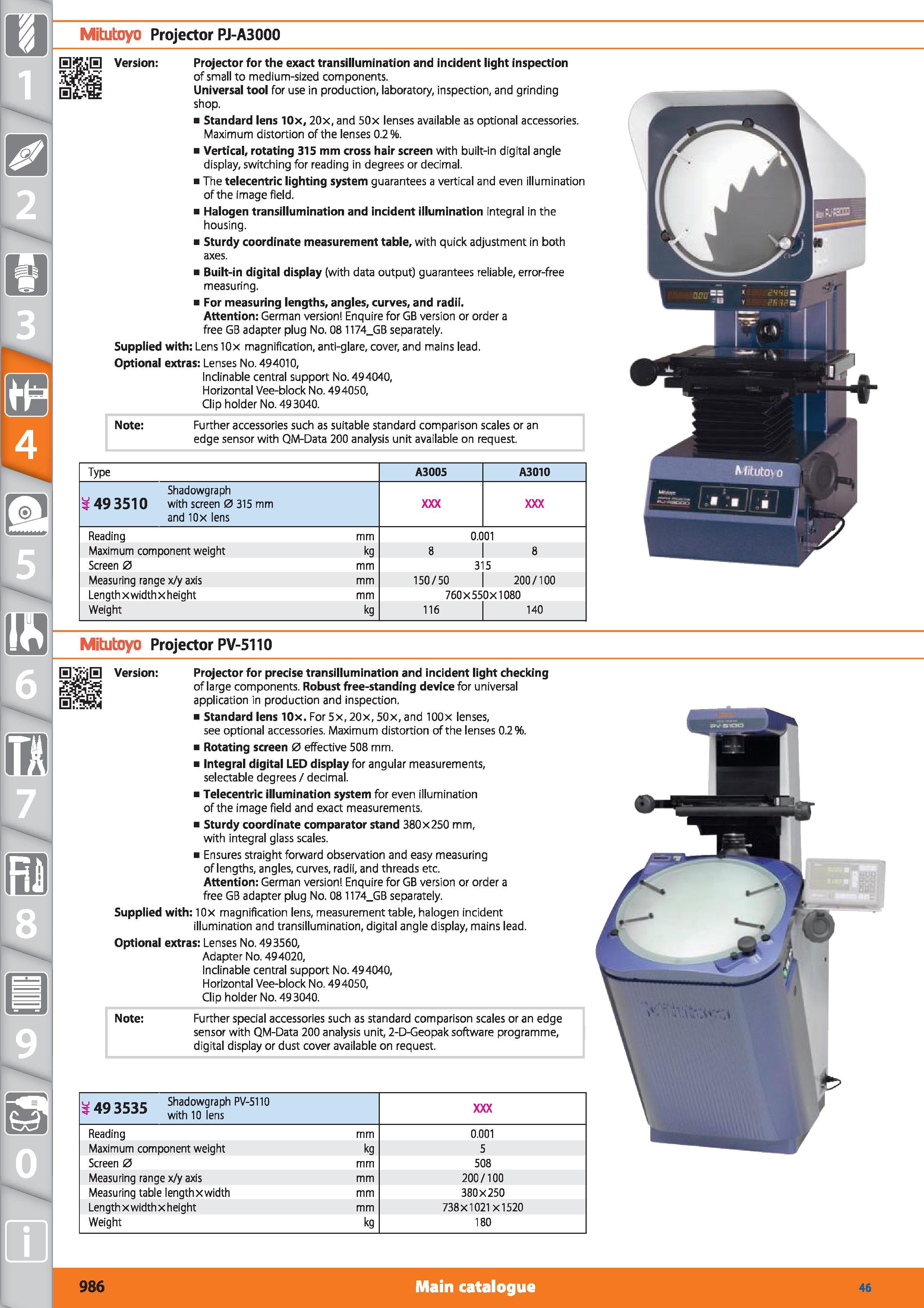

Mitutoyo Projector PJ-A3000 Version Projector for the exact transillumination and incident light inspection of small to medium-sized components. Universal tool for use in production, laboratory, inspection, and grinding shop. Standard lens lOx, 20x, and 50x lenses available as optional accessories. Maximum distortion of the lenses 0.2%. Vertical, rotating 315 mm cross hair screen with built-in digital angle display, switching for reading in degrees or decimal. The telecentric lighting system guarantees a vertical and even illumination of the image field. Halogen transillumination and incident illumination integral in the housing. Sturdy coordinate measurement table, with quick adjustment in both axes. Built-in digital display (with data output) guarantees reliable, error-free measuring. For measuring lengths, angles, curves, and radii. Attention German version Enquire for GB version or order a free GB adapter plug No. 081174_GB separately. Supplied with Lens lOx magnification, anti-glare, cover, and mains lead. Optional extras Lenses No. 494010, Inclinable central support No. 494040, Horizontal Vee-block No. 494050, Clip holder No. 493040. Note Further accessories such as suitable standard comparison scales or an edge sensor with QM-Data 200 analysis unit available on request. Type A3005 A3010 49 3510 Shadowgraph with screen 0 315 mm and 10x lens Reading mm 0.001 Maximum component weight kg 8 8 Screen 0 mm 315 Measuring range x/y axis mm 150/50 200/100 Length xwidthx height mm 760 X 550X1080 Weight kg 116 140 Mitutoyo Projector PV-5110 Version Projector for precise transillumination and incident light checking of large components. Robust free-standing device for universal application in production and inspection. Standard lens lOx. For 5x, 20x, 50x, and 100X lenses, see optional accessories. Maximum distortion of the lenses 0.2%. Rotating screen 0 effective 508 mm. Integral digital LED display for angular measurements, selectable degrees / decimal. Telecentric illumination system for even illumination of the image field and exact measurements. Sturdy coordinate comparator stand 380 x 250 mm, with integral glass scales. Ensures straight forward observation and easy measuring of lengths, angles, curves, radii, and threads etc. Attention German version Enquire for GB version or order a free GB adapter plug No. 081174_GB separately. Supplied with lOx magnification lens, measurement table, halogen incident illumination and transillumination, digital angle display, mains lead. Optional extras Lenses No. 493560, Adapter No. 494020, Inclinable central support No. 494040, Horizontal Vee-block No. 494050, Clip holder No. 493040. Note Further special accessories such as standard comparison scales or an edge sensor with QM-Data 200 analysis unit, 2-D-Geopak software programme, digital display or dust cover available on request. w ig ,r,r Shadowgraph PV-5110 with 10 lens Reading mm 0.001 Maximum component weight kg 5 Screen 0 mm 508 Measuring range x/y axis mm 200/100 Measuring table lengthxwidth mm 380X250 Length xwidthx height mm 738x1021x1520 Weight kg 180 986 Main catalogue Hoffmann Group 46
