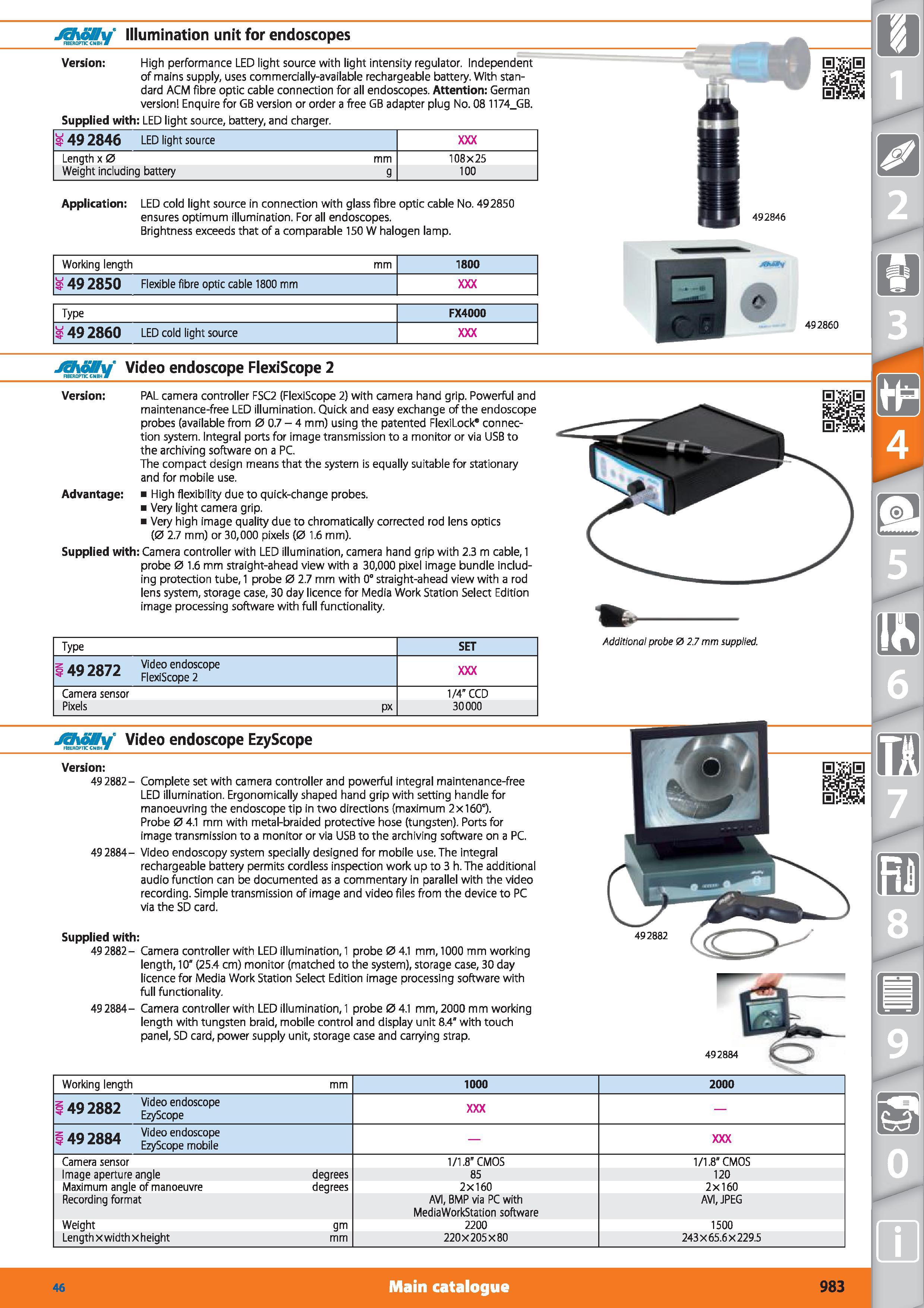

Illumination unit for endoscopes Version High performance LED light source with light intensity regulator. Independent of mains supply, uses commercially-available rechargeable battery. With standard ACM fibre optic cable connection for all endoscopes. Attention German version Enquire for GB version or order a free GB adapter plug No. 08 1174_GB. Supplied with LED light source, battery, and charger. 49 2846 LED light source Length x 0 mm 108x25 Weight including battery g 100 Application LED cold light source in connection with glass fibre optic cable No. 492850 ensures optimum illumination. For all endoscopes. Brightness exceeds that of a comparable 150 W halogen lamp. Working length mm 1800 49 2850 Flexible fibre optic cable 1800 mm Type FX4000 49 2860 LED cold light source 492860 JBmSMv Video endoscope FlexiScope 2 FIBEROPTIC CNBH 1 1 Version PAL camera controller FSC2 (FlexiScope 2) with camera hand grip. Powerful and maintenance-free LED illumination. Quick and easy exchange of the endoscope probes (available from 0 0.7 - 4 mm) using the patented FlexiLock" connection system. Integral ports for image transmission to a monitor or via USB to the archiving software on a PC. The compact design means that the system is equally suitable for stationary and for mobile use. Advantage High flexibility due to quick-change probes. Very light camera grip. Very high image quality due to chromatically corrected rod lens optics (0 2.7 mm) or 30,000 pixels (0 1.6 mm). Supplied with Camera controller with LED illumination, camera hand grip with 2.3 m cable, 1 probe 0 1.6 mm straight-ahead view with a 30,000 pixel image bundle including protection tube, 1 probe 0 2.7 mm with 0° straight-ahead view with a rod lens system, storage case, 30 day licence for Media Work Station Select Edition image processing software with full functionality. Type SET 1492872 Video endoscope FlexiScope 2 Camera sensor 1/4” CCD Pixels px 30000 Additional probe 0 2.7 mm supplied. JEhoffu Video endoscope EzyScope FIBEROPTIC CNBH M Version 49 2882- Complete set with camera controller and powerful integral maintenance-free LED illumination. Ergonomically shaped hand grip with setting handle for manoeuvring the endoscope tip in two directions (maximum 2x160°). Probe 0 4.1 mm with metal-braided protective hose (tungsten). Ports for image transmission to a monitor or via USB to the archiving software on a PC. 49 2884- Video endoscopy system specially designed for mobile use. The integral rechargeable battery permits cordless inspection work up to 3 h. The additional audio function can be documented as a commentary in parallel with the video recording. Simple transmission of image and video files from the device to PC via the SD card. Supplied with 492882- Camera controller with LED illumination, 1 probe 0 4.1 mm, 1000 mm working length, 10" (25.4 cm) monitor (matched to the system), storage case, 30 day licence for Media Work Station Select Edition image processing software with full functionality. 49 2884- Camera controller with LED illumination, 1 probe 0 4.1 mm, 2000 mm working length with tungsten braid, mobile control and display unit 8.4" with touch panel, SD card, power supply unit, storage case and carrying strap. 492884 Working length mm 1000 2000 1492882 doscope z in iqqa Video endoscope 9 ‘V3 ZOOH EzyScope mobile Camera sensor 1/1.8” CMOS 1/1.8" CMOS Image aperture angle degrees 85 120 Maximum angle of manoeuvre degrees 2x160 2x160 Recording format AVI, BMP via PC with MediaWorkStation software AVI, JPEG Weight gm 2200 1500 Length x width x height mm 220x205x80 243x65.6x229.5 Main catalogue Hoffmann Group 46 983
