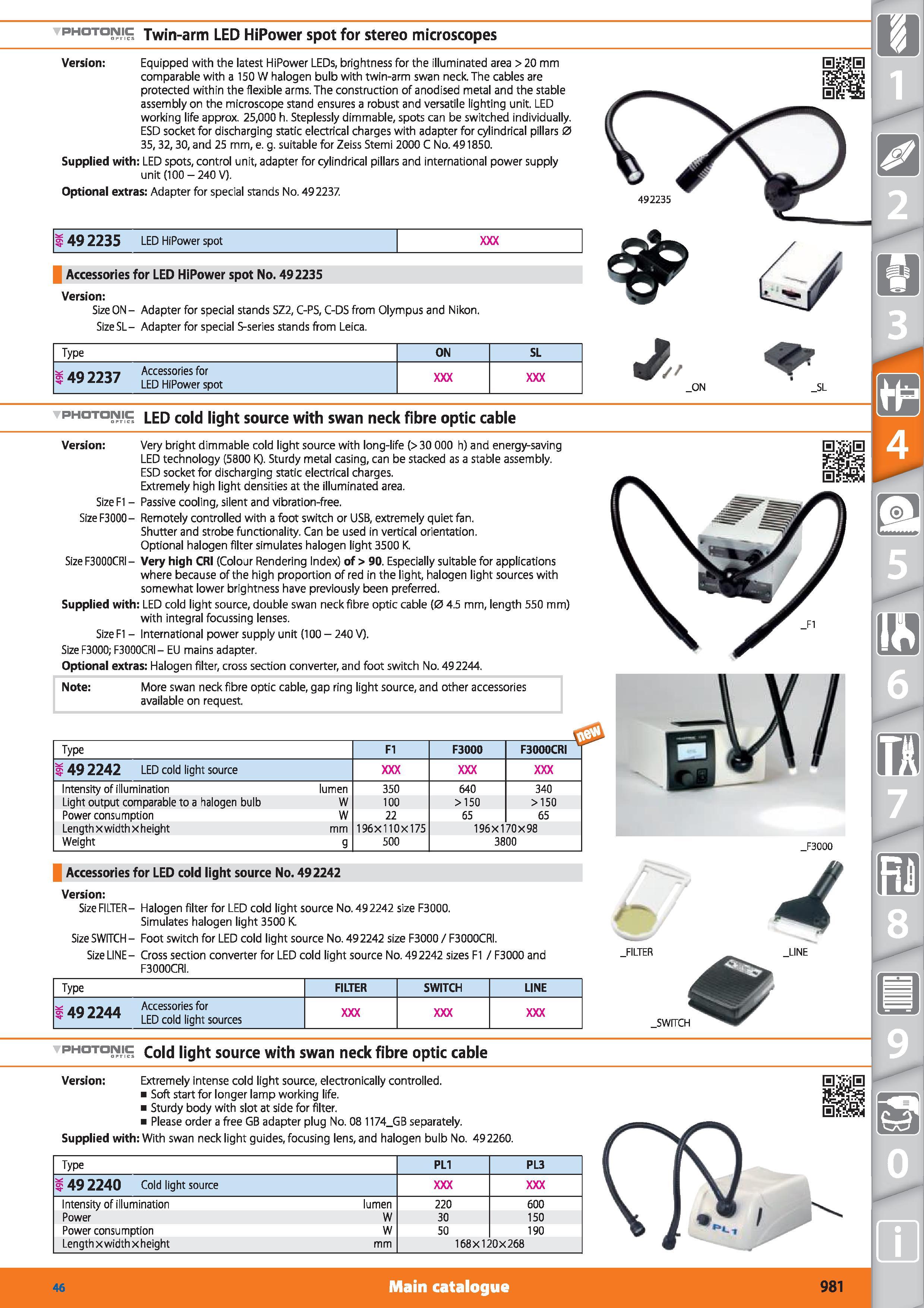

photonic Twin-arm LED HiPower spot for stereo microscopes Version Equipped with the latest HiPower LEDs, brightness for the illuminated area > 20 mm comparable with a 150 W halogen bulb with twin-arm swan neck. The cables are protected within the flexible arms. The construction of anodised metal and the stable assembly on the microscope stand ensures a robust and versatile lighting unit. LED working life approx. 25,000 h. Steplessly dimmable, spots can be switched individually. ESD socket for discharging static electrical charges with adapter for cylindrical pillars 0 35,32,30, and 25 mm, e. g. suitable for Zeiss Stemi 2000 C No. 491850. Supplied with LED spots, control unit, adapter for cylindrical pillars and international power supply unit (100 - 240 V). Optional extras Adapter for special stands No. 492237. SJ 49 2235 LED HiPower spot Accessories for LED HiPower spot No. 492235 Version Size ON - Adapter for special stands SZ2, C-PS, C-DS from Olympus and Nikon. SizeSL- Adapter for special S-series stands from Leica. Type ON SL 4922 7 Accessoriesfor -ty LED HiPower spot photonic led cold ijght source with swan neck fibre optic cable Version Very bright dimmable cold light source with long-life (> 30 000 h) and energy-saving LED technology (5800 K). Sturdy metal casing, can be stacked as a stable assembly. ESD socket for discharging static electrical charges. Extremely high light densities at the illuminated area. Size FI - Passive cooling, silent and vibration-free. Size F3000- Remotely controlled with a foot switch or USB, extremely quiet fan. Shutter and strobe functionality. Can be used in vertical orientation. Optional halogen filter simulates halogen light 3500 K. Size F3000CRI - Very high CRI (Colour Rendering Index) of > 90. Especially suitable for applications where because of the high proportion of red in the light, halogen light sources with somewhat lower brightness have previously been preferred. Supplied with LED cold light source, double swan neck fibre optic cable (0 4.5 mm, length 550 mm) with integral focussing lenses. Size FI - International power supply unit (100 - 240 V). Size F3000; F3000CRI- EU mains adapter. Optional extras Halogen filter, cross section converter, and foot switch No. 492244. Note More swan neck fibre optic cable, gap ring light source, and other accessories available on request. Type FI F3000 F3000CRI s 49 2242 LED cold light source Intensity of illumination lumen 350 640 340 Light output comparable to a halogen bulb W 100 >150 >150 Power consumption W 22 65 65 Length x width x height mm 196X110X175 196X170X98 Weight g 500 3800 Accessories for LED cold light source No. 492242 Version Size FILTER- Halogen filter for LED cold light source No. 492242 size F3000. Simulates halogen light 3500 K. Size SWITCH - Foot switch for LED cold light source No. 492242 size F3000 / F3000CRI. Size LINE- Cross section converter for LED cold light source No. 492242 sizes FI / F3000 and F3000CRI. Type FILTER SWITCH LINE 40 2244 Accessoriesfor n hhh led cold light sources photonic cold light source with swan neck fibre optic cable Version Extremely intense cold light source, electronically controlled. Soft start for longer lamp working life. Sturdy body with slot at side for filter. Please order a free GB adapter plug No. 08 1174_G B separately. Supplied with With swan neck light guides, focusing lens, and halogen bulb No. 492260. Type PL1 PL3 SJ 49 2240 Cold light source Intensity of illumination lumen 220 600 Power W 30 150 Power consumption W 50 190 Length x width x height mm 168X120X 268 Main catalogue Hoffmann Group 46 981
