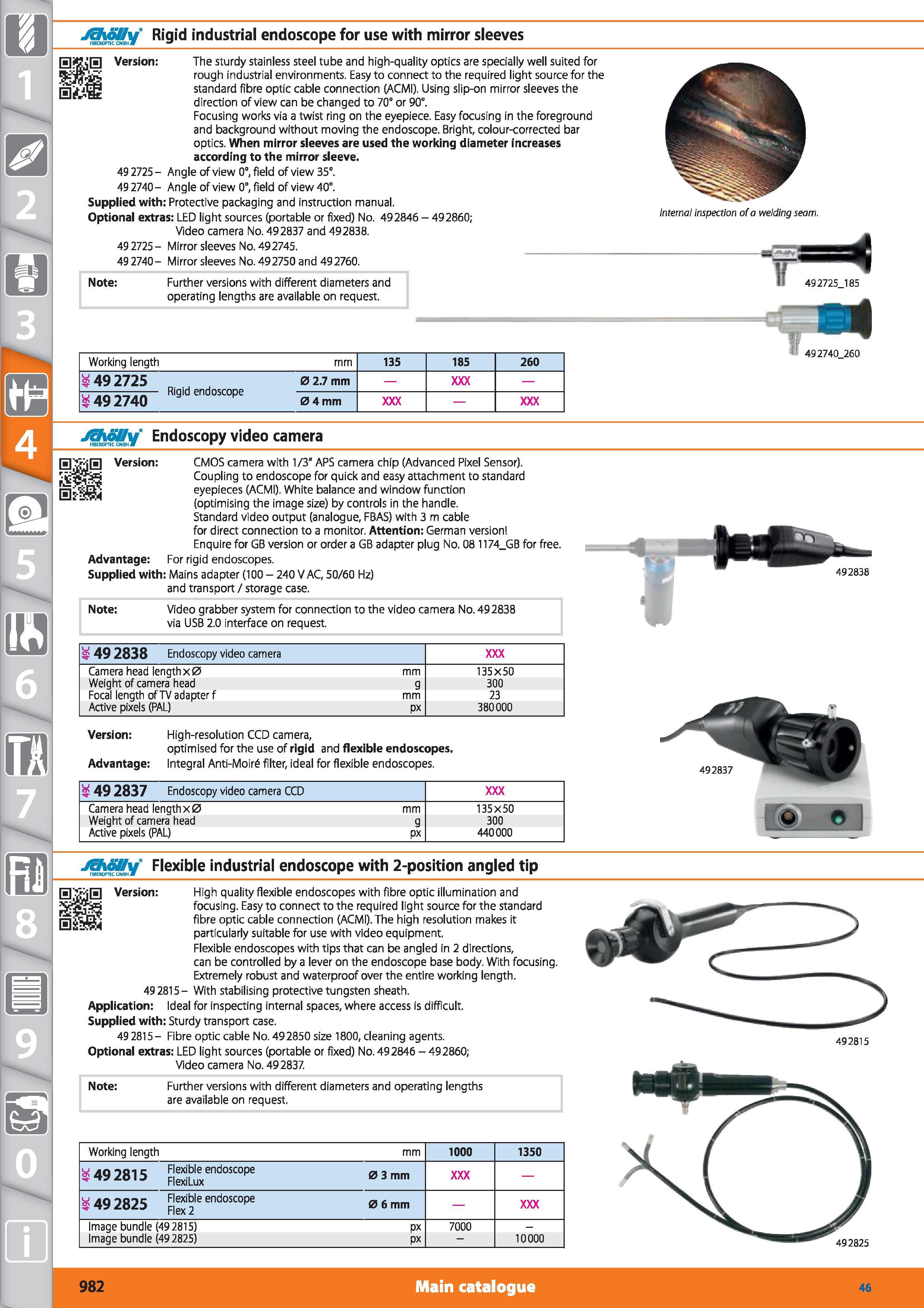

JEhfiUy’ Rigid industrial endoscope for use with mirror sleeves FIBEROPTIC CNBH 1 EjftjH Version The sturdy stainless steel tube and high-quality optics are specially well suited for rough industrial environments. Easy to connect to the required light source for the standard fibre optic cable connection (ACMI). Using slip-on mirror sleeves the direction of view can be changed to 70° or 90°. Focusing works via a twist ring on the eyepiece. Easy focusing in the foreground and background without moving the endoscope. Bright, colour-corrected bar optics. When mirror sleeves are used the working diameter increases according to the mirror sleeve. 49 2725- Angle of view 0°, field of view 35°. 49 2740- Angle of view 0°, field of view 40°. Supplied with Protective packaging and instruction manual. Optional extras LED light sources (portable or fixed) No. 492846 - 492860; Video camera No. 492837 and 492838. 49 2725 - Mirror sleeves No. 492745. 49 2740- Mirror sleeves No. 492750 and 492760. Internal Inspection of a welding seam. Note Further versions with different diameters and operating lengths are available on request. Working length mm 135 185 260 s 49 2725 0 2.7 mm 49 2740 Rigidcnd05c0pc 0 4 mm 492740 260 JEhoUy Endoscopy video camera FIBEROPTIC GNBH Version CMOS camera with 1/3" APS camera chip (Advanced Pixel Sensor). Coupling to endoscope for quick and easy attachment to standard eyepieces (ACMI). White balance and window function (optimising the image size) by controls in the handle. Standard video output (analogue, FBAS) with 3 m cable for direct connection to a monitor. Attention German version Enquire for GB version or order a GB adapter plug No. 08 1174_GB for free. Advantage For rigid endoscopes. Supplied with Mains adapter (100 - 240 V AC, 50/60 Hz) and transport / storage case. Note Video grabber system for connection to the video camera No. 492838 via USB 2.0 interface on request. 492838 49 2838 Endoscopy video camera Camera head length x0 mm 135X50 Weight of camera head g 300 Focal length of TV adapter f mm 23 Active pixels (PAL) px 380000 Version High-resolution CCD camera, optimised for the use of rigid and flexible endoscopes. Advantage Integral Anti-Moir filter, ideal for flexible endoscopes. 49 2837 Endoscopy video camera CCD Camera head length x0 mm 135X50 Weight of camera head g 300 Active pixels (PAL) px 440000 492837 Jthoily Flexible industrial endoscope with 2-position angled tip FIBEROPTIC GNBH M Version High quality flexible endoscopes with fibre optic illumination and focusing. Easy to connect to the required light source for the standard fibre optic cable connection (ACMI). The high resolution makes it particularly suitable for use with video equipment. Flexible endoscopes with tips that can be angled in 2 directions, can be controlled by a lever on the endoscope base body. With focusing. Extremely robust and waterproof over the entire working length. 49 2815- With stabilising protective tungsten sheath. Application Ideal for inspecting internal spaces, where access is difficult. Supplied with Sturdy transport case. 49 2815- Fibre optic cable No. 492850 size 1800, cleaning agents. Optional extras LED light sources (portable or fixed) No. 492846 - 492860; Video camera No. 492837. 492815 Note Further versions with different diameters and operating lengths are available on request. Working length mm 1000 1350 w ao ioi c Flexible endoscope 9 49 2815 F exiLux 0 3 mm 9 49 2825 Fjexible endoscope 0 6 mm Image bundle (492815) px - Image bundle (492825) px - 10000 982 Main catalogue Hoffmann Group 46 492825
