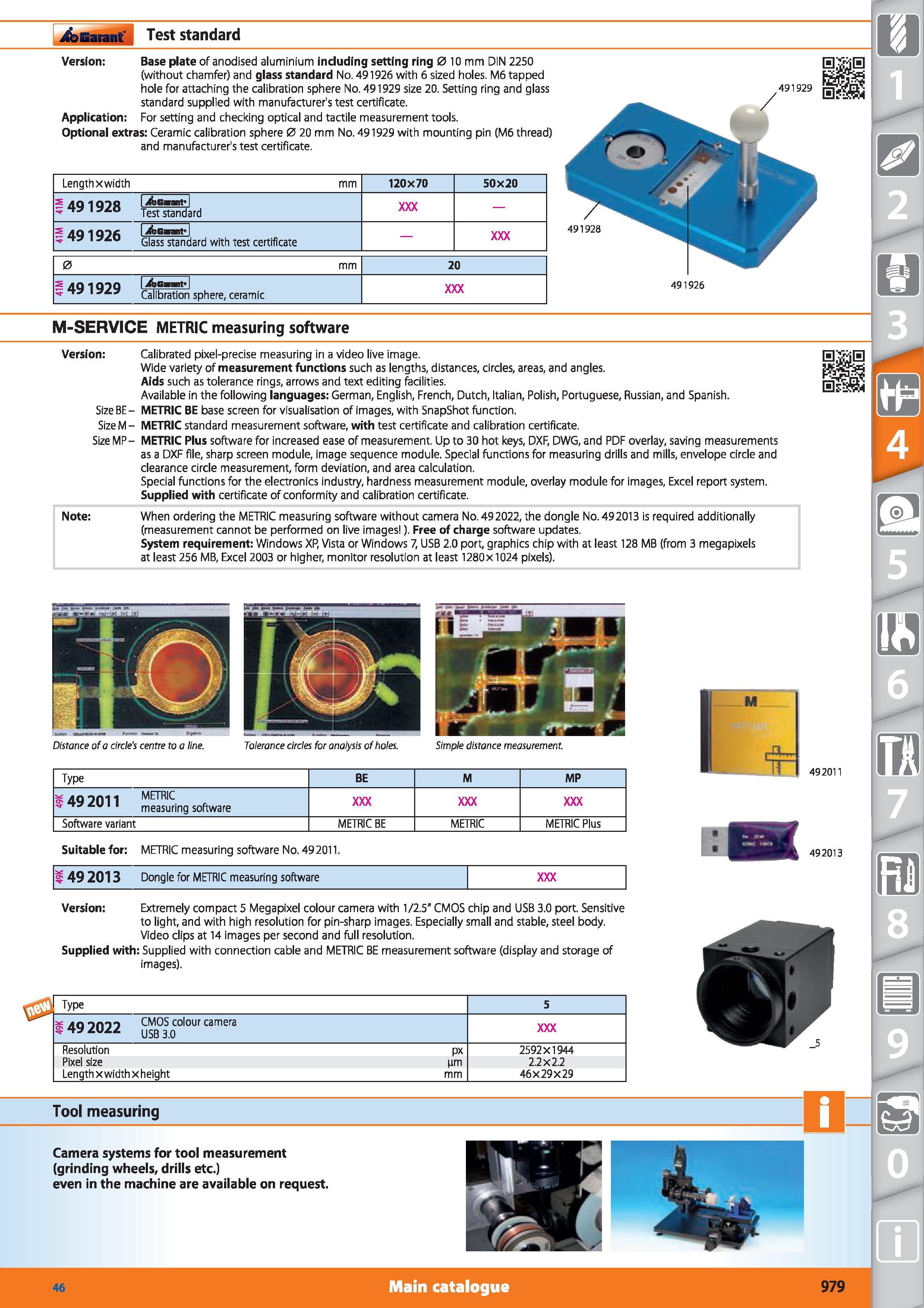

Garant Test standard Version Base plate of anodised aluminium including setting ring 0 10 mm DIN 2250 (without chamfer) and glass standard No. 491926 with 6 sized holes. M6 tapped hole for attaching the calibration sphere No. 491929 size 20. Setting ring and glass standard supplied with manufacturer's test certificate. Application For setting and checking optical and tactile measurement tools. Optional extras Ceramic calibration sphere 0 20 mm No. 491929 with mounting pin (M6 thread) and manufacturer's test certificate. Lengthxwidth mm 120X70 50X20 1491928 (ifeGrait1' Test standard 1491926 (ifeGant8 Glass standard with test certificate 0 mm 20 1491929 j&Gmnt Calibration sphere, ceramic 491928 491926 M-SERVICE METRIC measuring software Version Calibrated pixel-precise measuring in a video live image. Wide variety of measurement functions such as lengths, distances, circles, areas, and angles. Aids such as tolerance rings, arrows and text editing facilities. Available in the following languages German, English, French, Dutch, Italian, Polish, Portuguese, Russian, and Spanish. Size BE- METRIC BE base screen for visualisation of images, with SnapShot function. SizeM- METRIC standard measurement software, with test certificate and calibration certificate. Size MP- METRIC Plus software for increased ease of measurement. Up to 30 hot keys, DXF, DWG, and PDF overlay, saving measurements as a DXF file, sharp screen module, image sequence module. Special functions for measuring drills and mills, envelope circle and clearance circle measurement, form deviation, and area calculation. Special functions for the electronics industry, hardness measurement module, overlay module for images, Excel report system. Supplied with certificate of conformity and calibration certificate. Note When ordering the METRIC measuring software without camera No. 49 2022, the dongle No. 492013 is required additionally (measurement cannot be performed on live images ). Free of charge software updates. System requirement Windows XP, Vista or Windows 7, USB 2.0 port, graphics chip with at least 128 MB (from 3 megapixels at least 256 MB, Excel 2003 or higher, monitor resolution at least 1280x 1024 pixels). i 49 2013 Dongle for METRIC measuring software Version Extremely compact 5 Megapixel colour camera with 1/2.5" CMOS chip and USB 3.0 port. Sensitive to light, and with high resolution for pin-sharp images. Especially small and stable, steel body. Video clips at 14 images per second and full resolution. Supplied with Supplied with connection cable and METRIC BE measurement software (display and storage of images). Type 5 An inii CMOS colour camera 49 2022 USB 30 Resolution px 2592X1944 Pixel size Hm 2.2 x 2.2 Length x width x height mm 46x29x29 492011 METRIC measuring software Software variant METRIC BE METRIC METRIC Plus Suitable for METRIC measuring software No. 492011. 492013 Tool measuring Camera systems for tool measurement (grinding wheels, drills etc.) even in the machine are available on request. Distance of a circie's centre to a line. Tolerance circles for analysis of holes. Simple distance measurement 492011 Main catalogue Hoffmann Group 46 979
