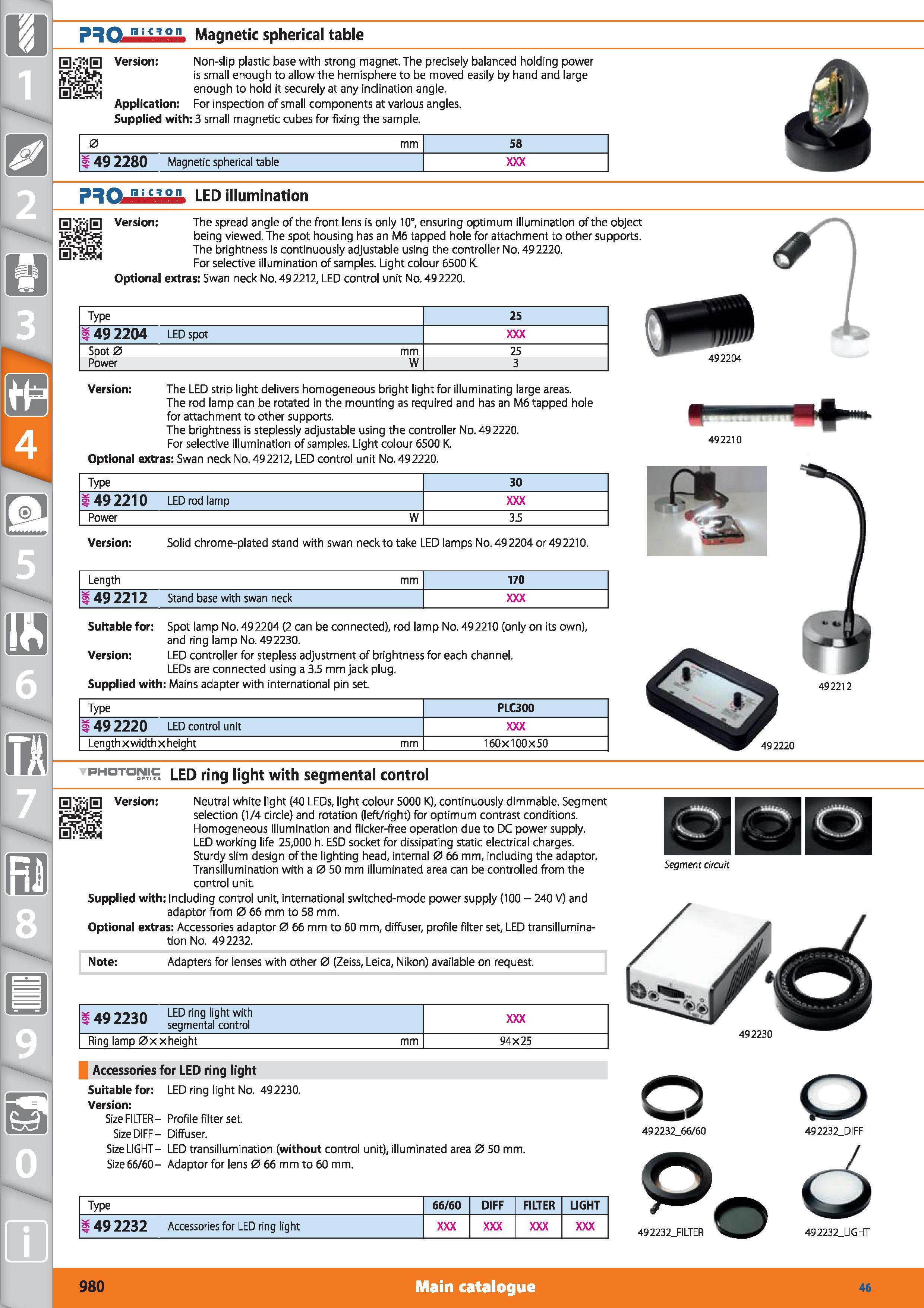

P GUbkbdb Magnetic spherical table Version Non-slip plastic base with strong magnet. The precisely balanced holding power is small enough to allow the hemisphere to be moved easily by hand and large enough to hold it securely at any inclination angle. Application For inspection of small components at various angles. Supplied with 3 small magnetic cubes for fixing the sample. 0 mm 58 49 2280 Magnetic spherical table niidon LED illumination 0 Version The spread angle of the front lens is only 10°, ensuring optimum illumination of the object being viewed. The spot housing has an M6 tapped hole for attachment to other supports. The brightness is continuously adjustable using the controller No. 492220. For selective illumination of samples. Light colour 6500 K. Optional extras Swan neck No. 492212, LED control unit No. 492220. Type 25 49 2204 LED spot Spot 0 mm 25 Power W 3 Version The LED strip light delivers homogeneous bright light for illuminating large areas. The rod lamp can be rotated in the mounting as required and has an M6 tapped hole for attachment to other supports. The brightness is steplessly adjustable using the controller No. 492220. For selective illumination of samples. Light colour 6500 K. Optional extras Swan neck No. 492212, LED control unit No. 492220. 492204 492210 Type 30 1492210 LED rod lamp Power W 3.5 Version Solid chrome-plated stand with swan neck to take LED lamps No. 492204 or 492210. Length mm 170 1492212 Stand base with swan neck Suitable for Spot lamp No. 492204 (2 can be connected), rod lamp No. 492210 (only on its own), and ring lamp No. 492230. Version LED controller for stepless adjustment of brightness for each channel. LEDs are connected using a 3.5 mm jack plug. Supplied with Mains adapter with international pin set. Type PLC300 49 2220 LED control unit Length x widthx height mm 160X100X50 492212 492220 1 PHOTONIC LED ring light with segmental control Version Neutral white light (40 LEDs, light colour 5000 K), continuously dimmable. Segment selection (1/4 circle) and rotation (left/right) for optimum contrast conditions. Homogeneous illumination and flicker-free operation due to DC power supply. LED working life 25,000 h. ESD socket for dissipating static electrical charges. Sturdy slim design of the lighting head, internal 0 66 mm, including the adaptor. Transillumination with a 0 50 mm illuminated area can be controlled from the control unit. Supplied with Including control unit, international switched-mode power supply (100 - 240 V) and adaptor from 0 66 mm to 58 mm. Optional extras Accessories adaptor 0 66 mm to 60 mm, diffuser, profile filter set, LED transillumination No. 492232. OI o Segment circuit Note Adapters for lenses with other 0 (Zeiss, Leica, Nikon) available on request. 49 2230 LED ring light with segmental control Ring lamp 0xxheight mm 94x25 Accessories for LED ring light Suitable for LED ring light No. 492230. Version Size FILTER- Profile filter set. Size DIFF Diffuser. Size LIGHT - LED transillumination (without control unit), illuminated area 0 50 mm. Size 66/60- Adaptor for lens 0 66 mm to 60 mm. Type 66/60 DIFF FILTER LIGHT 49 2232 Accessories for LED ring light 492232_66/60 492232_DIFF 492232_FILTER 492232_UGHT 980 Main catalogue Hoffmann Group 46
