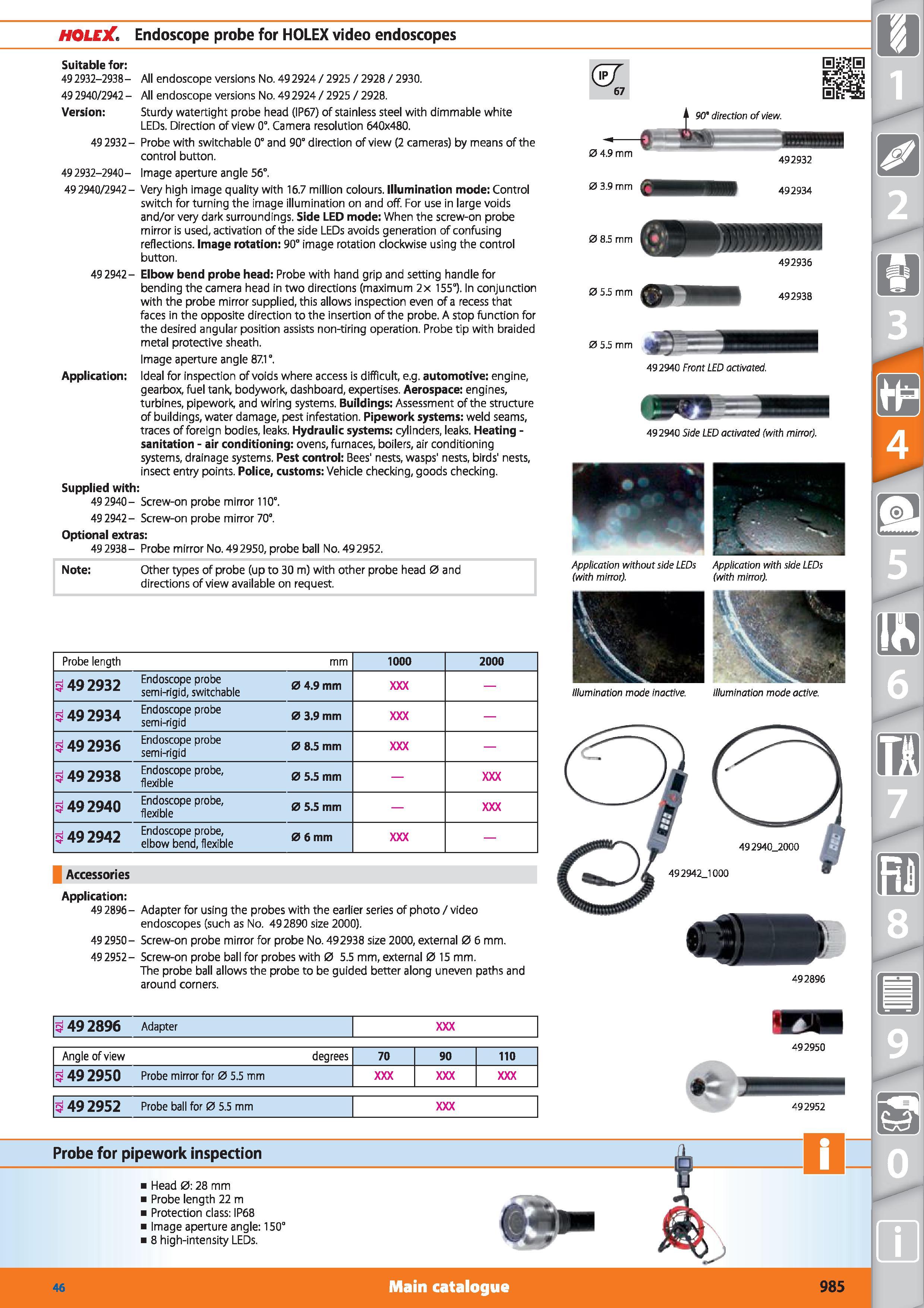

HOLEX Endoscope probe for HOLEX video endoscopes Suitable for 492932-2938- All endoscope versions No. 492924 / 2925 / 2928 / 2930. 49 2940/2942 - All endoscope versions No. 49 2924 / 2925 / 2928. Version Sturdy watertight probe head (IP67) of stainless steel with dimmable white LEDs. Direction of view 0°. Camera resolution 640x480. 49 2932- Probe with switchable 0° and 90° direction of view (2 cameras) by means of the control button. 492932-2940- Image aperture angle 56°. 492940/2942- Very high image quality with 16.7 million colours. Illumination mode Control switch for turning the image illumination on and off. For use in large voids and/or very dark surroundings. Side LED mode When the screw-on probe mirror is used, activation of the side LEDs avoids generation of confusing reflections. Image rotation 90° image rotation clockwise using the control button. 49 2942- Elbow bend probe head Probe with hand grip and setting handle for bending the camera head in two directions (maximum 2x 155°). In conjunction with the probe mirror supplied, this allows inspection even of a recess that faces in the opposite direction to the insertion of the probe. A stop function for the desired angular position assists non-tiring operation. Probe tip with braided metal protective sheath. Image aperture angle 87.1°. Application Ideal for inspection of voids where access is difficult, e.g. automotive engine, gearbox, fuel tank, bodywork, dashboard, expertises. Aerospace engines, turbines, pipework, and wiring systems. Buildings Assessment of the structure of buildings, water damage, pest infestation. Pipework systems weld seams, traces of foreign bodies, leaks. Hydraulic systems cylinders, leaks. Heating -sanitation - air conditioning ovens, furnaces, boilers, air conditioning systems, drainage systems. Pest control Bees' nests, wasps' nests, birds' nests, insect entry points. Police, customs Vehicle checking, goods checking. Supplied with 492940- Screw-on probe mirror 110°. 49 2942- Screw-on probe mirror 70°. Optional extras 49 2938- Probe mirror No. 492950, probe ball No. 492952. Note Other types of probe (up to 30 m) with other probe head 0 and directions of view available on request. Probe length mm 1000 2000 3 49 2932 Endoscope probe semi-rigid, switchable 0 4.9 mm 5 49 2934 Endoscope probe semi-rigid 0 3.9 mm s 49 2936 Endoscope probe semi-rigid 0 8.5 mm 3 49 2938 Endoscope probe, flexible 0 5.5 mm 3 49 2940 Endoscope probe, flexible 0 5.5 mm 5 492942 Endoscope probe, elbow bend, flexible 0 6 mm Accessories Application 49 2896 - Adapter for using the probes with the earlier series of photo / video endoscopes (such as No. 492890 size 2000). 49 2950- Screw-on probe mirror for probe No. 492938 size 2000, external 0 6 mm. 49 2952- Screw-on probe ball for probes with 0 5.5 mm, external 0 15 mm. The probe ball allows the probe to be guided better along uneven paths and around corners. 3 49 2896 Adapter Angle of view degrees 70 90 110 Q 49 2950 Probe mirror for 0 5.5 mm a 49 2952 Probe ball for 0 5.5 mm Probe for pipework inspection i Flead 0:28 mm i Probe length 22 m i Protection class IP68 i Image aperture angle 150° i 8 high-intensity LEDs. 46 Main catalogue
