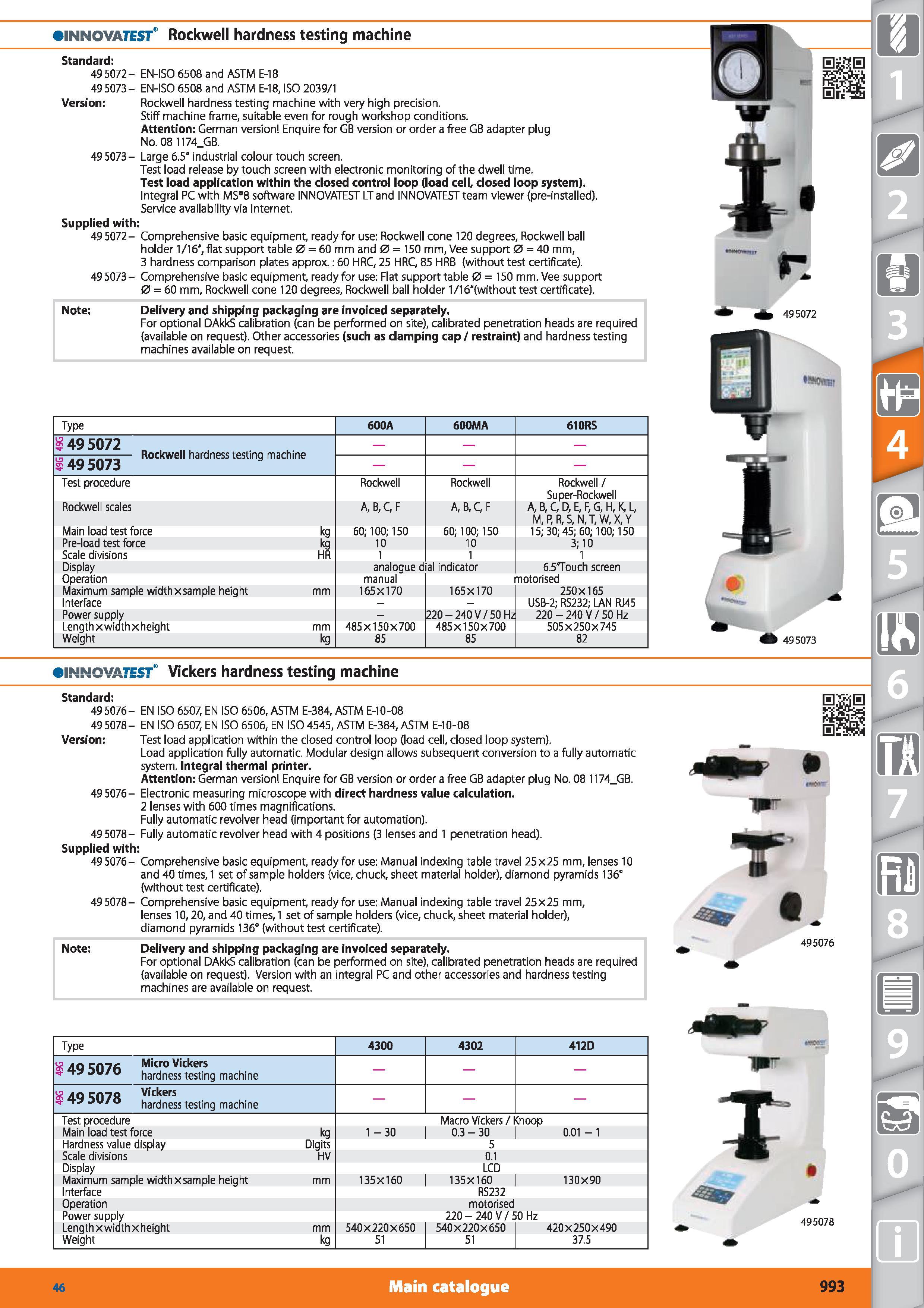

INNOVATES "' Rockwell hardness testing machine Standard 49 5072- EN-ISO 6508 and ASTM E-18 49 5073- EN-ISO 6508 and ASTM E-18, ISO 2039/1 Version Rockwell hardness testing machine with very high precision. Stiff machine frame, suitable even for rough workshop conditions. Attention German version Enquire for GB version or order a free GB adapter plug No. 08 1174_GB. 49 5073 - Large 6.5“ industrial colour touch screen. Test load release by touch screen with electronic monitoring of the dwell time. Test load application within the closed control loop (load cell, closed loop system). Integral PC with MS 8 software INNOVATEST LT and INNOVATEST team viewer (pre-installed). Service availability via Internet. Supplied with 49 5072- Comprehensive basic equipment, ready for use Rockwell cone 120 degrees, Rockwell ball holder 1/16", flat support table 0 60 mm and 0 150 mm, Vee support 0 40 mm, 3 hardness comparison plates approx. 60 HRC, 25 HRC, 85 HRB (without test certificate). 49 5073- Comprehensive basic equipment, ready for use Flat support table 0 150 mm. Vee support 0 60 mm, Rockwell cone 120 degrees, Rockwell ball holder 1/16“(without test certificate). Note Delivery and shipping packaging are invoiced separately. For optional DAkkS calibration (can be performed on site), calibrated penetration heads are required (available on request). Other accessories (such as clamping cap / restraint) and hardness testing machines available on request. Type 600A 600MA 610RS S 49 5072 3 49 5073 Test procedure Rockwell Rockwell Rockwell / Super-Rockwell Rockwell scales A, B, C, F A, B, C, F A, B, C, D, E, F, G, H, K, L, M, P, R, S, N, T, W, X, Y Main load test force kq 60; 100; 150 60; 100; 150 15; 30; 45; 60; 100; 150 Pre-load test force kq 10 10 3; 10 Scale divisions HR 1 1 1 Display analogue dial indicator 6.5“Touch screen Operation manual motorised Maximum sample widthxsample height mm 165x170 165X170 250x165 Interface USB-2; RS232; LAN RJ45 Power supply Length x width x height 220 - 240 V/50 Hz 220 -240 V/50 Hz mm 485X150X700 485X150X700 505 X 250X 745 Weight kg 85 85 82 INNOVATEST’ Vickers hardness testing machine Standard 49 5076- EN ISO 6507, EN ISO 6506, ASTM E-384, ASTM E-10-08 49 5078- EN ISO 6507, EN ISO 6506, EN ISO 4545, ASTM E-384, ASTM E-10-08 Version Test load application within the closed control loop (load cell, closed loop system). Load application fully automatic. Modular design allows subsequent conversion to a fully automatic system. Integral thermal printer. Attention German version Enquire for GB version or order a free GB adapter plug No. 08 1174_GB. 49 5076- Electronic measuring microscope with direct hardness value calculation. 2 lenses with 600 times magnifications. Fully automatic revolver head (important for automation). 49 5078- Fully automatic revolver head with 4 positions (3 lenses and 1 penetration head). Supplied with 49 5076- Comprehensive basic equipment, ready for use Manual indexing table travel 25x25 mm, lenses 10 and 40 times, 1 set of sample holders (vice, chuck, sheet material holder), diamond pyramids 136° (without test certificate). 49 5078- Comprehensive basic equipment, ready for use Manual indexing table travel 25x25 mm, lenses 10,20, and 40 times, 1 set of sample holders (vice, chuck, sheet material holder), diamond pyramids 136° (without test certificate). T Note Delivery and shipping packaging are invoiced separately. For optional DAkkS calibration (can be performed on site), calibrated penetration heads are required (available on request). Version with an integral PC and other accessories and hardness testing machines are available on request. 495076 Type 49 5076 Micro Vickers hardness testing machine 49 5078 Vickers hardness testing machine Test procedure Main load test force Hardness value display Scale divisions Display Maximum sample widthxsample height Interface Operation Power supply Length xwidthx height Weight kg Digits HV 4300 4302 412D 1 -30 135X160 540X220X650 51 Macro Vickers / Knoop 0.3 - 30 5 0.1 LCD 135X160 RS232 motorised 220 -240 V/50 Hz 540X220X650 I 51 0.01 - 1 130X90 420X250X490 37.5 495078 Main catalogue Hoffmann Group 46 993
