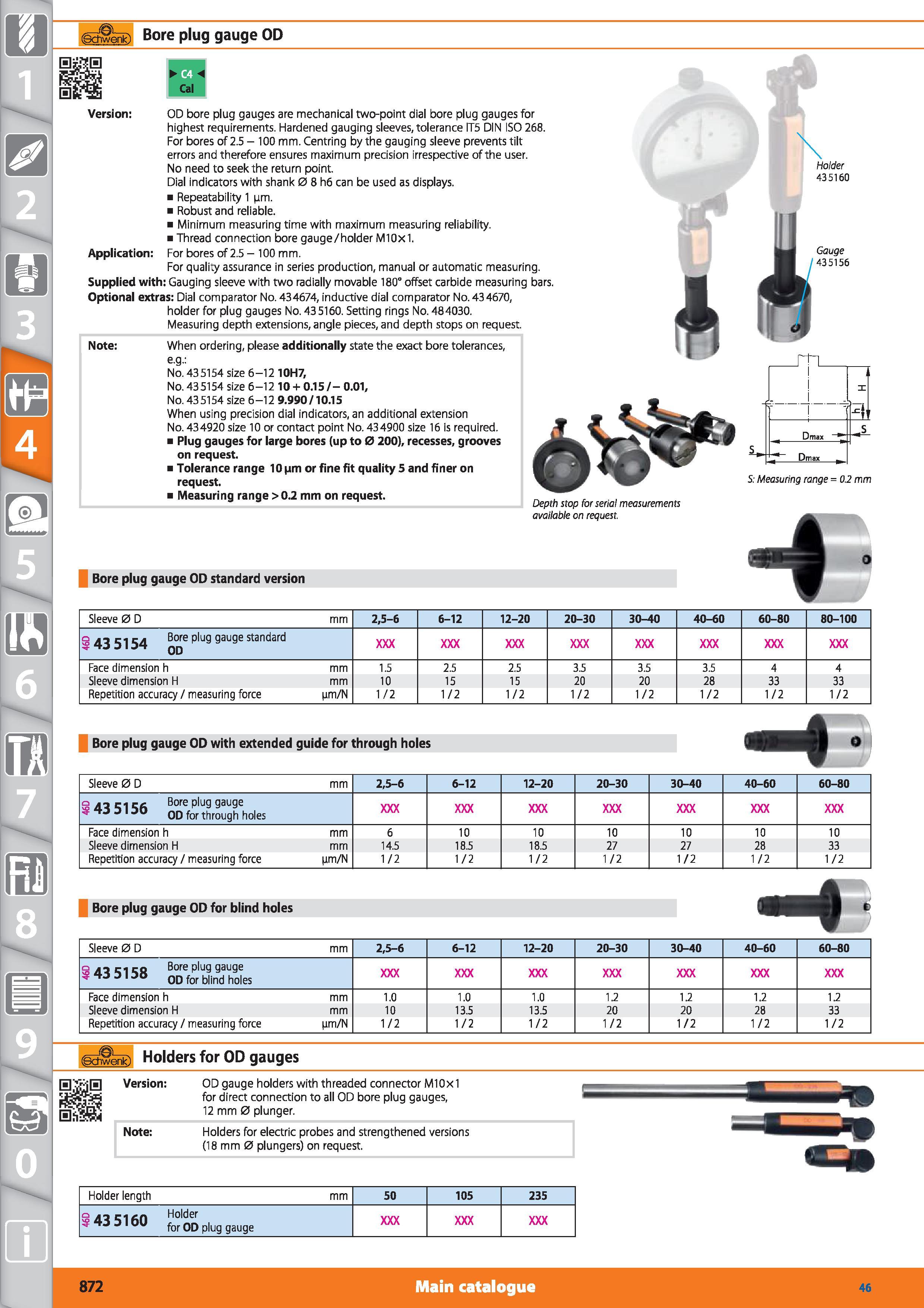

872 Каталог HOFFMANN GROUP 2015 Инструмент режущий слесарный измерительный Стр.872

Каталог HOFFMANN GROUP 2015 Tools Инструменты Ver 46 Стр. 872 0872 ENG Lab2u

1 Bore plug gauge OD (Ul to Version OD bore plug gauges are mechanical two-point dial bore plug gauges for highest requirements. Hardened gauging sleeves, tolerance IT5 DIN ISO 268. For bores of 2.5 - 100 mm. Centring by the gauging sleeve prevents tilt errors and therefore ensures maximum precision irrespective of the user. No need to seek the return point. Dial indicators with shank 0 8 h6 can be used as displays. Repeatability 1 nm. Robust and reliable. Minimum measuring time with maximum measuring reliability. Thread connection bore gauge/holder MIOxl. For bores of 2.5 - 100 mm. For quality assurance in series production, manual or automatic measuring. Supplied with Gauging sleeve with two radially movable 180° offset carbide measuring bars Optional extras Dial comparator No. 434674, inductive dial comparator No. 434670, holder for plug gauges No. 435160. Setting rings No. 484030. Measuring depth extensions, angle pieces, and depth stops on request. Application Note When ordering, please additionally state the exact bore tolerances, e.g. No. 435154 size 6-12 10H7, No. 435154 size 6-12 10 + 0.15/- 0.01, No. 435154 size 6-12 9.990/10.15 When using precision dial indicators, an additional extension No. 434920 size 10 or contact point No. 434900 size 16 is required. Plug gauges for large bores (up to 0 200), recesses, grooves on request. Tolerance range 10 nm or fine fit quality 5 and finer on request. Measuring range >0.2 mm on request. S Measuring range 0.2 mm Depth stop for serial measurements available on request. Bore plug gauge OD standard version Sleeve 0 D mm 2,5-6 6-12 12-20 20-30 30-40 40-60 60-80 80-100 g 43 5154 Bore plug gauge standard Face dimension h mm 1.5 2.5 2.5 3.5 3.5 3.5 4 4 Sleeve dimension FI mm 10 15 15 20 20 28 33 33 Repetition accuracy / measuring force nm/N 1/2 1/2 1/2 1/2 1/2 1/2 1/2 1/2 Bore plug gauge OD with extended guide for through holes Sleeve 0 D mm 2,5-6 6-12 12-20 20-30 30-40 40-60 60-80 S 43 51 5fi Bore P u9 9au9e 3 30 gp fQr trough holes Face dimension h mm 6 10 10 10 10 10 10 Sleeve dimension FI mm 14.5 18.5 18.5 27 27 28 33 Repetition accuracy / measuring force (im/N 1/2 1/2 1/2 1/2 1/2 1/2 1/2 Bore plug gauge OD for blind holes Sleeve 0 D mm 2,5-6 6-12 12-20 20-30 30-40 40-60 60-80 S 43 515R Bore plug gauge 3 3 130 0D for bNnd h0 K Face dimension h mm 1.0 1.0 1.0 1.2 1.2 1.2 1.2 Sleeve dimension FI mm 10 13.5 13.5 20 20 28 33 Repetition accuracy / measuring force nm/N 1/2 1/2 1/2 1/2 1/2 1/2 1/2 Holders for OD gauges OD gauge holders with threaded connector M10x1 for direct connection to all OD bore plug gauges, 12 mm 0 plunger. Note Holders for electric probes and strengthened versions (18 mm 0 plungers) on request. Holder length mm 50 105 235 143 5160 Holder for OD plug gauge 872 Main catalogue Hoffmann Group 46
