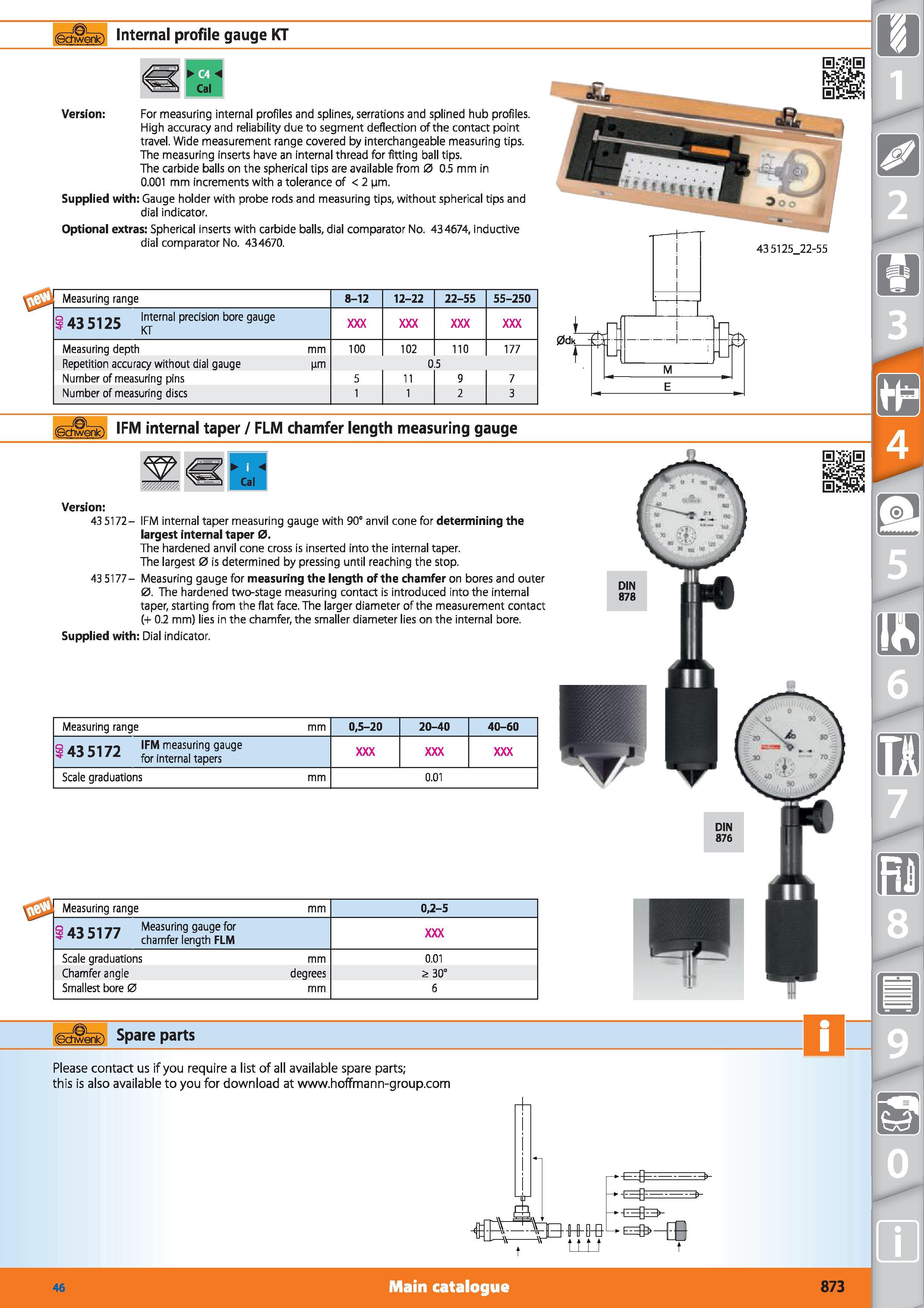

Internal profile gauge KT Version For measuring internal profiles and splines, serrations and splined hub profiles. High accuracy and reliability due to segment deflection of the contact point travel. Wide measurement range covered by interchangeable measuring tips. The measuring inserts have an internal thread for fitting ball tips. The carbide balls on the spherical tips are available from 0 0.5 mm in 0.001 mm increments with a tolerance of < 2 jm. Supplied with Gauge holder with probe rods and measuring tips, without spherical tips and dial indicator. Optional extras Spherical inserts with carbide balls, dial comparator No. 434674, inductive dial comparator No. 434670. Measuring range 8-12 12-22 22-55 55-250 q 25 Internal precision bore gauge Measuring depth mm 100 102 110 177 Repetition accuracy without dial gauge (Jim 0.5 Number of measuring pins 5 11 9 7 Number of measuring discs 1 1 2 3 IFM internal taper / FLM chamfer length measuring gauge lr Cal Version 43 5172- IFM internal taper measuring gauge with 90° anvil cone for determining the largest internal taper 0. The hardened anvil cone cross is inserted into the internal taper. The largest 0 is determined by pressing until reaching the stop. 43 5177- Measuring gauge for measuring the length of the chamfer on bores and outer 0. The hardened two-stage measuring contact is introduced into the internal taper, starting from the flat face. The larger diameter of the measurement contact (+ 0.2 mm) lies in the chamfer, the smaller diameter lies on the internal bore. Supplied with Dial indicator. Measuring range mm 0,5-20 20-40 40-60 S 43 ei 7 IFM measuring gauge ’ >3 for internal tapers Scale graduations mm 0.01 Measuring range mm 0,2-5 S A3 5177 Measuring gauge for chamfer length FLM Scale graduations mm 0.01 Chamfer angle degrees ;> 30° Smallest bore 0 mm 6 Spare parts Please contact us if you require a list of all available spare parts; this is also available to you for download at rh -Ej Z3- .-E - tiU t 873 Main catalogue
