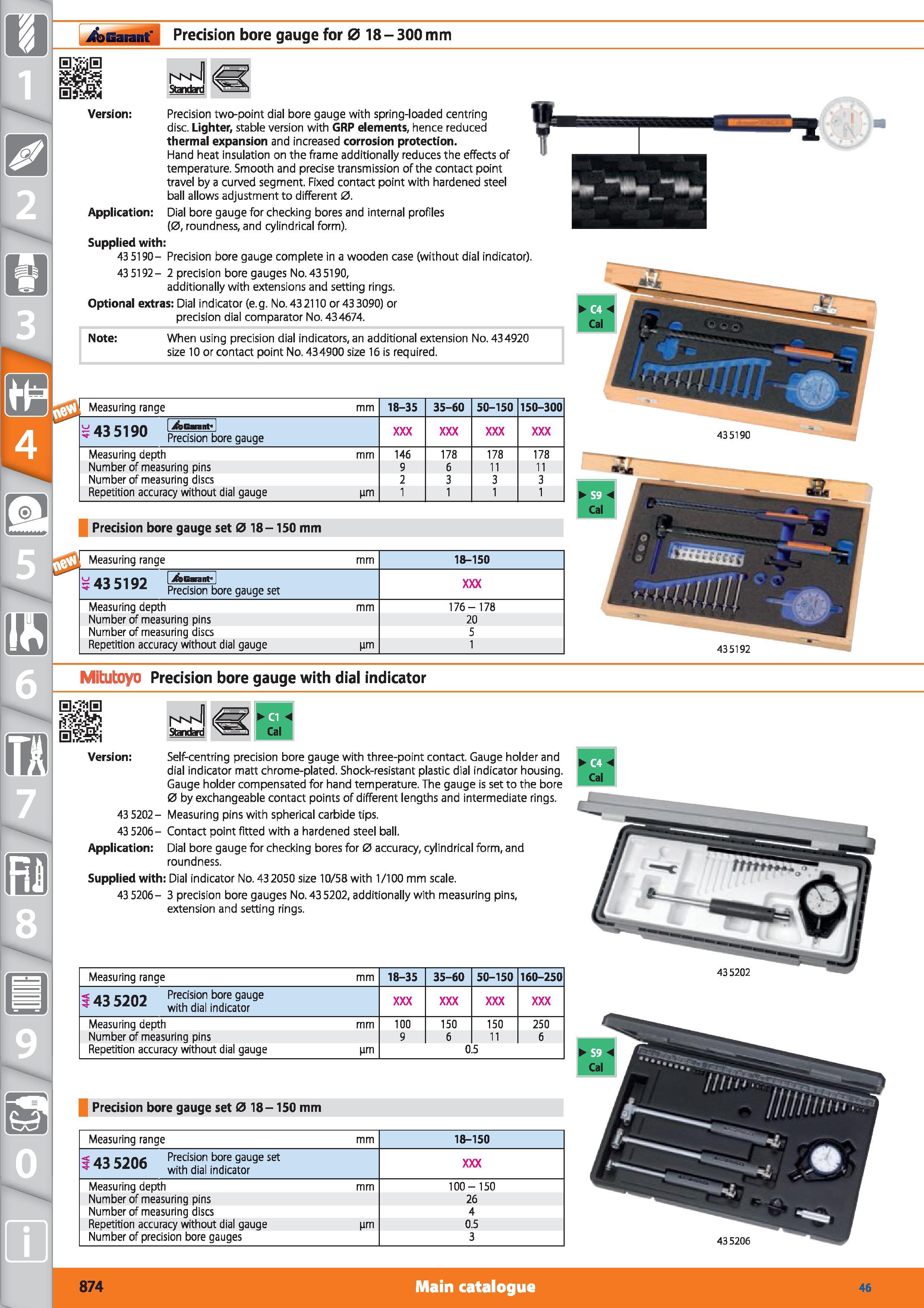

Garant Precision bore gauge for 0 18 - 300 mm Standard Version Precision two-point dial bore gauge with spring-loaded centring disc. Lighter, stable version with GRP elements, hence reduced thermal expansion and increased corrosion protection. Hand heat insulation on the frame additionally reduces the effects of temperature. Smooth and precise transmission of the contact point travel by a curved segment. Fixed contact point with hardened steel ball allows adjustment to different 0. Application Dial bore gauge for checking bores and internal profiles (0, roundness, and cylindrical form). Supplied with 43 5190- Precision bore gauge complete in a wooden case (without dial indicator), 43 5192 - 2 precision bore gauges No. 43 5190, additionally with extensions and setting rings. Optional extras Dial indicator (e.g. No. 432110 or 433090) or precision dial comparator No. 434674. Note When using precision dial indicators, an additional extension No. 434920 size 10 or contact point No. 434900 size 16 is required. Measuring range mm 18-35 35-60 50-150 150-300 -43 51Q0 AGmnf Precision bore gauge Measuring depth mm 146 178 178 178 Number of measuring pins 9 6 11 11 Number of measuring discs 2 3 3 3 Repetition accuracy without dial gauge Him 1 435190 Precision bore gauge set 0 18-150 mm Measuring range mm 18-150 43 5192 Acmnt' Precision bore gauge set Measuring depth mm 176-178 Number of measuring pins 20 Number of measuring discs 5 Repetition accuracy without dial gauge nm 1 435192 Mitutoyo Precision bore gauge with dial indicator vmJ Standard Cal Version Self-centring precision bore gauge with three-point contact. Gauge holder and dial indicator matt chrome-plated. Shock-resistant plastic dial indicator housing. Gauge holder compensated for hand temperature. The gauge is set to the bore 0 by exchangeable contact points of different lengths and intermediate rings. 43 5202- Measuring pins with spherical carbide tips. 43 5206- Contact point fitted with a hardened steel ball. Application Dial bore gauge for checking bores for 0 accuracy, cylindrical form, and roundness. Supplied with Dial indicator No. 432050 size 10/58 with 1/100 mm scale. 43 5206- 3 precision bore gauges No. 43 5202, additionally with measuring pins, extension and setting rings. Measuring range mm 18-35 35-60 50-150 160-250 < cjn-j Precision bore gauge 5 3 wjth dja indicator Measuring depth mm 100 150 150 250 Number of measuring pins 9 6 11 6 Repetition accuracy without dial gauge Hm 0.5 Precision bore gauge set 0 18-150 mm Measuring range mm 18-150 < j) onft Precision bore gauge set 5 3 3ZUO wjth dia inc icator Measuring depth mm 100-150 Number of measuring pins 26 Number of measuring discs 4 Repetition accuracy without dial gauge Hm 0.5 Number of precision bore gauges 3 435202 435206 874 Main catalogue Hoffmann Group 46
