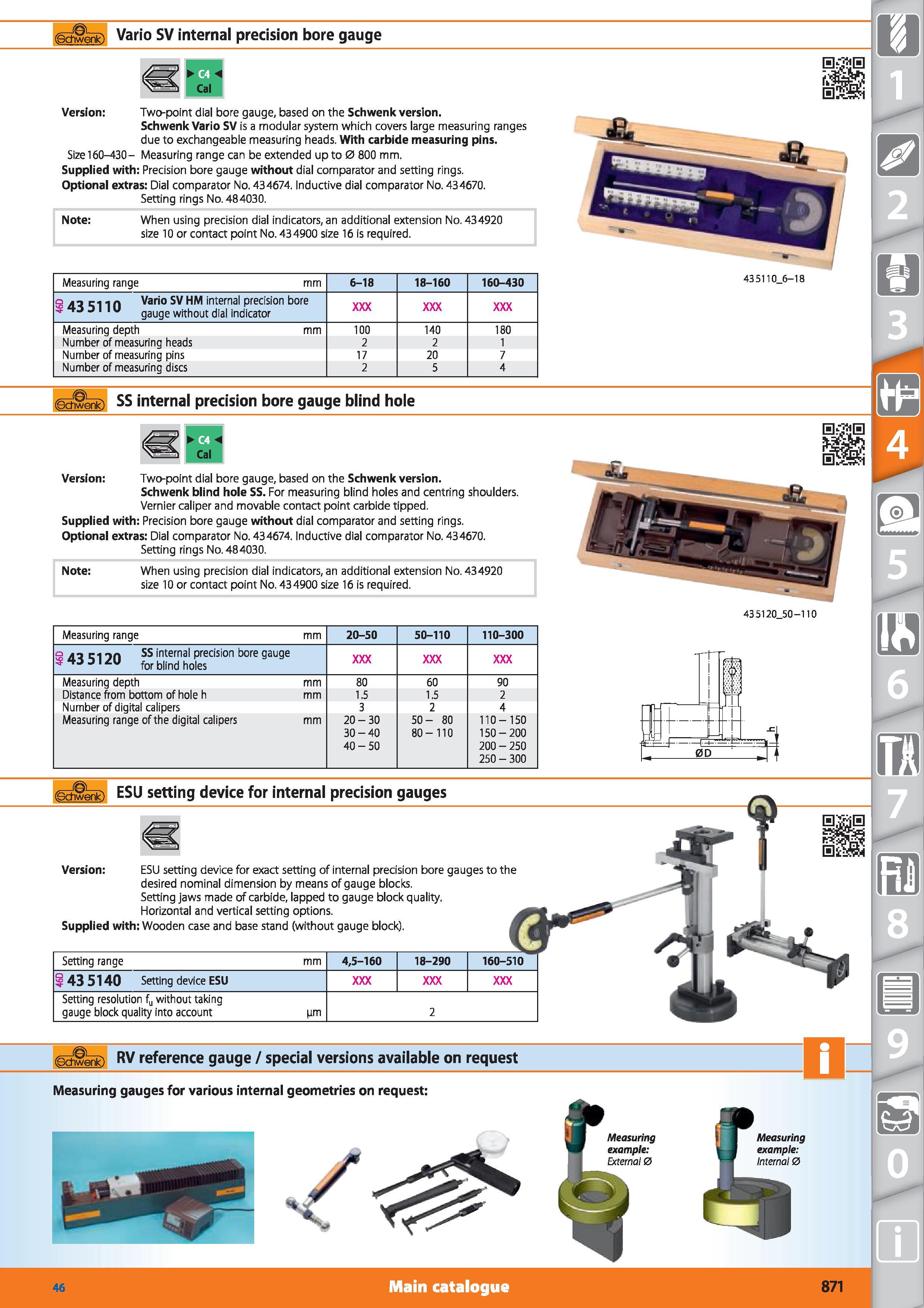

Vario SV internal precision bore gauge Version Two-point dial bore gauge, based on the Schwenk version. Schwenk Vario SV is a modular system which covers large measuring ranges due to exchangeable measuring heads. With carbide measuring pins. Size 160-430- Measuring range can be extended up to 0 800 mm. Supplied with Precision bore gauge without dial comparator and setting rings. Optional extras Dial comparator No. 434674. Inductive dial comparator No. 434670. Setting rings No. 484030. Note When using precision dial indicators, an additional extension No. 434920 size 10 or contact point No. 434900 size 16 is required. Measuring range mm 6-18 18-160 160-430 o .j / Vario SV HM internal precision bore gauge without dial indicator Measuring depth mm 100 140 180 Number of measuring heads 2 2 1 Number of measuring pins 17 20 7 Number of measuring discs 2 5 4 SS internal precision bore gauge blind hole Version Two-point dial bore gauge, based on the Schwenk version. Schwenk blind hole SS. For measuring blind holes and centring shoulders. Vernier caliper and movable contact point carbide tipped. Supplied with Precision bore gauge without dial comparator and setting rings. Optional extras Dial comparator No. 434674. Inductive dial comparator No. 434670. Setting rings No. 484030. Note When using precision dial indicators, an additional extension No. 434920 size 10 or contact point No. 434900 size 16 is required. 43 5110 _6 18 435120_50-110 Measuring range mm 20-50 50-110 110-300 o Al 51 SS internal precision bore gauge for blind holes Measuring depth mm 80 60 90 Distance from bottom of hole h mm 1.5 1.5 2 Number of digital calipers 3 2 4 Measuring range of the digital calipers mm 20-30 30-40 40-50 50- 80 80-110 110-150 150-200 200 - 250 250 - 300 RV reference gauge / special versions available on request Version ESU setting device for exact setting of internal precision bore gauges to the desired nominal dimension by means of gauge blocks. Setting jaws made of carbide, lapped to gauge block quality. Horizontal and vertical setting options. Supplied with Wooden case and base stand (without gauge block). Setting range mm 4,5-160 18-290 160-510 43 5140 Setting device ESU Setting resolution fu without taking gauge block quality into account nm 2 Measuring gauges for various internal geometries on request Measuring example External 0 Measuring example Internal 0 ESU setting device for internal precision gauges Main catalogue Hoffmann Group 46 871
