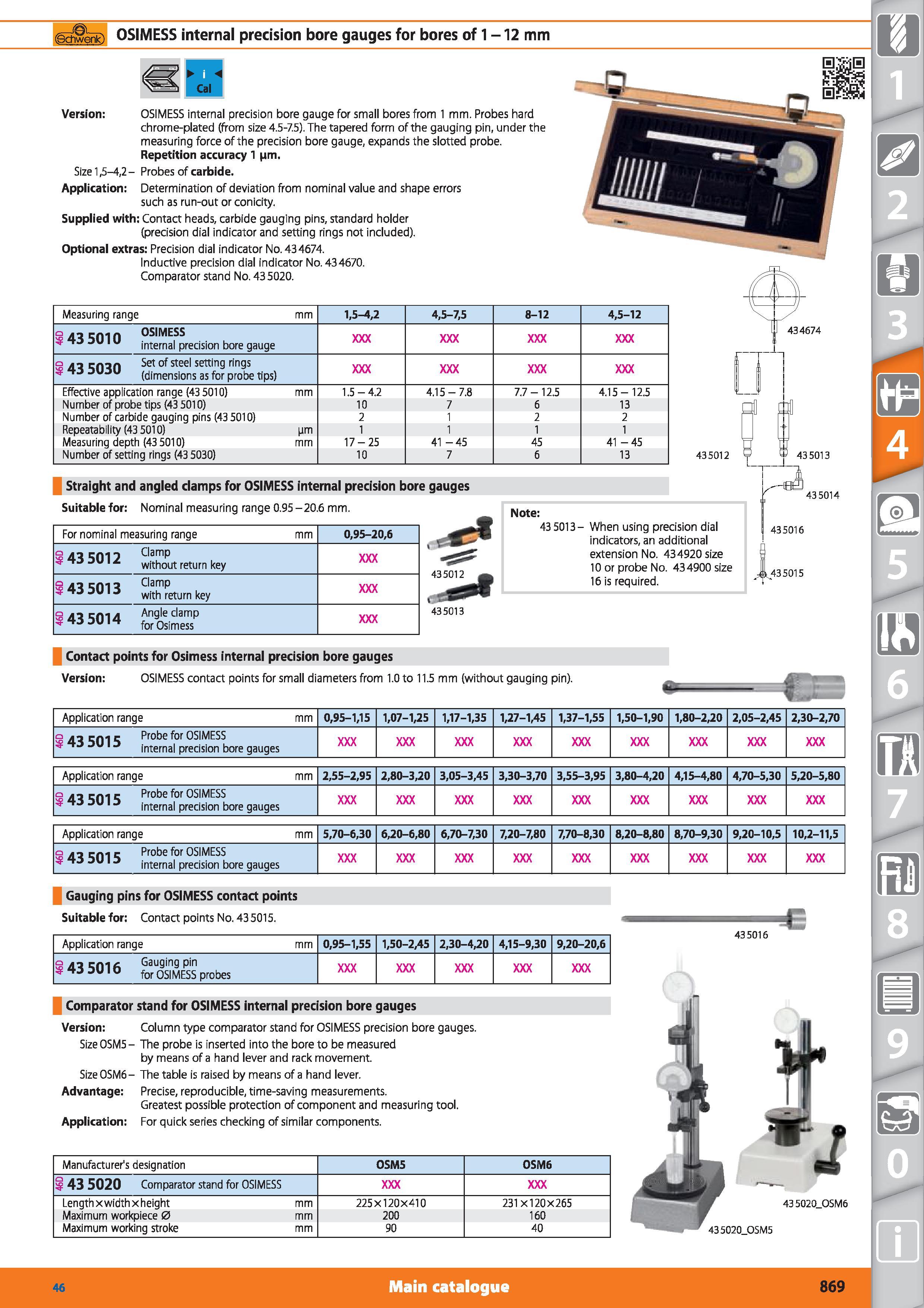

OSIMESS internal precision bore gauges for bores of 1 -12 mm Version OSIMESS internal precision bore gauge for small bores from 1 mm. Probes hard chrome-plated (from size 4.5-Z5). The tapered form of the gauging pin, under the measuring force of the precision bore gauge, expands the slotted probe. Repetition accuracy 1 Mm, Size 1,5-4,2 - Probes of carbide. Application Determination of deviation from nominal value and shape errors such as run-out or conicity. Supplied with Contact heads, carbide gauging pins, standard holder (precision dial indicator and setting rings not included). Optional extras Precision dial indicator No. 43 4674. Inductive precision dial indicator No. 434670. Comparator stand No. 435020. Measuring range mm 1,5-4,2 4,5-7,5 8-12 4,5-12 43 5010 0SIMESS internal precision bore gauge q ij cnon Set of steel setting rings 13 jvuu (dimensions as for probe tips) Effective application range (43 5010) mm 1.5-4.2 4.15-7.8 7.7-12.5 4.15-12.5 Number of probe tips (43 5010) 10 7 6 13 Number of carbide gauging pins (43 5010) 2 1 2 2 Repeatability (43 5010) (jm 1 Measuring depth (43 5010) mm 17-25 41 -45 45 41 -45 Number of setting rings (43 5030) 10 7 6 13 435012 Straight and angled clamps for OSIMESS internal precision bore gauges Suitable for Nominal measuring range 0.95 - 20.6 mm. For nominal measuring range mm 0,95-20,6 43 5012 Clamp without return key 43 5013 Clamp JV 1J with return key S 43 5014 Angle damp for0simess 435012 Note 43 5013- When using precision dial indicators, an additional extension No. 434920 size 10 or probe No. 434900 size 16 is required. k.435015 435013 Contact points for Osimess internal precision bore gauges Version OSIMESS contact points for small diameters from 1.0 to 11.5 mm (without gauging pin). Application range mm 0,95-1,15 1,07-1,25 1,17-1,35 1,27-1,45 1,37-1,55 1,50-1,90 1,80-2,20 2,05-2,45 2,30-2,70 43 5015 Probe for OSIMESS jU 3 internal precision bore gauges Application range mm 2,55-2,95 2,80-3,20 3,05-3,45 3,30-3,70 3,55-3,95 3,80-4,20 4,15-4,80 4,70-5,30 5,20-5,80 q 43 5015 Probe for OSIMESS t-j ju 3 internal precision bore gauges Application range mm 5,70-6,30 6,20-6,80 6,70-7,30 7,20-7,80 7,70-8,30 8,20-8,80 8,70-9,30 9,20-10,5 10,2-11,5 q 43 5015 Probe for OSIMESS t-j JU 3 internal precision bore gauges Gauging pins for OSIMESS contact points Suitable for Contact points No. 43 5015. Application range mm 0,95-1,55 1,50-2/45 2,30-4,20 4,15-9,30 9,20-20,6 43 5016 Gauging pin 3 3 3U 1D for osiMESS probes 43 5016 Comparator stand for OSIMESS internal precision bore gauges Version Column type comparator stand for OSIMESS precision bore gauges. SizeOSM5- The probe is inserted into the bore to be measured by means of a hand lever and rack movement. SizeOSM6- The table is raised by means of a hand lever. Advantage Precise, reproducible, time-saving measurements. Greatest possible protection of component and measuring tool. Application For quick series checking of similar components. Manufacturer's designation OSM5 OSM6 43 5020 Comparator stand for OSIMESS Length x width x height mm 225x120x410 231x120x265 Maximum workpiece 0 mm 200 160 Maximum working stroke mm 90 40 43 5020_QSM6 435020_05M5 m Main catalogue Hoffmann Group 46 869
