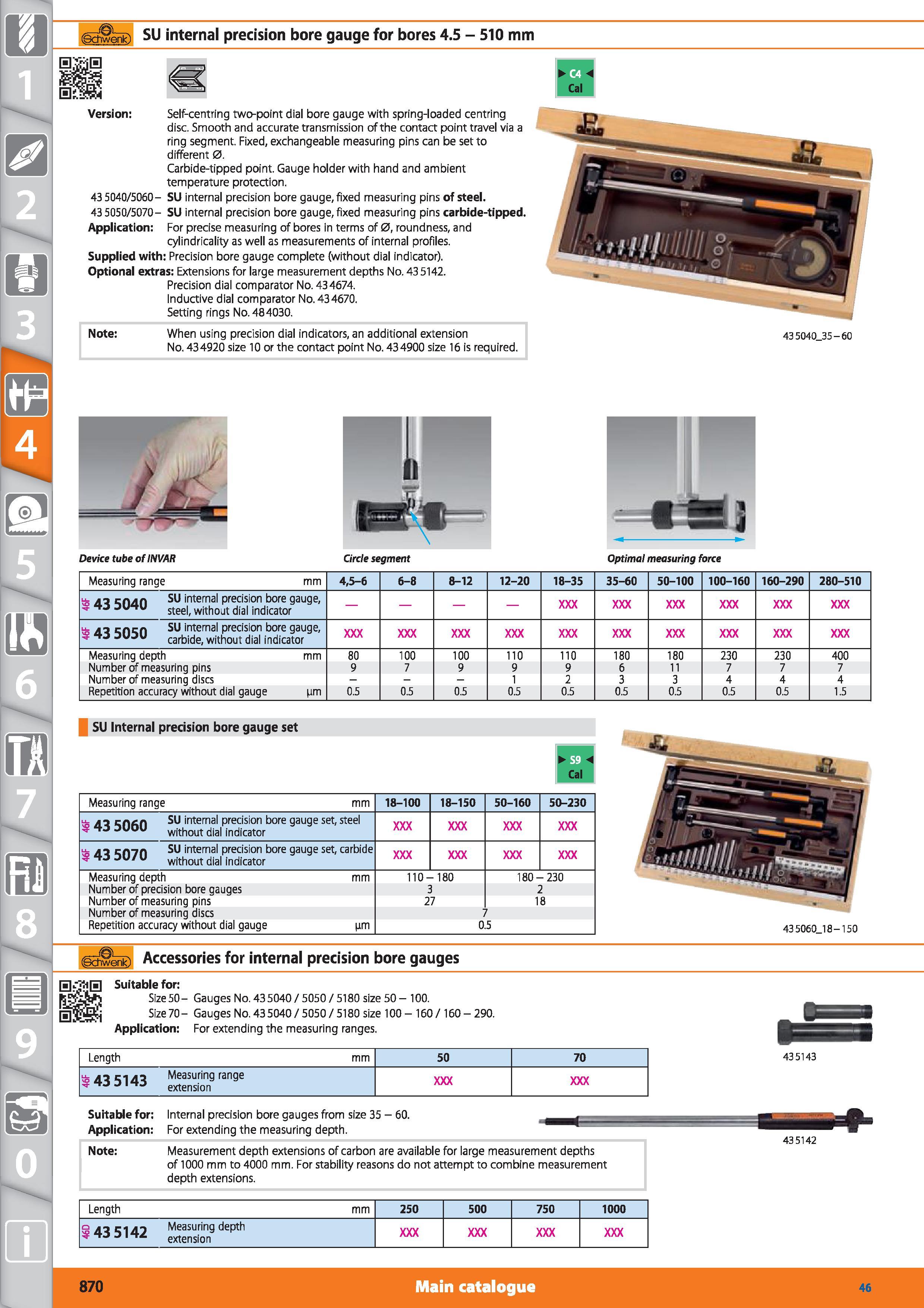

1 SU internal precision bore gauge for bores 4.5 - 510 mm Da (Ul to Cal Self-centring two-point dial bore gauge with spring-loaded centring disc. Smooth and accurate transmission of the contact point travel via a ring segment. Fixed, exchangeable measuring pins can be set to different 0. Carbide-tipped point. Gauge holder with hand and ambient temperature protection. 43 5040/5060- SU internal precision bore gauge, fixed measuring pins of steel. 43 5050/5070- SU internal precision bore gauge, fixed measuring pins carbide-tipped. Application For precise measuring of bores in terms of 0, roundness, and cylindricality as well as measurements of internal profiles. Supplied with Precision bore gauge complete (without dial indicator). Optional extras Extensions for large measurement depths No. 435142. Precision dial comparator No. 434674. Inductive dial comparator No. 434670. Setting rings No. 484030. Note When using precision dial indicators, an additional extension No. 434920 size 10 or the contact point No. 434900 size 16 is required. 43 5040_35-60 Device tube of INVAR Circle segment Optimal measuring force Measuring range mm 4,5-6 6-8 8-12 12-20 18-35 35-60 50-100 100-160 160-290 280-510 fe A3 cn n SU internal precision bore gauge, steel, without dial indicator fe 43 5050 internal precision bore gauge, 3UJU carbide, without dial indicator Measuring depth mm 80 100 100 110 110 180 180 230 230 400 Number of measuring pins 9 7 9 9 9 6 11 7 7 7 Number of measuring discs - 1 2 3 3 4 4 4 Repetition accuracy without dial gauge nm 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 1.5 SU Internal precision bore gauge set Measuring range mm 18-100 18-150 50-160 50-230 Lj. run SU internal precision bore gauge set, steel 3 3 3UOU without dial indicator fe 43 5070 5U internal precision bore gauge set, carbide S H3 3U/U without dial indicator Measuring depth mm 110-180 180 - 230 Number of precision bore gauges 3 2 Number of measuring pins 27 18 Number of measuring discs 7 Repetition accuracy without dial gauge nm 0.5 Accessories for internal precision bore gauges Suitable for Size50- Gauges No. 435040 / 5050 / 5180 size 50 - 100. Size70- Gauges No. 435040 / 5050 / 5180 size 100-160/160-290. Application For extending the measuring ranges. Length mm 50 70 fe 43 5143 Measuring range ’ extension Suitable for Internal precision bore gauges from size 35 - 60. Application For extending the measuring depth. Note Measurement depth extensions of carbon are available for large measurement depths of 1000 mm to 4000 mm. For stability reasons do not attempt to combine measurement depth extensions. 435143 43 5142 Length mm 250 500 750 1000 415149 Measuring depth extension 435060_18-150 870 Main catalogue Hoffmann Group 46
