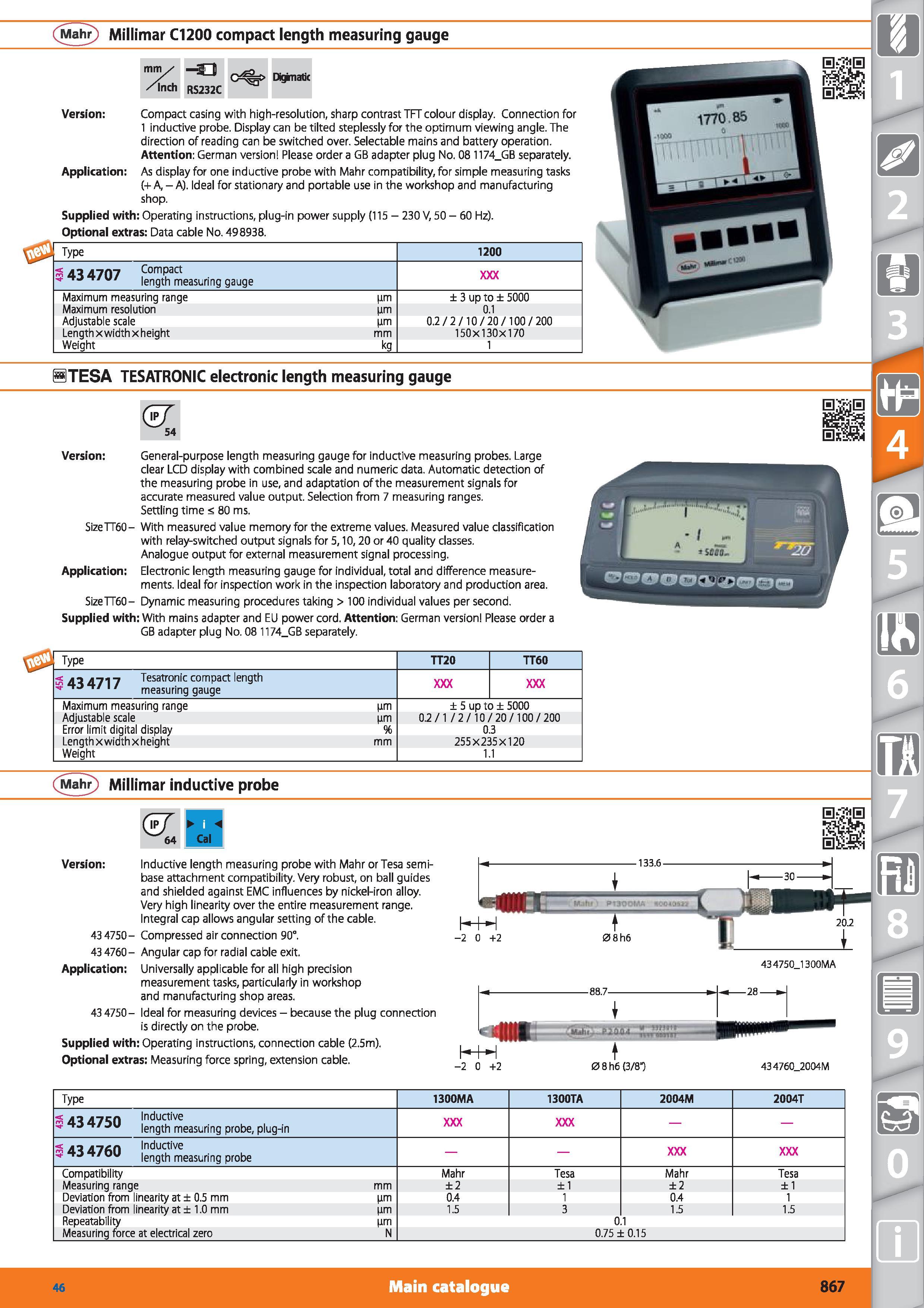

Mahr Millimar C1200 compact length measuring gauge mm/ /inch 33 RS232C Digknatic Version Compact casing with high-resolution, sharp contrast TFT colour display. Connection for 1 inductive probe. Display can be tilted steplessly for the optimum viewing angle. The direction of reading can be switched over. Selectable mains and battery operation. Attention German version Please order a GB adapter plug No. 08 1174_GB separately. Application As display for one inductive probe with Mahr compatibility, for simple measuring tasks (+ A, - A). Ideal for stationary and portable use in the workshop and manufacturing shop. Supplied with Operating instructions, plug-in power supply (115 - 230 V, 50 - 60 Hz). Optional extras Data cable No. 498938. Type 1200 s 43 4707 FomPact length measuring gauge Maximum measuring range (im ± 3 up to ± 5000 Maximum resolution (Jim 0.1 Adjustable scale (Jim 0.2/2/10/20/100/200 Length x width x height mm 150x130x170 Weight kg 1 HTESA TESATRONIC electronic length measuring gauge & 54 Version General-purpose length measuring gauge for inductive measuring probes. Large clear LCD display with combined scale and numeric data. Automatic detection of the measuring probe in use, and adaptation of the measurement signals for accurate measured value output. Selection from 7 measuring ranges. Settling time s 80 ms. SizeTT60- With measured value memory for the extreme values. Measured value classification with relay switched output signals for 5,10,20 or 40 quality classes. Analogue output for external measurement signal processing. Application Electronic length measuring gauge for individual, total and difference measure- ments. Ideal for inspection work in the inspection laboratory and production area. SizeTT60- Dynamic measuring procedures taking > 100 individual values per second. Supplied with With mains adapter and EU power cord. Attention German version Please order a GB adapter plug No. 08 1174_GB separately. Type TT20 TT60 5 43 4717 Tesatronic compact length measuring gauge Maximum measuring range (Jim ± 5 up to ± 5000 Adjustable scale (Jim 0.2/1 /2/ 10/20/100/200 Error limit digital display 0.3 Length x width x height mm 255X235X120 Weight 1.1 Mahr Millimar inductive probe & D 64 Cal Version Inductive length measuring probe with Mahr or Tesa semi- base attachment compatibility. Very robust, on ball guides and shielded against EMC influences by nickel-iron alloy. Very high linearity over the entire measurement range. Integral cap allows angular setting of the cable. 43 4750- Compressed air connection 90°. 43 4760- Angular cap for radial cable exit. Application Universally applicable for all high precision measurement tasks, particularly in workshop and manufacturing shop areas. 43 4750- Ideal for measuring devices - because the plug connection Supplied with Operating instructions, connection cable (2.5m). Optional extras Measuring force spring, extension cable. 1 1 1 H 1 H -2 0 +2 t 0 8h6(3/8") 434760_2004M Type 1300MA 1300TA 2004M 2004T m 4.3 4750 Inductive hi length measuring probe, plug-in < 43 4760 Inductive w length measuring probe Compatibility Mahr Tesa Mahr Tesa Measuring range mm ±2 ±1 ±2 ±1 Deviation from linearity at ± 0.5 mm (im 0.4 1 0.4 1 Deviation from linearity at ± 1.0 mm (im 1.5 3 1.5 1.5 Repeatability (im 0.1 Measuring force at electrical zero N 0.75 ±0.15 Main catalogue Hoffmann Group 46 867
