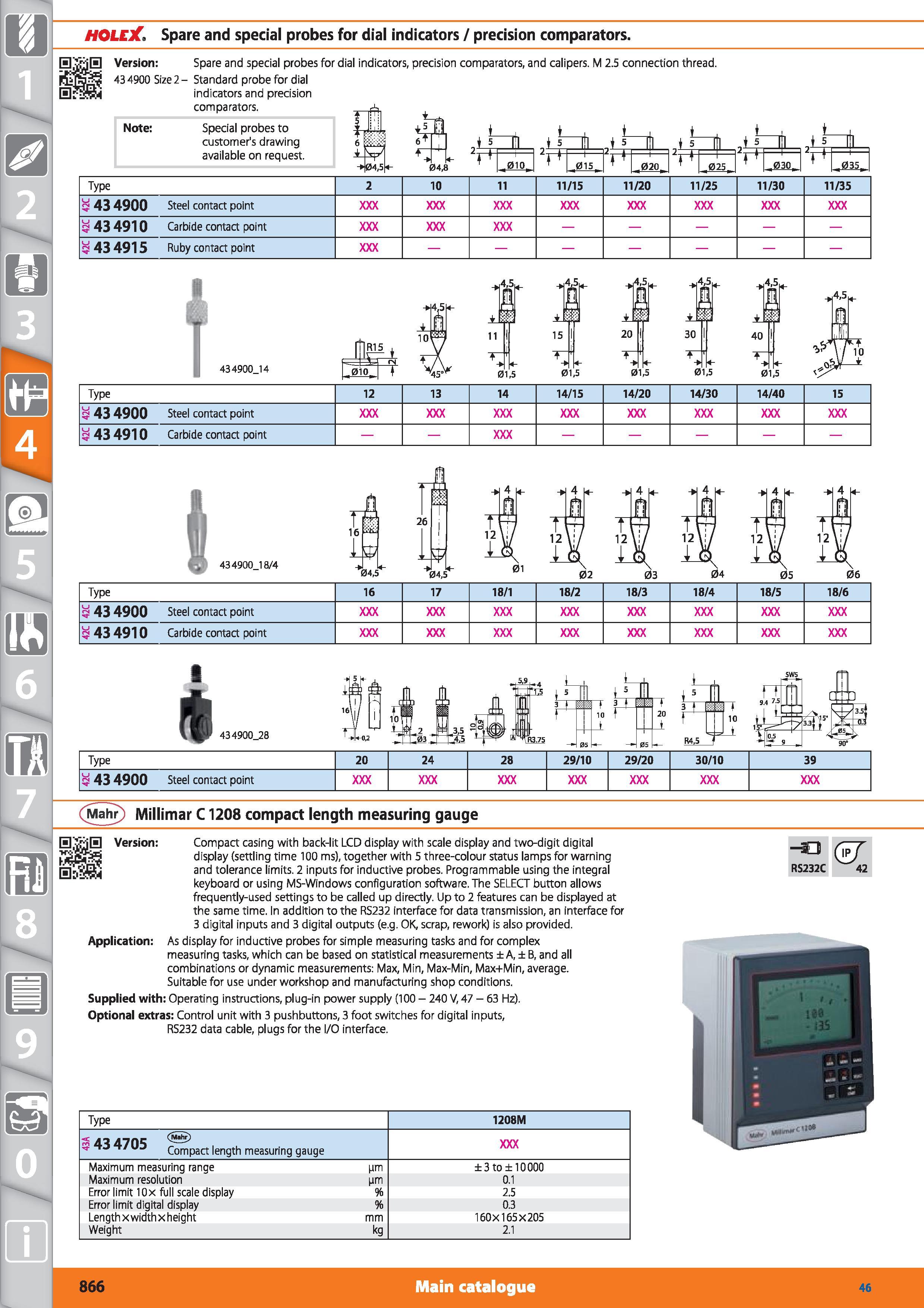

HOLEX Spare and special probes for dial indicators / precision comparators. Version Spare and special probes for dial indicators, precision comparators, and calipers. M 2.5 connection thread. 434900 Size 2- Standard probe for dial indicators and precision Note Special probes to customer's drawing available on request. rn J 5 II -t 5 II J S n 5 11 J 5 II , 5 III 6 ft; - 04,5 I ‘rf 04,8 ..010 r t T ,015, 1 t ,020, t ,025, ,030. f Type 2 10 11 11/15 11/20 11/25 11/30 11/35 5 43 4900 Steel contact point g 43 4910 Carbide contact point g 43 4915 Ruby contact point 43 4900J 4 r 1 i .0 0„ 4,5 11 01,5 15 01,5 4,5 20 01,5 4,5 30 01,5 4,5 40 > 01,5 4,5 Type 12 13 14 14/15 14/20 14/30 14/40 15 s 43 4900 Steel contact point s434910 Carbide contact point Type 16 17 18/1 18/2 18/3 18/4 18/5 18/6 3 43 4900 Steel contact point 3 434910 Carbide contact point (I 434900_28 20 Type 20 24 28 29/10 29/20 30/10 39 3 43 4900 Steel contact point 8 0 m Mahr Millimar C1208 compact length measuring gauge Version Compact casing with back-lit LCD display with scale display and two-digit digital display (settling time 100 ms), together with 5 three-colour status lamps for warning and tolerance limits. 2 inputs for inductive probes. Programmable using the integral keyboard or using MS-Windows configuration software. The SELECT button allows frequently-used settings to be called up directly. Up to 2 features can be displayed at the same time. In addition to the RS232 interface for data transmission, an interface for 3 digital inputs and 3 digital outputs (e.g. OK, scrap, rework) is also provided. Application As display for inductive probes for simple measuring tasks and for complex measuring tasks, which can be based on statistical measurements ± A, ± B, and all combinations or dynamic measurements Max, Min, Max-Min, Max+Min, average. Suitable for use under workshop and manufacturing shop conditions. Supplied with Operating instructions, plug-in power supply (100 - 240 V, 47 - 63 Hz). Optional extras Control unit with 3 pushbuttons, 3 foot switches for digital inputs, RS232 data cable, plugs for the I/O interface. Type 1208M S 43 4705 Compact length measuring gauge Maximum measuring range nm ±3 to ±10000 Maximum resolution nm 0.1 Error limit lOx full scale display 2.5 Error limit digital display 0.3 Length xwidthx height mm 160x165 x 205 Weight kg 2.1 -30 RS232C (EJ 42 866 Main catalogue Hoffmann Group 46
