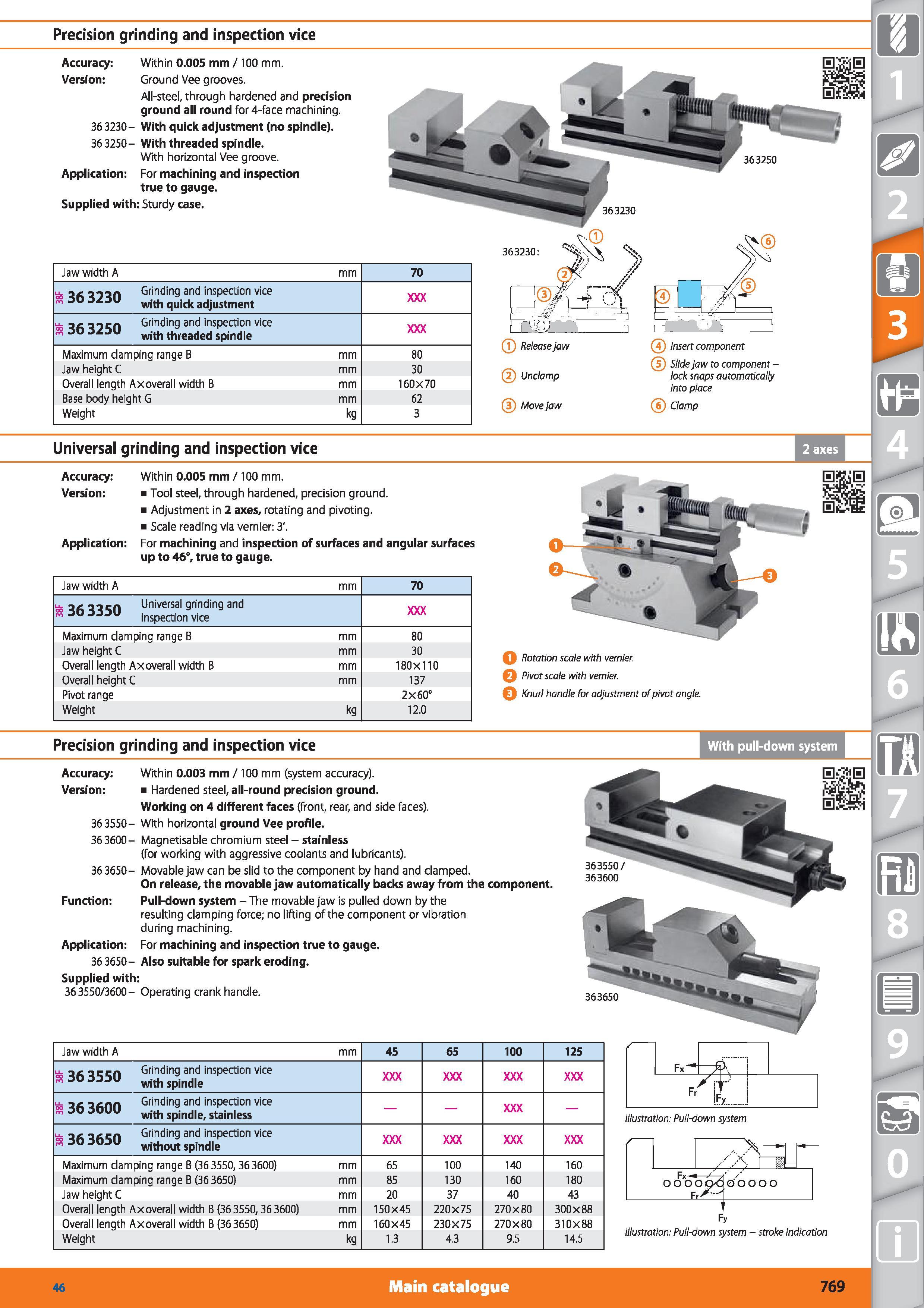

Precision grinding and inspection vice Universal grinding and inspection vice Accuracy Within 0.005 mm/100 mm. Version Tool steel, through hardened, precision ground. Adjustment in 2 axes, rotating and pivoting. Scale reading via vernier 3'. Application For machining and inspection of surfaces and angular surfaces up to 46°, true to gauge. Jaw width A mm 70 Universal grinding and inspection vice Maximum clamping range B mm 80 Jaw height C mm 30 Overall length Axoverall width B mm 180X110 Overall height C mm 137 Pivot range 2X60° Weight kg 12.0 Precision grinding and inspection vice Accuracy Within 0.003 mm / 100 mm (system accuracy). Version Hardened steel, all-round precision ground. Working on 4 different faces (front, rear, and side faces). 36 3550- With horizontal ground Vee profile. 36 3600- Magnetisable chromium steel - stainless (for working with aggressive coolants and lubricants). 36 3650- Movable jaw can be slid to the component by hand and clamped. On release, the movable jaw automatically backs away from the component. Function Pull-down system - The movable jaw is pulled down by the resulting clamping force; no lifting of the component or vibration during machining. Application For machining and inspection true to gauge. 36 3650- Also suitable for spark eroding. Supplied with 363550/3600- Operating crank handle. 2 axes Rotation scale with vernier. Pivot scale with vernier. Knurl handle for adjustment of pivot angle. 363550/ 363600 363650 Jaw width A mm 45 65 100 125 nrrn Grinding and inspection vice a 36 3550 withspyind e it. nn Grinding and inspection vice S 36 3600 with spjnd e> stainless nc. -3e.cn Grinding and inspection vice "363650 without spindle Maximum clamping range B (363550,363600) mm 65 100 140 160 Maximum clamping range B (363650) mm 85 130 160 180 Jaw height C mm 20 37 40 43 Overall length Axoverall width B (363550,363600) mm 150x45 220x75 270x80 300x88 Overall length Axoverall width B (363650) mm 160X45 230X75 270X80 310X88 Weight kg 1.3 4.3 9.5 14.5 Illustration Pull-down system S' Fy Illustration Pull-down system - stroke indication Grinding and inspection vice 8 50 3Z3V wjth q(jick a jjustment Grinding and inspection vice 30 with threaded spindle Maximum clamping range B mm 80 Jaw height C mm 30 Overall length Axoverall width B mm 160x70 Base body height G mm 62 Weight kg 3 Accuracy Within 0.005 mm/100 mm. Version Ground Vee grooves. All-steel, through hardened and precision ground all round for 4-face machining. 36 3230- With quick adjustment (no spindle). 36 3250- With threaded spindle. With horizontal Vee groove. Application For machining and inspection true to gauge. Supplied with Sturdy case. (T Release jaw (2 Unclamp (1 Move jaw (4) Insert component (5) Slide jaw to component -lock snaps automatically into place Clamp Jaw width A Main catalogue Hoffmann Group 46 769
