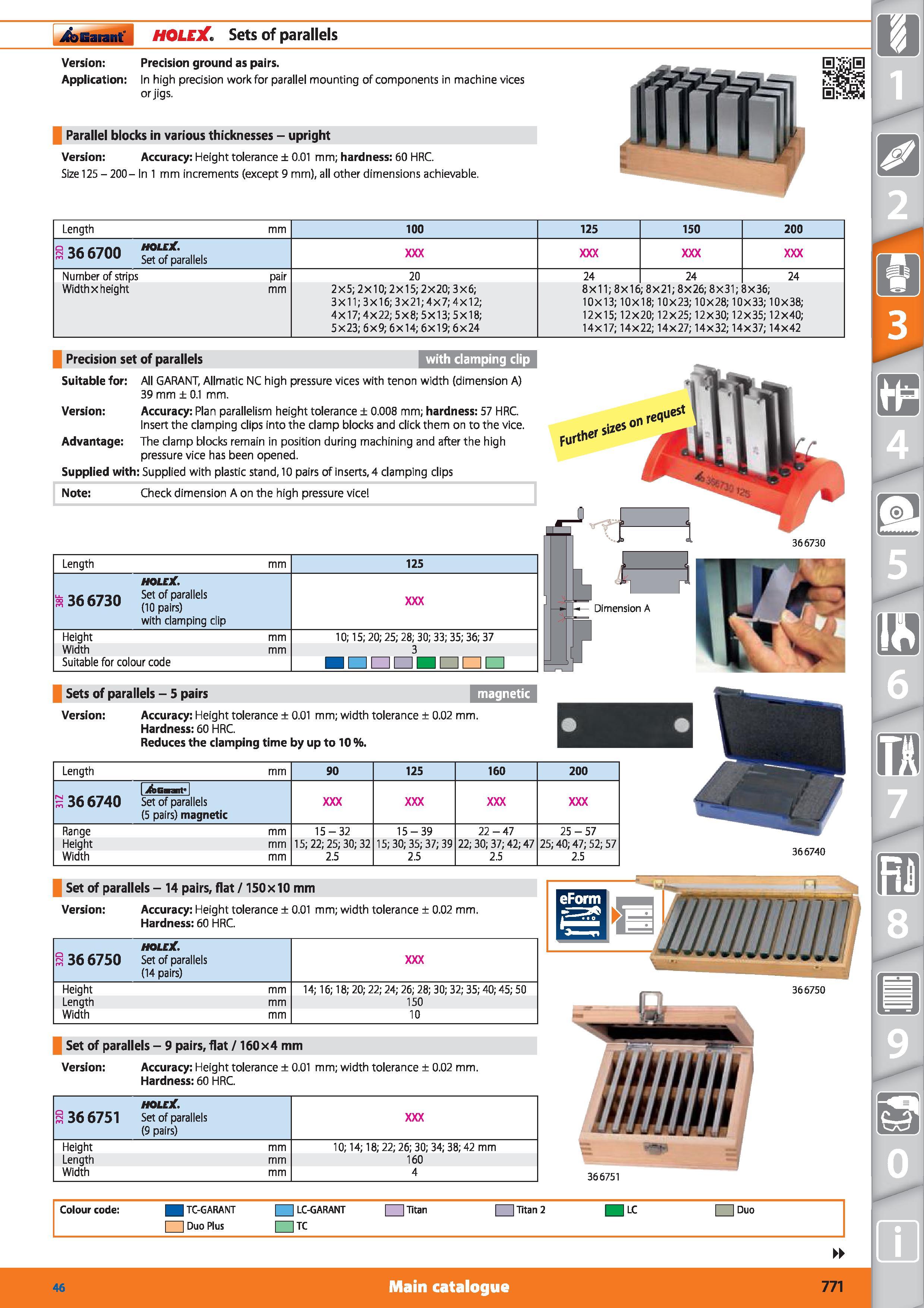

Garant HOLEX Sets of parallels Version Precision ground as pairs. Application In high precision work for parallel mounting of components in machine vices or jigs. Parallel blocks in various thicknesses - upright Version Accuracy Height tolerance ± 0.01 mm; hardness 60 HRC. Size 125 - 200- In 1 mm increments (except 9 mm), all other dimensions achievable. Length 100 1366700 HOLEX Set of parallels Number of strips Widthx height pair mm 20 2X5; 2X10; 2x15; 2x20; 3x6; 3x11; 3x16; 3x21; 4x7; 4x12; 4x17; 4x22; 5x8; 5x13; 5x18; 5x23; 6x9; 6x14; 6x19; 6x24 Precision set of parallels Suitable for with clamping clip All GARANT, Allmatic NC high pressure vices with tenon width (dimension A) 39 mm ± 0.1 mm. Version Advantage Accuracy Plan parallelism height tolerance ± 0.008 mm; hardness 57 HRC. Insert the clamping clips into the clamp blocks and click them on to the vice. The clamp blocks remain in position during machining and after the high pressure vice has been opened. Supplied with Supplied with plastic stand, 10 pairs of inserts, 4 clamping clips Note Check dimension A on the high pressure vice Length mm 125 "366730 HOLEX Set of parallels (10 pairs) with clamping clip Height mm 10; 15; 20; 25; 28; 30; 33; 35; 36; 37 Width mm 3 Suitable for colour code Sets of parallels - 5 pairs Version magnetic Accuracy Height tolerance ± 0.01 mm; width tolerance ± 0.02 mm. Hardness 60 HRC. Reduces the clamping time by up to 10 %. Length I j&Gmnt"l s 36 6740 Set of parallels (5 pairs) magnetic Range Height Width mm 90 15-32 15; 22; 25; 30; 32 2.5 125 15-39 15; 30; 35; 37; 39 2.5 160 22-47 22; 30; 37; 42; 47 2.5 Set of parallels - 14 pairs, flat / 150x10 mm Version Accuracy Height tolerance ± 0.01 mm; width tolerance ± 0.02 mm. Hardness 60 HRC. s 36 6750 holeX. Set of parallels (14 pairs) Height mm 14; 16; 18; 20; 22; 24; 26; 28; 30; 32; 35; 40; 45; 50 Length mm 150 Width mm 10 Set of parallels - 9 pairs, flat / 160x4 mm Version Accuracy Height tolerance ± 0.01 mm; width tolerance ± 0.02 mm. Hardness 60 HRC. s 36 6751 holeX. Set of parallels (9 pairs) Height mm 10; 14; 18; 22; 26; 30; 34; 38; 42 mm Length mm 160 Width mm 4 366751 Colour code TC-GARANT LC-GARANT Titan Titan 2 LC Duo I Duo Plus TC Main catalogue Hoffmann Group 46 771
