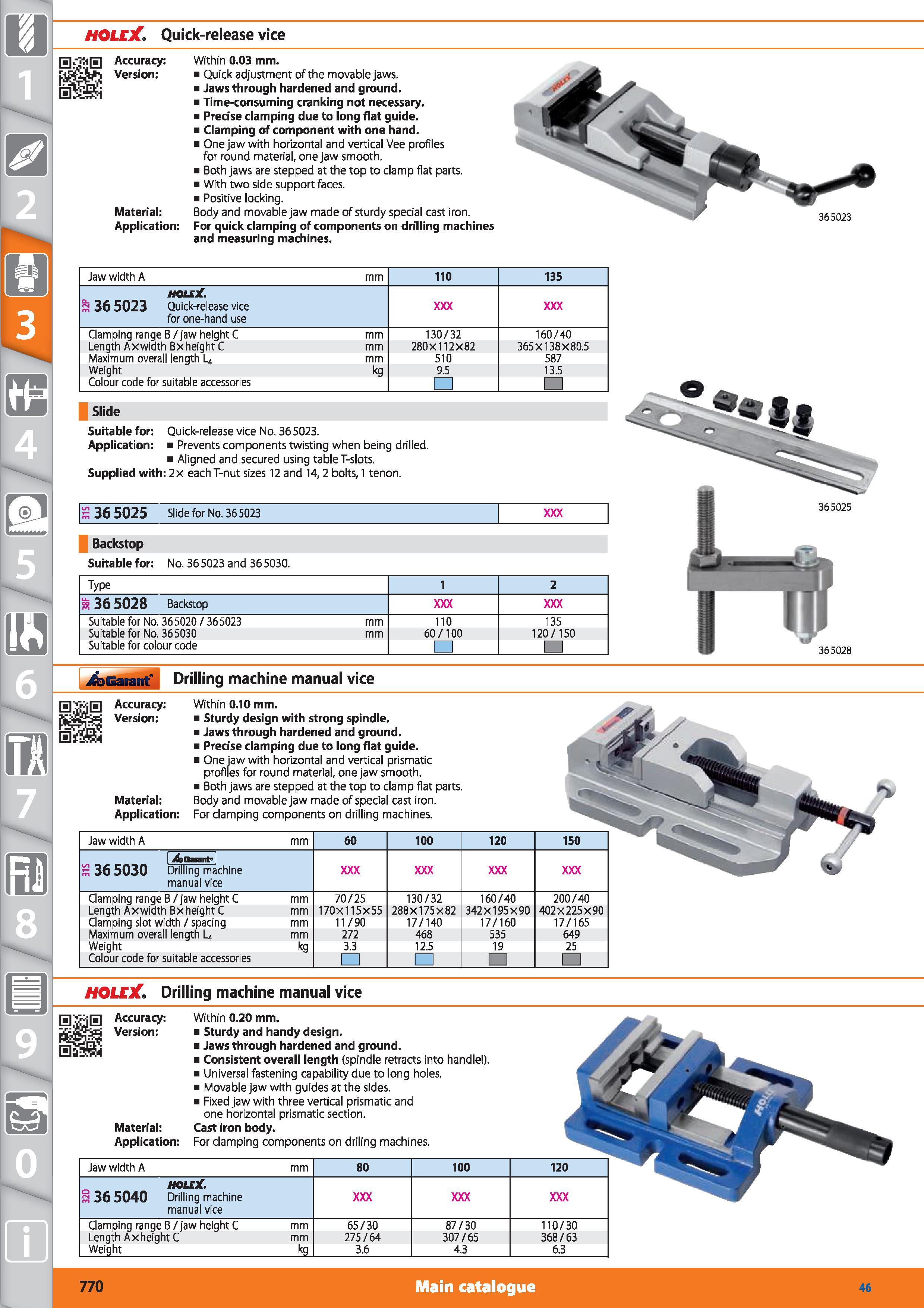

HOLEJCQuick-release vice Qjj'liQ Accuracy Within 0.03 mm. Version Quick adjustment of the movable jaws. Jaws through hardened and ground. Time-consuming cranking not necessary. Precise clamping due to long flat guide. Clamping of component with one hand. One jaw with horizontal and vertical Vee profiles for round material, one jaw smooth. Both jaws are stepped at the top to clamp flat parts. With two side support faces. Positive locking. Material Body and movable jaw made of sturdy special cast iron. Application For quick clamping of components on drilling machines and measuring machines. Jaw width A mm 110 135 HOLEX H 36 5023 Quick-release vice for one-hand use Clamping range B / jaw height C mm 130/32 160/40 Length Ax width Bx height C mm 280X112X82 365X138X80.5 Maximum overall length L4 mm 510 587 Weight kg 9.5 13.5 Colour code for suitable accessories Slide Suitable for Quick-release vice No. 36 5023. Application Prevents components twisting when being drilled. Aligned and secured using table T-slots. Supplied with 2x each T-nut sizes 12 and 14,2 bolts, 1 tenon. s 36 5025 Slide for No. 36 5023 Backstop Suitable for No. 36 5023 a nd 36 5030. Type 1 2 8 36 5028 Backstop Suitable for No. 365020 / 365023 mm 110 135 Suitable for No. 365030 mm 60/100 120/150 Suitable for colour code Garant Drilling machine manual vice 0 Accuracy Version Material Application Within 0.10 mm. Sturdy design with strong spindle. Jaws through hardened and ground. Precise clamping due to long flat guide. One jaw with horizontal and vertical prismatic profiles for round material, one jaw smooth. Both jaws are stepped at the top to clamp flat parts. Body and movable jaw made of special cast iron. For clamping components on drilling machines. Jaw width A 365030 I jfecarant' 1 Drilling machine manual vice Clamping range B/jaw height C mm Length Ax width Bx height C mm Clamping slot width / spacing mm Maximum overall length L4 mm Weight kg Colour code for suitable accessories 70/25 170x115x55 11/90 272 3.3 130/32 288X175X82 17/140 468 12.5 160/40 342X195X90 17/160 535 19 200/40 402X225X90 17/165 649 25 365023 365028 HOLEXDrilling machine manual vice Bp Accuracy Within 0.20 mm. Version Sturdy and handy design. Jaws through hardened and ground. Consistent overall length (spindle retracts into handle ). Universal fastening capability due to long holes. Movable jaw with guides at the sides. Fixed jaw with three vertical prismatic and one horizontal prismatic section. Material Cast iron body. Application For clamping components on driling machines. Jaw width A HOLEX 36 5040 Drilling machine manual vice Clamping range B/jaw height C mm Length Ax height C mm Weight _kg 65/30 275/64 3.6 87/30 307/65 4.3 110/30 368/63 6.3 770 Main catalogue Hoffmann Group 46
