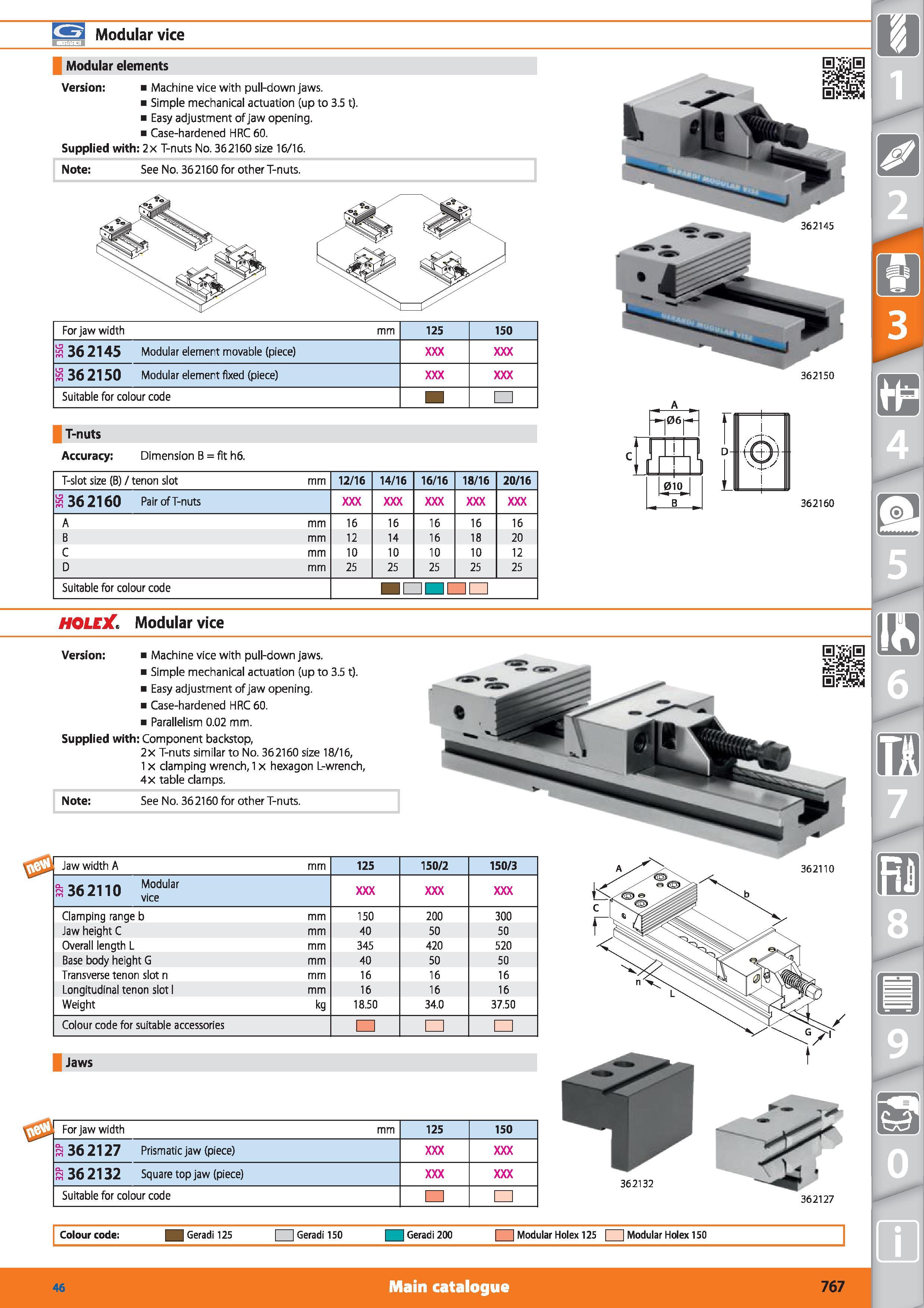

ES Modular vice Modular elements Version Machine vice with pull-down jaws. Simple mechanical actuation (up to 3.5 t). Easy adjustment of jaw opening. Case-hardened HRC 60. Supplied with 2x T-nuts No. 362160 size 16/16. Note See No. 36 2160 for other T-nuts. For jaw width mm 125 150 S 36 2145 Modular element movable (piece) S 36 2150 Modular element fixed (piece) Suitable for colour code T-nuts Accuracy Dimension B fit h6. T-slot size (B) / tenon slot mm 12/16 14/16 16/16 18/16 20/16 S 36 2160 Pair of T-nuts A mm 16 16 16 16 16 B mm 12 14 16 18 20 C mm 10 10 10 10 12 D mm 25 25 25 25 25 Suitable for colour code 06p- tu 0io B r D- I =+= i 362160 HOLEX Modular vice 362145 362150 Version Machine vice with pull-down jaws. Simple mechanical actuation (up to 3.5 t). Easy adjustment of jaw opening. Case-hardened HRC 60. Parallelism 0.02 mm. Supplied with Component backstop, 2x T-nuts similar to No. 362160 size 18/16, 1 x clamping wrench, 1 x hexagon L-wrench, 4x table clamps. Note See No. 36 2160 for other T-nuts. Jaw width A 1362110 Modular vice Clamping range b mm 150 Jaw height C mm 40 Overall length L mm 345 Base body height G mm 40 Transverse tenon slot n mm 16 Longitudinal tenon slot 1 mm 16 Weight kg 18.50 Colour code for suitable accessories For jaw width 3 36 2127 Prismatic jaw (piece) i 36 2132 Square top jaw (piece) Suitable for colour code Colour code Geradi 125 Geradi 150 Geradi 200 Modular Holex 125 Modular Holex 150 Main catalogue Hoffmann Group 46 767
