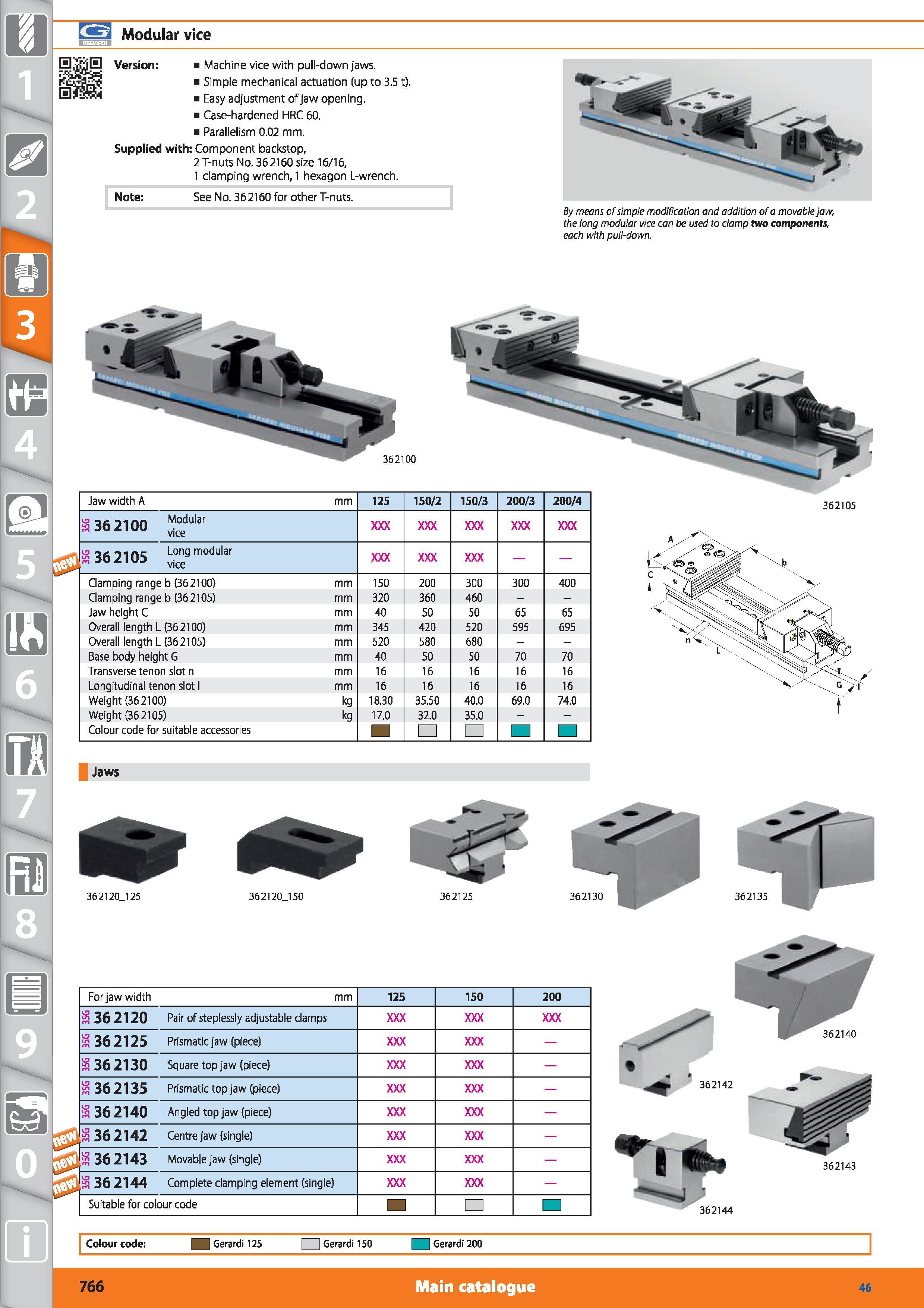

a Modular vice 0 Version Machine vice with pull-down jaws. Simple mechanical actuation (up to 3.5 t). Easy adjustment of jaw opening. Case-hardened HRC 60. Parallelism 0.02 mm. Supplied with Component backstop, 2 T-nuts No. 362160 size 16/16, 1 clamping wrench, 1 hexagon L-wrench. Note See No. 362160 for other T-nuts. Jaw width A mm 125 150/2 150/3 200/3 200/4 3 36 2100 “°dular 362105 Long modular Clamping range b (362100) mm 150 200 300 300 400 Clamping range b (362105) mm 320 360 460 Jaw height C mm 40 50 50 65 65 Overall length L (362100) mm 345 420 520 595 695 Overall length L (362105) mm 520 580 680 Base body height G mm 40 50 50 70 70 Transverse tenon slot n mm 16 16 16 16 16 Longitudinal tenon slot 1 mm 16 16 16 16 16 Weight (362100) kg 18.30 35.50 40.0 69.0 74.0 Weight (362105) kg 17.0 32.0 35.0 Colour code for suitable accessories 00 By means of simple modification and addition of a movable jaw, the long modular vice can be used to clamp two components, each with pull-down. 362105 For jaw width mm 125 150 200 362120 Pair of steplessly adjustable clamps s 36 2125 Prismatic jaw (piece) 3 362130 Square top jaw (piece) 3 36 2135 Prismatic top jaw (piece) 3 362140 Angled top jaw (piece) 362142 Centre jaw (single) s 362143 Movable jaw (single) 3 362144 Complete clamping element (single) Suitable for colour code Colour code Gerardi 125 Gerardi 150 Gerardi 200 362120J50 362125 362142 362120J25 362130 rf> 362144 362143 362135 362140 Main catalogue Hoffmann Group 46
