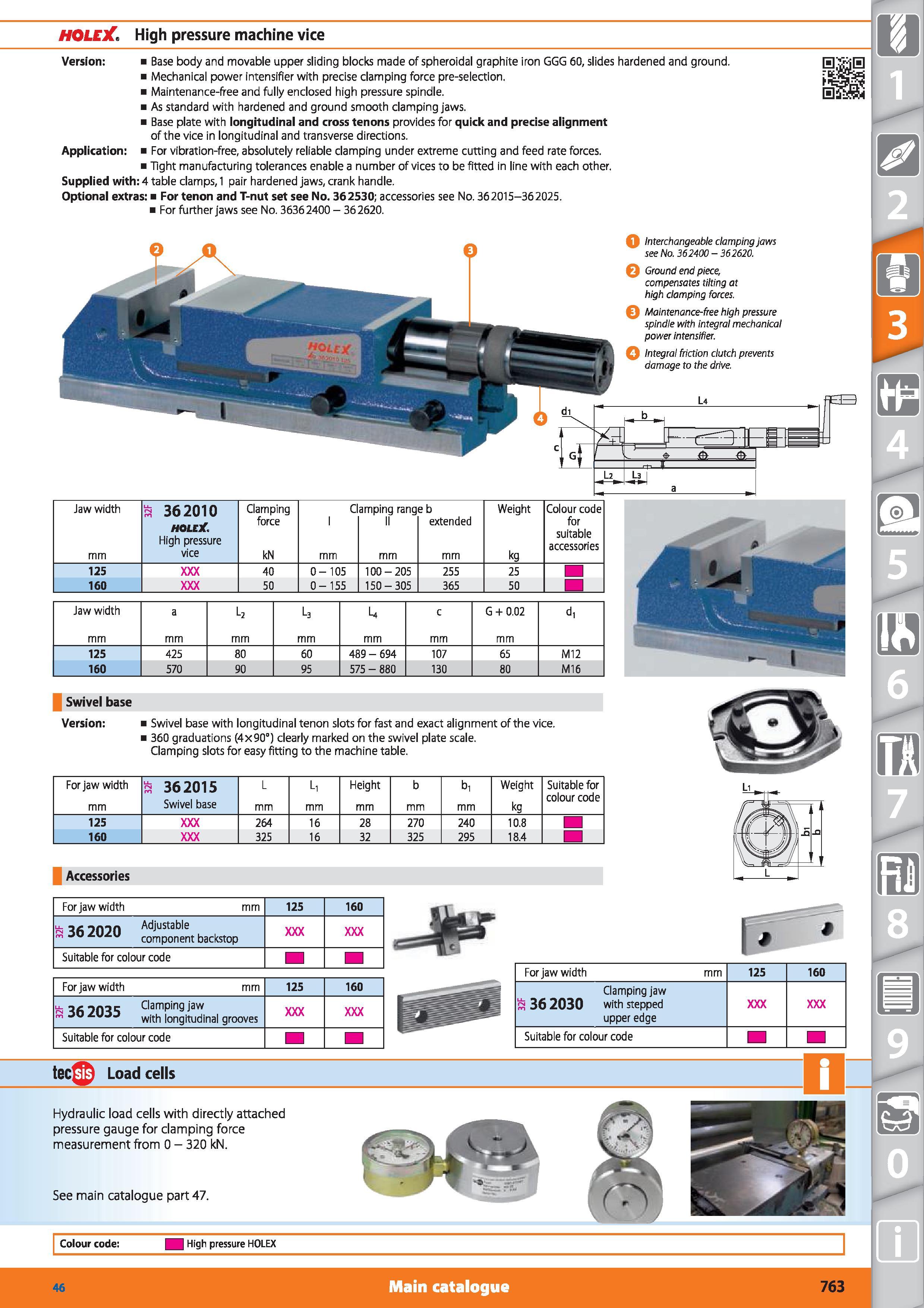

HOLEX High pressure machine vice Version Base body and movable upper sliding blocks made of spheroidal graphite iron GGG 60, slides hardened and ground. Mechanical power intensifier with precise clamping force pre-selection. Maintenance-free and fully enclosed high pressure spindle. As standard with hardened and ground smooth clamping jaws. Base plate with longitudinal and cross tenons provides for quick and precise alignment of the vice in longitudinal and transverse directions. Application For vibration-free, absolutely reliable clamping under extreme cutting and feed rate forces. Tight manufacturing tolerances enable a number of vices to be fitted in line with each other. Supplied with 4 table clamps, 1 pair hardened jaws, crank handle. Optional extras For tenon and T-nut set see No. 362530; accessories see No. 362015-362025. For further jaws see No. 36362400 - 362620. Colour code High pressure HOLEX Jaw width 362010 holejC' High pressure Clamping force Clamping range b extended Weight Colour code for suitable accessories 0-105 0-155 100 - 205 150-305 Jaw width mm G + 0.02 mm 489 - 694 575 - 880 For jaw width 1362020 Adjustable component backstop For jaw width 1362035 Clamping jaw with longitudinal grooves Swivel base Version Swivel base with longitudinal tenon slots for fast and exact alignment of the vice. 360 graduations (4x90°) clearly marked on the swivel plate scale. Clamping slots for easy fitting to the machine table. For jaw width s 362015 L L, Height b bi Weight Suitable for mm Swivel base mm kg colour code 125 264 16 28 270 240 10.8 160 325 16 32 325 295 18.4 Accessories Suitable for colour code Suitable for colour code tec ft Load cells Hydraulic load cells with directly attached pressure gauge for clamping force measurement from 0 - 320 kN. See main catalogue part 47. For jaw width mm 125 160 Clamping jaw S 36 2030 with stepped upper edge Suitable for colour code Interchangeable clamping jaws see No. 362400 -362620. Ground end piece, compensates tilting at high clamping forces. Maintenance-free high pressure spindle with integral mechanical power intensifier. Integral friction clutch prevents damage to the drive. Main catalogue Hoffmann Group 46 763
