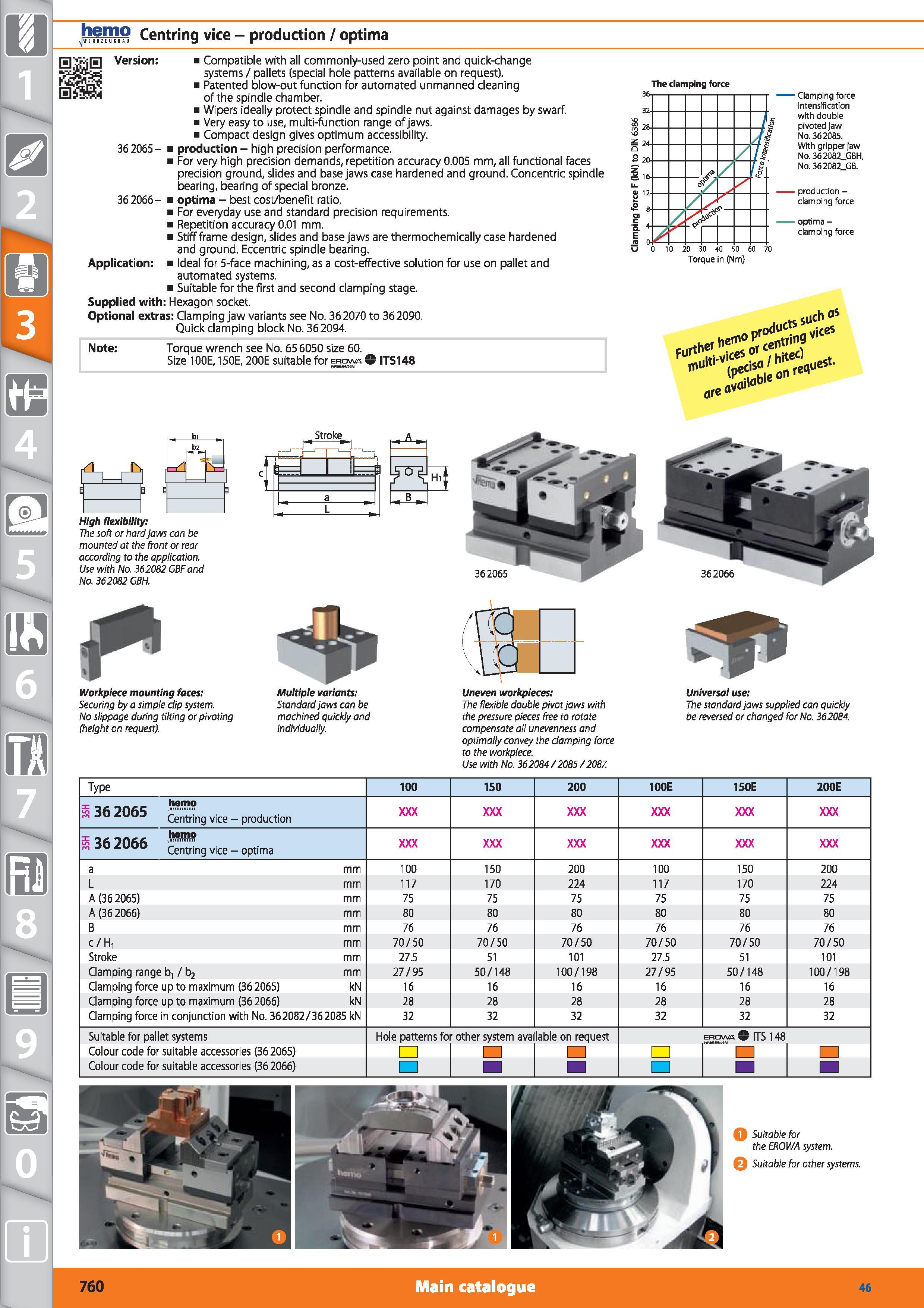

8 m Centring vice - production / optima Version Compatible with all commonly-used zero point and quick-change systems / pallets (special hole patterns available on request). Patented blow-out function for automated unmanned cleaning of the spindle chamber. Wipers ideally protect spindle and spindle nut against damages by swarf. Very easy to use, multi-function range of jaws. Compact design gives optimum accessibility. 36 2065- production - high precision performance. For very high precision demands, repetition accuracy 0.005 mm, all functional faces precision ground, slides and base jaws case hardened and ground. Concentric spindle bearing, bearing of special bronze. 36 2066- optima - best cost/benefit ratio. For everyday use and standard precision requirements. Repetition accuracy 0.01 mm. Stiff frame design, slides and base jaws are thermochemically case hardened and ground. Eccentric spindle bearing. Application Ideal for 5-face machining, as a cost-effective solution for use on pallet and automated systems. Suitable for the first and second clamping stage. Supplied with Hexagon socket. Optional extras Clamping jaw variants see No. 362070 to 362090. Quick clamping block No. 362094. The clamping force fi J‘3 SI S h J ,c o A (1 0- 0 0 n 0 70 Clamping force intensification with double pivoted jaw No, 362085, With gripper jaw No, 362082_GBH, No, 362082_GB. production -clamping force optima - clamping force Torque in (Nm) Note Torque wrench see No. 65 6050 size 60. ITS 148 High flexibility The soft or hard jaws can be mounted at the front or rear according to the application. Use with No. 362082 GBF and No. 362082 GBH. Stroke u H’f 03 Workpiece mounting faces Securing by a simple clip system. No slippage during tilting or pivoting (height on request). Multiple variants Standard jaws can be machined quickly and individually. m r is L Uneven workpieces The flexible double pivot jaws with the pressure pieces free to rotate compensate all unevenness and optimally convey the clamping force to the workpiece. Use with No. 362084/2085/2087. Universal use The standard jaws supplied can quickly be reversed or changed for No, 362084, Type 100 150 200 100E 150E 200E b 36 2065 hemo Centring vice - production s 36 2066 ha m o Centring vice - optima a mm 100 150 200 100 150 200 L mm 117 170 224 117 170 224 A (36 2065) mm 75 75 75 75 75 75 A (36 2066) mm 80 80 80 80 80 80 B mm 76 76 76 76 76 76 c/H, mm 70/50 70/50 70/50 70/50 70/50 70/50 Stroke mm 27.5 51 101 27.5 51 101 Clamping range b, / bj mm 27/95 50/148 100/198 27/95 50/148 100/198 Clamping force up to maximum (36 2065) kN 16 16 16 16 16 16 Clamping force up to maximum (362066) kN 28 28 28 28 28 28 Clamping force in conjunction with No. 362082/362085 kN 32 32 32 32 32 32 Suitable for pallet systems Hole patterns for other system available on request EROWA V ITS 1 48 Colour code for suitable accessories (362065) Colour code for suitable accessories (362066) Q Suitable for the EROWA system. 0j Suitable for other systems. 760 Main catalogue Hoffmann Group 46
