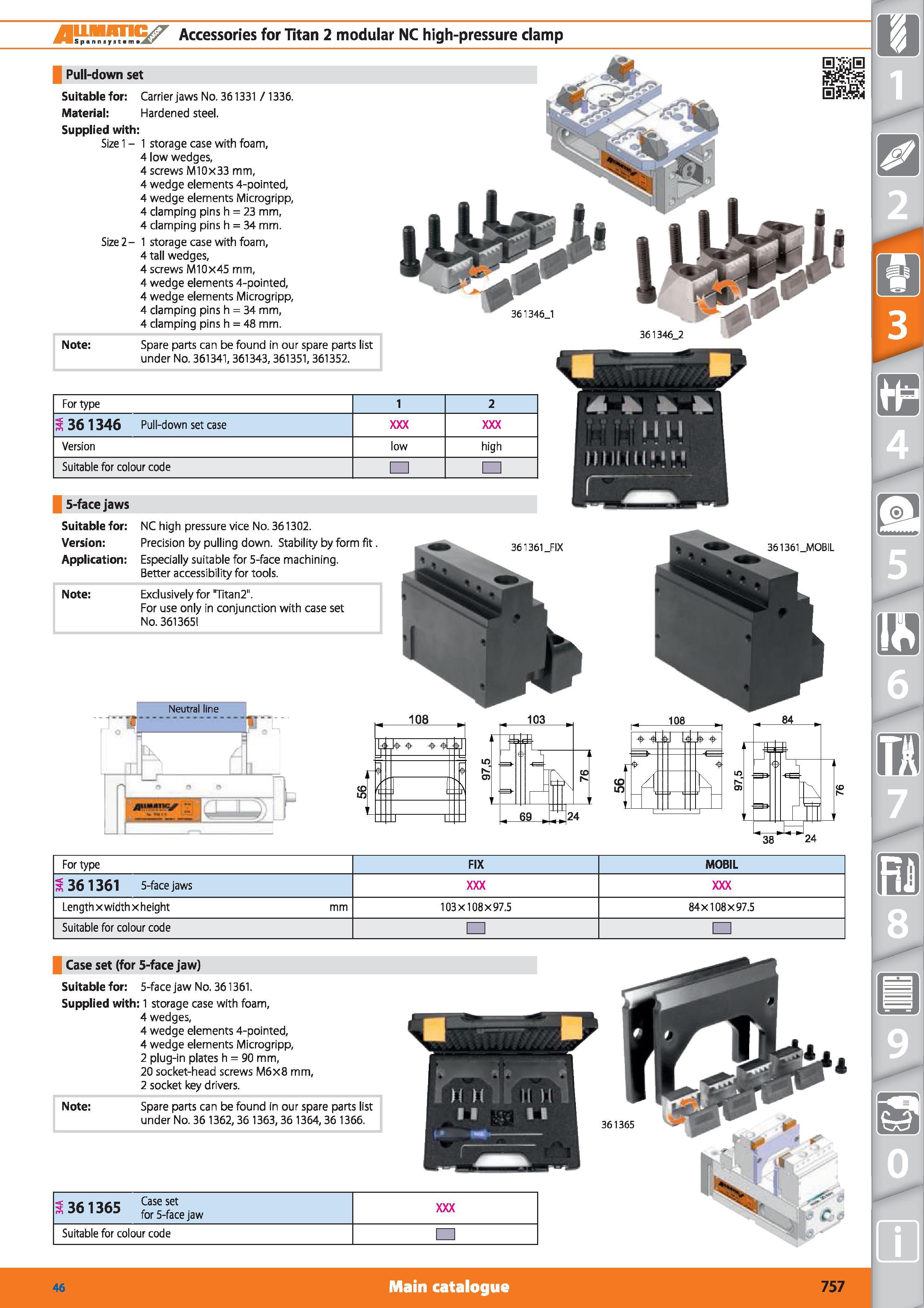

Accessories for Titan 2 modular NC high-pressure clamp Note Spare parts can be found in our spare parts list under No. 361341,361343,361351,361352. Note Exclusively for Titan2". For use only in conjunction with case set No. 361365 Pull-down set Suitable for Carrier jaws No. 361331 /1336. Material Hardened steel. Supplied with Size 1 - 1 storage case with foam, 4 low wedges, 4 screws M10X33 mm, 4 wedge elements 4-pointed, 4 wedge elements Microgripp, 4 clamping pins h 23 mm, 4 clamping pins h 34 mm. Size 2- 1 storage case with foam, 4 tall wedges, 4 screws M10X45 mm, 4 wedge elements 4-pointed, 4 wedge elements Microgripp, 4 clamping pins h 34 mm, 4 clamping pins h 48 mm. 5-face jaws Suitable for Version Application NC high pressure vice No. 361302. Precision by pulling down. Stability by form fit. Especially suitable for 5-face machining. Better accessibility for tools. For type 3 361346 Pull-down set case Version Suitable for colour code Neutral line For type FIX MOBIL 3 361361 5-face jaws Length x width x height mm 103x108x97.5 84x108 x 97.5 Suitable for colour code Note Spare parts can be found in our spare parts list under No. 36 1362,36 1363,36 1364,36 1366. i 361365 tejiw Suitable for colour code 361365 Case set (for 5-face jaw) Suitable for 5-face jaw No. 361361. Supplied with 1 storage case with foam, 4 wedges, 4 wedge elements 4-pointed, 4 wedge elements Microgripp, 2 plug-in plates h 90 mm, 20 socket-head screws M6x8 mm, 2 socket key drivers. Main catalogue Hoffmann Group 46 757
