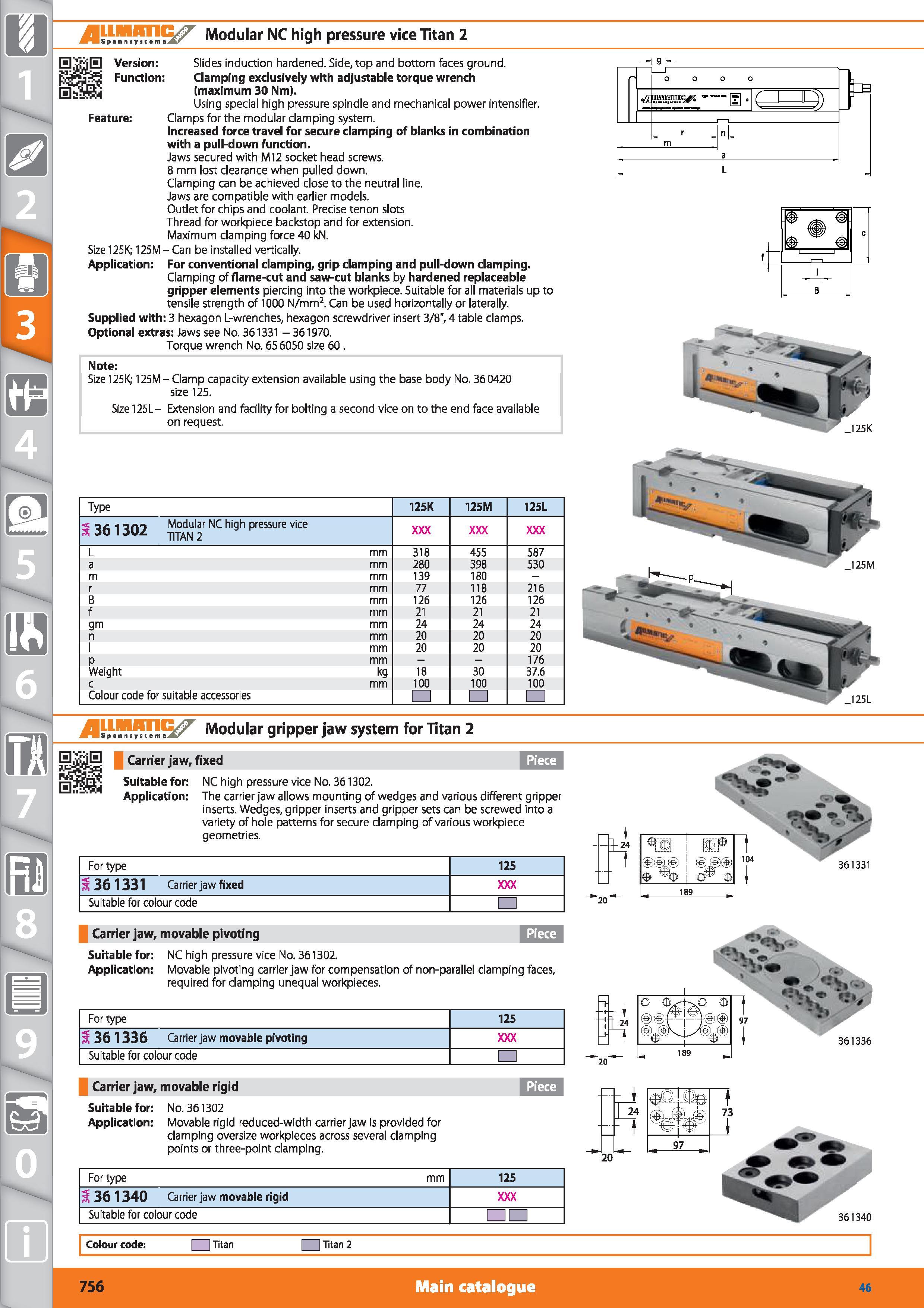

Modular NC high pressure vice Titan 2 Feature Version Slides induction hardened. Side, top and bottom faces ground. Function Clamping exclusively with adjustable torque wrench (maximum 30 Nm). Using special high pressure spindle and mechanical power intensifier. Clamps for the modular clamping system. Increased force travel for secure clamping of blanks in combination with a pull-down function. Jaws secured with M12 socket head screws. 8 mm lost clearance when pulled down. Clamping can be achieved close to the neutral line. Jaws are compatible with earlier models. Outlet for chips and coolant. Precise tenon slots Thread for workpiece backstop and for extension. Maximum clamping force 40 kN. Size 125K; 125M- Can be installed vertically. Application For conventional clamping, grip clamping and pull-down clamping. Clamping of flame-cut and saw-cut blanks by hardened replaceable gripper elements piercing into the workpiece. Suitable for all materials up to tensile strength of 1000 N/mm2. Can be used horizontally or laterally. Supplied with 3 hexagon L-wrenches, hexagon screwdriver insert 3/8”, 4 table clamps. Optional extras Jaws see No. 361331 - 361970. Torque wrench No. 65 6050 size 60. Note Size 125K; 125M-Clamp capacity extension available using the base body No. 360420 size 125. Size 125L- Extension and facility for bolting a second vice on to the end face available on request. t- c 1 1 1 UiL B 125K Type 12SK 125M 125L 5 36 1302 Modular NC high pressure vice TITAN 2 L mm 318 455 587 a mm 280 398 530 m mm 139 180 - r mm 77 118 216 B mm 126 126 126 f mm 21 21 21 gm mm 24 24 24 n mm 20 20 20 mm 20 20 20 P mm 176 Weight kg 18 30 37.6 c mm 100 100 100 Colour code for suitable accessories .Modular gripper jaw system for Titan 2 H Carrier jaw, fixed Suitable for NC high pressure vice No. 361302. Application The carrier jaw allows mounting of wedges and various different gripper inserts. Wedges, gripper inserts and gripper sets can be screwed into a variety of hole patterns for secure clamping of various workpiece geometries. For type 125 1 36 1331 Carrier jaw fixed Suitable for colour code Carrier jaw, movable pivoting Suitable for NC high pressure vice No. 361302. Application Movable pivoting carrier jaw for compensation of non-parallel clamping faces, required for clamping unequal workpieces. For type 125 3 36 1336 Carrier jaw movable pivoting Suitable for colour code Carrier jaw, movable rigid Suitable for No. 361302 Application Movable rigid reduced-width carrier jaw is provided for clamping oversize workpieces across several clamping points or three-point clamping. 20 m- il fe 9 7 1 73 J For type mm 125 3j 36 1340 Carrier jaw movable rigid Suitable for colour code 361340 Colour code I Titan Titan 2 756 Main catalogue Hoffmann Group 46
