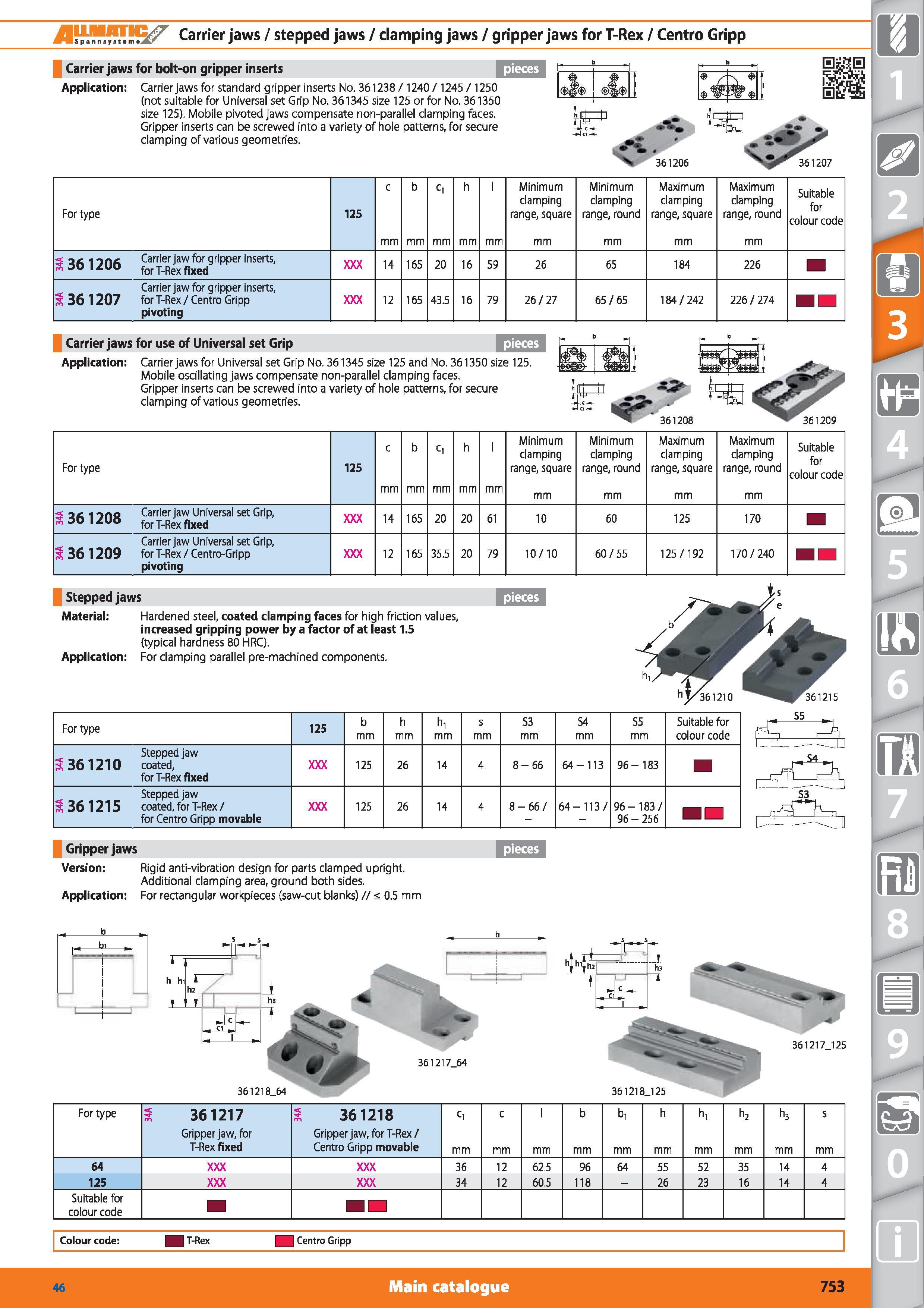

Carrier jaws / stepped jaws / damping jaws / gripper jaws for T-Rex / Centro Gripp Carrier jaws for bolt-on gripper inserts Application Carrier jaws for standard gripper inserts No. 361238 / 1240/ 1245 /1250 (not suitable for Universal set Grip No. 361345 size 125 or for No. 361350 size 125). Mobile pivoted jaws compensate non-parallel clamping faces. Gripper inserts can be screwed into a variety of hole patterns, for secure clamping of various geometries. 361207 For type 125 c mm b mm Cl mm h mm 1 mm Minimum damping range, square mm Minimum clamping range, round mm Maximum clamping range, square mm Maximum damping range, round mm Suitable for colour code )/ Carrier jaw for gripper inserts, m 30 I UO for T-Rex fixed 14 165 20 16 59 26 65 184 226 Carrier jaw for gripper inserts, S 36 1207 for T-Rex / Centro Gri pp pivoting 12 165 43.5 16 79 26/27 65/65 184 / 242 226 / 274 Carrier jaws for use of Universal set Grip Application Carrier jaws for Universal set Grip No. 361345 size 125 and No. 361350 size 125. Mobile oscillating jaws compensate non-parallel clamping faces. Gripper inserts can be screwed into a variety of hole patterns, for secure clamping of various geometries. 3 361208 For type 125 c mm b mm Cl mm h mm 1 mm Minimum damping range, square mm Minimum clamping range, round mm Maximum clamping range, square mm Maximum clamping range, round mm Suitable for colour code < /< mo Carrier jaw Universal set Grip, S 36 1208 for T-Rex fixed 14 165 20 20 61 10 60 125 170 Carrier jaw Universal set Grip, 3; 36 1209 for T-Rex / Centro-Gripp pivoting 12 165 35.5 20 79 10/10 60/55 125/192 170/240 1 1 Stepped jaws Material Hardened steel, coated clamping faces for high friction values, increased gripping power by a factor of at least 1.5 (typical hardness 80 HRC). Application For clamping parallel pre-machined components. For type 125 b mm h mm hi mm s mm S3 mm S4 mm S5 mm Suitable for colour code 3 361210 Stepped jaw coated, for T-Rex fixed 125 26 14 4 8-66 64-113 96-183 - 1361215 Stepped jaw coated, for T-Rex / for Centro Gripp movable 125 26 14 4 8-66/ 64-113/ 96-183/ 96 - 256 361215 Gripper jaws Version Rigid anti-vibration design for parts clamped upright. Additional clamping area, ground both sides. Application For rectangular workpieces (saw-cut blanks) // s 0.5 mm r 361217_64 361218_64 .i u hi h2 T h3 1 , 1 361218_125 361217 125 For type 1 361217 Gripper jaw, for T-Rex fixed S 361218 Gripper jaw, for T-Rex / Centro Gripp movable c, mm c b mm bi mm h mm hi mm h2 mm h3 mm s mm 64 36 12 62.5 96 64 55 52 35 14 4 125 34 12 60.5 118 - 26 23 16 14 4 Suitable for colour code 1 1 Colour code I T-Rex 1 Centro Gripp 361209 Main catalogue Hoffmann Group 46 753
