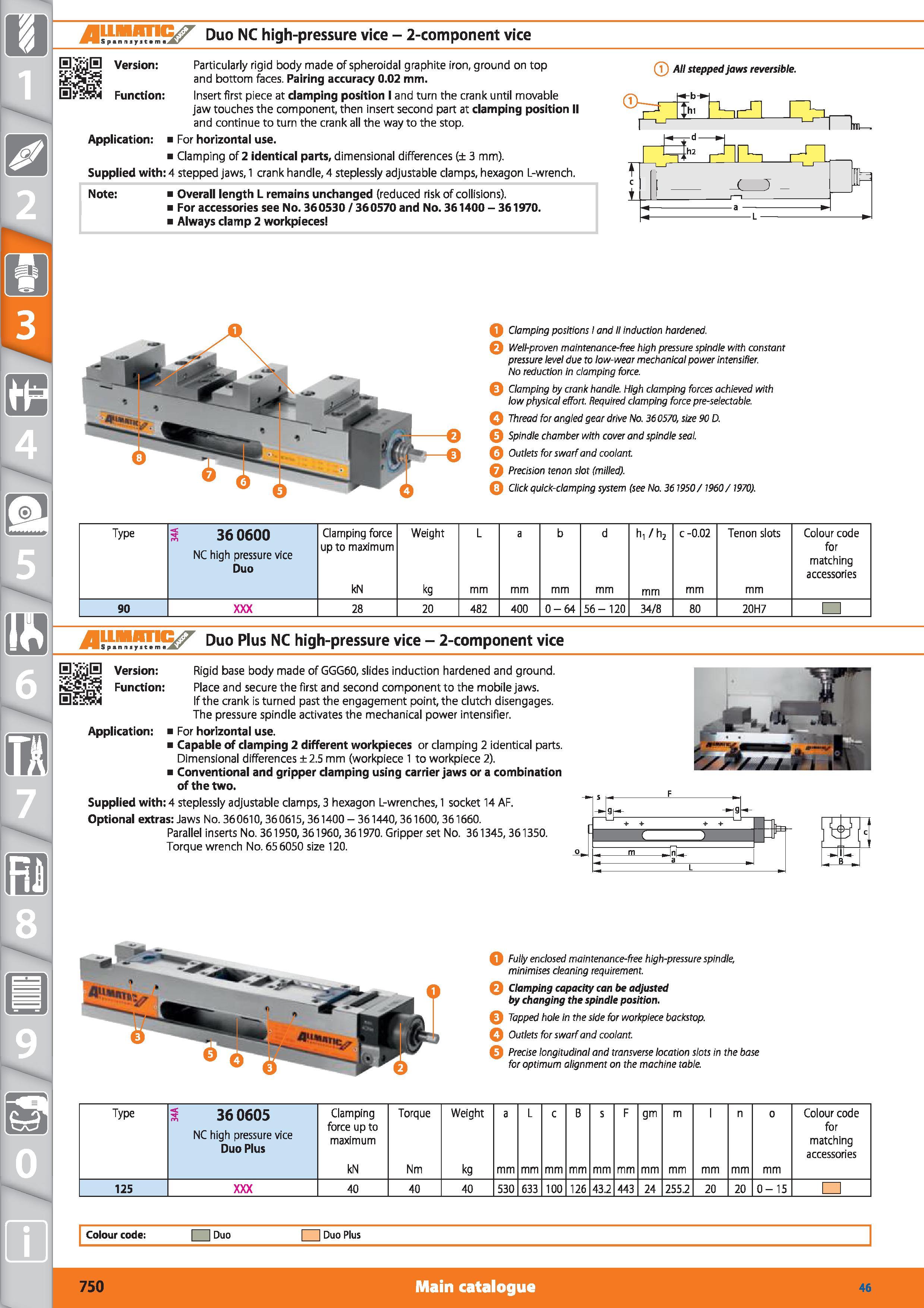

1 SF. r„.m.i Duo NC high-pressure vice - 2-component vice Particularly rigid body made of spheroidal graphite iron, ground on top and bottom faces. Pairing accuracy 0.02 mm. Insert first piece at clamping position I and turn the crank until movable jaw touches the component, then insert second part at clamping position II and continue to turn the crank all the way to the stop, i For horizontal use. Clamping of 2 identical parts, dimensional differences (± 3 mm). Supplied with 4 stepped jaws, 1 crank handle, 4 steplessly adjustable clamps, hexagon L-wrench. Function Application Note i Overall length L remains unchanged (reduced risk of collisions), i For accessories see No. 360530 / 360570 and No. 361400 - 361970. i Always clamp 2 workpieces (T All stepped jaws reversible. m Q Clamping positions I and II induction hardened. Well-proven maintenance-free high pressure spindle with constant pressure level due to low-wear mechanical power intensifier. No reduction in clamping force. Clamping by crank handle. High clamping forces achieved with low physical effort. Required clamping force pre-selectable. O Thread for angled gear drive No. 360570, size 90 D. Q Spindle chamber with cover and spindle seal. Q Outlets for swarf and coolant Q Precision tenon slot (milled). Q Click quick-clamping system (see No. 361950/1960/1970). Type 3 360600 NC high pressure vice Duo Clamping force up to maximum kN Weight kg L mm a mm b mm d mm h,/h2 mm c -0.02 mm Tenon slots mm Colour code for matching accessories 90 28 20 482 400 0-64 56-120 34/8 80 20H7 Duo Plus NC high-pressure vice - 2-component vice 0 Version Function Rigid base body made of GGG60, slides induction hardened and ground. Place and secure the first and second component to the mobile jaws. If the crank is turned past the engagement point, the clutch disengages. The pressure spindle activates the mechanical power intensifier. Application For horizontal use. Capable of clamping 2 different workpieces or clamping 2 identical parts. Dimensional differences ±2.5 mm (workpiece 1 to workpiece 2). Conventional and gripper clamping using carrier jaws or a combination of the two. Supplied with 4 steplessly adjustable clamps, 3 hexagon L-wrenches, 1 socket 14 AF. Optional extras Jaws No. 360610,360615,361400 - 361440,361600, 361660. Parallel inserts No. 361950,361960,361970. Gripper set No. 361345,361350. Torque wrench No. 656050 size 120. -1g Q Fully enclosed maintenance-free high-pressure spindle, minimises cleaning requirement. Q Clamping capacity can be adjusted by changing the spindle position. Tapped hole In the side for workpiece backstop. Outlets for swarf and coolant. Precise longitudinal and transverse location slots in the base for optimum alignment on the machine table. Type 3 360605 NC high pressure vice Duo Plus Clamping force up to maximum Torque Weight a L c B s F gm m 1 n 0 Colour code for matching accessories kN Nm kg mm 125 40 40 40 530 633 100 126 43.2 443 24 255.2 20 20 0-15 Colour code I Duo I Duo Plus 750 Main catalogue
