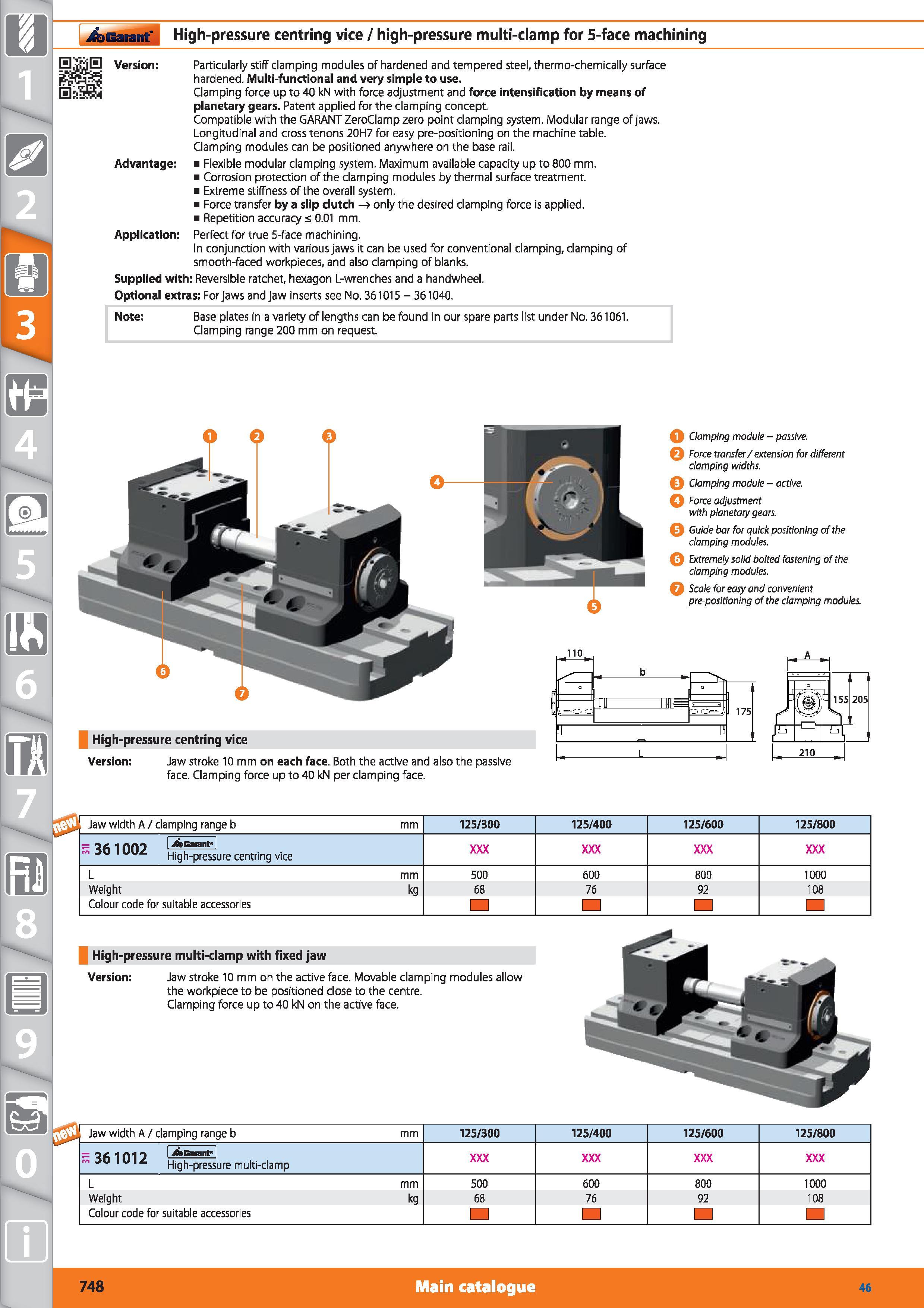

Garant High-pressure centring vice / high-pressure multi-damp for 5-face machining Version Particularly stiff clamping modules of hardened and tempered steel, thermo-chemically surface hardened. Multi-functional and very simple to use. Clamping force up to 40 kN with force adjustment and force intensification by means of planetary gears. Patent applied for the clamping concept. Compatible with the GARANT ZeroClamp zero point clamping system. Modular range of jaws. Longitudinal and cross tenons 20H7 for easy pre-positioning on the machine table. Clamping modules can be positioned anywhere on the base rail. Advantage Flexible modular clamping system. Maximum available capacity up to 800 mm. Corrosion protection of the clamping modules by thermal surface treatment. Extreme stiffness of the overall system. Force transfer by a slip dutch > only the desired clamping force is applied. Repetition accuracy <, 0.01 mm. Application Perfect for true 5-face machining. In conjunction with various jaws it can be used for conventional clamping, clamping of smooth-faced workpieces, and also clamping of blanks. Supplied with Reversible ratchet, hexagon L-wrenches and a handwheel. Optional extras For jaws and jaw inserts see No. 361015 - 361040. Note Base plates in a variety of lengths can be found in our spare parts list under No. 361061. Clamping range 200 mm on request. High-pressure centring vice Version Jaw stroke 10 mm on each face. Both the active and also the passive face. Clamping force up to 40 kN per clamping face. 1 b i - H J2- 175 I 1 II II L Jaw width A / clamping range b mm 125/300 125/400 125/600 125/800 - 1 r)f 7 1 Giranf 1 m ao uuz High-pressure centring vice L mm 500 600 800 1000 Weight kg 68 76 92 108 Colour code for suitable accessories High-pressure multi-damp with fixed jaw Version Jaw stroke 10 mm on the active face. Movable clamping modules allow the workpiece to be positioned close to the centre. Clamping force up to 40 kN on the active face. Jaw width A / clamping range b mm 125/300 125/400 125/600 125/800 “361012 High-pressure multi-damp L mm 500 600 800 1000 Weight kg 68 76 92 108 Colour code for suitable accessories Q Clamping module - passive. Force transfer / extension for different clamping widths. Clamping module - active. ( Force adjustment with planetary gears. Guide bar for quick positioning of the clamping modules. Extremely solid bolted fastening of the clamping modules. Scale for easy and convenient pre-positioning of the clamping modules. 748 Main catalogue Hoffmann Group 46
