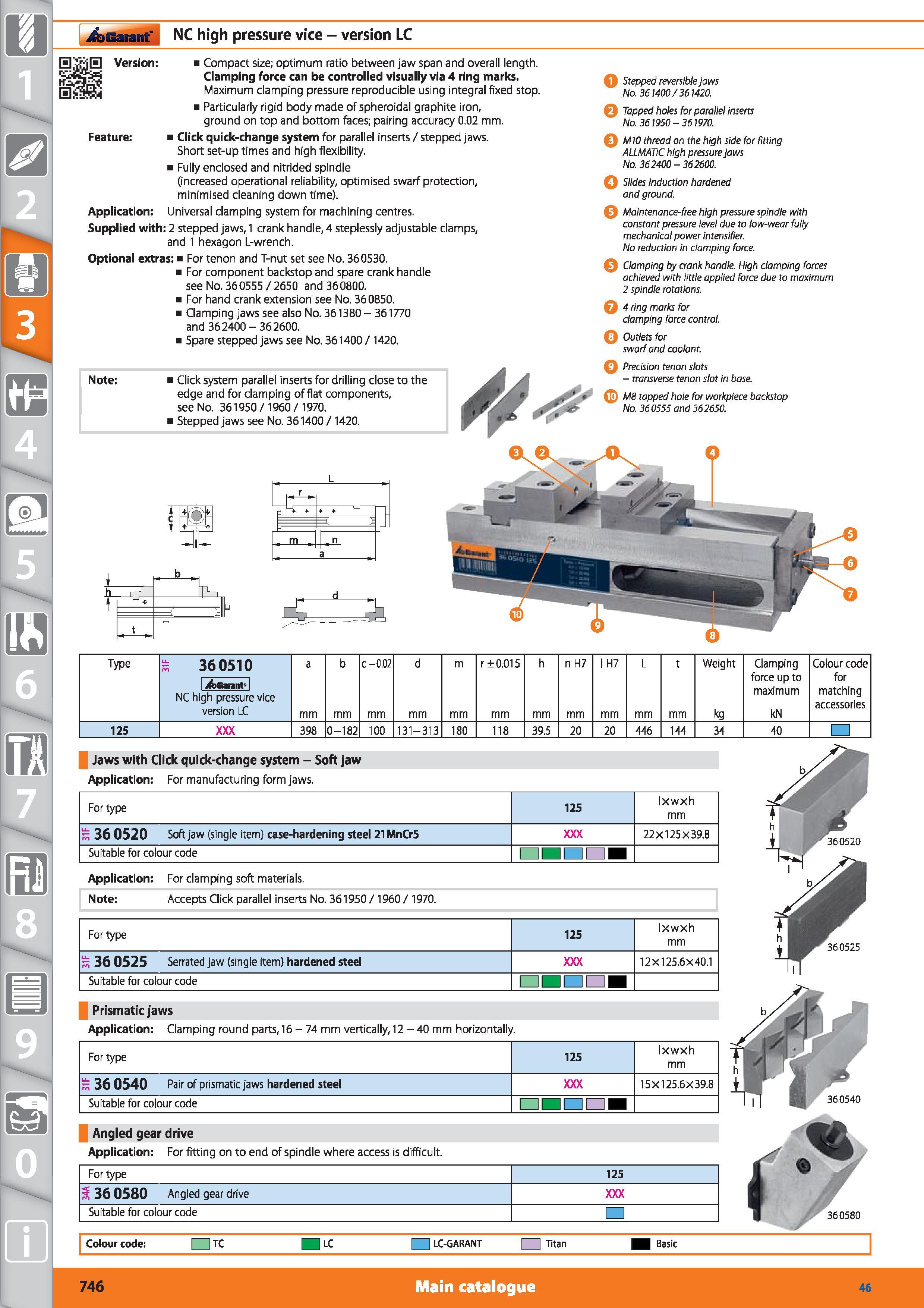

Garant NC high pressure vice - version LC Version Compact size; optimum ratio between jaw span and overall length. Clamping force can be controlled visually via 4 ring marks. Maximum clamping pressure reproducible using integral fixed stop. Particularly rigid body made of spheroidal graphite iron, ground on top and bottom faces; pairing accuracy 0.02 mm. Feature Click quick-change system for parallel inserts / stepped jaws. Short set-up times and high flexibility. Fully enclosed and nitrided spindle (increased operational reliability, optimised swarf protection, minimised cleaning down time). Application Universal clamping system for machining centres. Supplied with 2 stepped jaws, 1 crank handle, 4 steplessly adjustable clamps, and 1 hexagon L-wrench. Optional extras For tenon and T-nut set see No. 360530. For component backstop and spare crank handle see No. 360555/2650 and 360800. For hand crank extension see No. 360850. Clamping jaws see also No. 361380 - 361770 and 362400-362600. Spare stepped jaws see No. 361400 / 1420. Note Click system parallel inserts for drilling close to the edge and for clamping of flat components, see No. 361950/1960/1970. Stepped jaws see No. 361400 /1420. Q Stepped reversible jaws No. 361400/361420. Q Tapped holes for parallel inserts No. 361950-361970. Q M10 thread on the high side for fitting ALLMATIC high pressure jaws No. 362400 - 362600. Q Slides induction hardened and ground. Maintenance-free high pressure spindle with constant pressure level due to low-wear fully mechanical power intensifier. No reduction In clamping force. Q Clamping by crank handle. High clamping forces achieved with little applied force due fo maximum 2 spindle rotations. Q 4 ring marks for clamping force control. Q Outlets for swarf and coolant. Q Precision tenon slots - transverse tenon slot in base. M8 tapped hole for workpiece backstop No. 360555 and 362650. IC Type S 360510 j&Gannt" 1 NC high pressure vice version LC a mm b mm c -0.02 mm d mm m mm r ±0.015 mm h mm n H7 mm I H7 mm L mm t mm Weight kg Clamping force up to maximum kN Colour code for matching accessories 125 398 0-182 100 131-313 180 118 39.5 20 20 446 144 34 40 Jaws with Click quick-change system - Soft jaw Application For manufacturing form jaws. For type 125 Ixwxh mm 36 0520 Soft jaw (sing le item) case-hardening steel 21 MnCr5 22x125x39.8 Suitable for colour code I M II M Application For clamping soft materials. Note Accepts Click parallel inserts No. 361950/1960/ 1970. For type 125 Ixwxh mm 36 0525 Serrated jaw (single item) hardened steel 12x125.6x 40.1 Suitable for colour code I M II M Prismatic jaws Application Clamping round parts, 16 - 74 mm vertically, 12 - 40 mm horizontally. For type 125 Ixwxh mm 36 0540 Pair of prismatic jaws hardened steel 15X125.6X 39.8 Suitable for colour code 1 II Angled gear drive Application For fitting on to end of spindle where access is difficult. For type 125 S 36 0580 Angled gear drive Suitable for colour code Colour code TC I LC LC-GARANT Titan Basic 746 Main catalogue Hoffmann Group 46 360525 360520 360540
