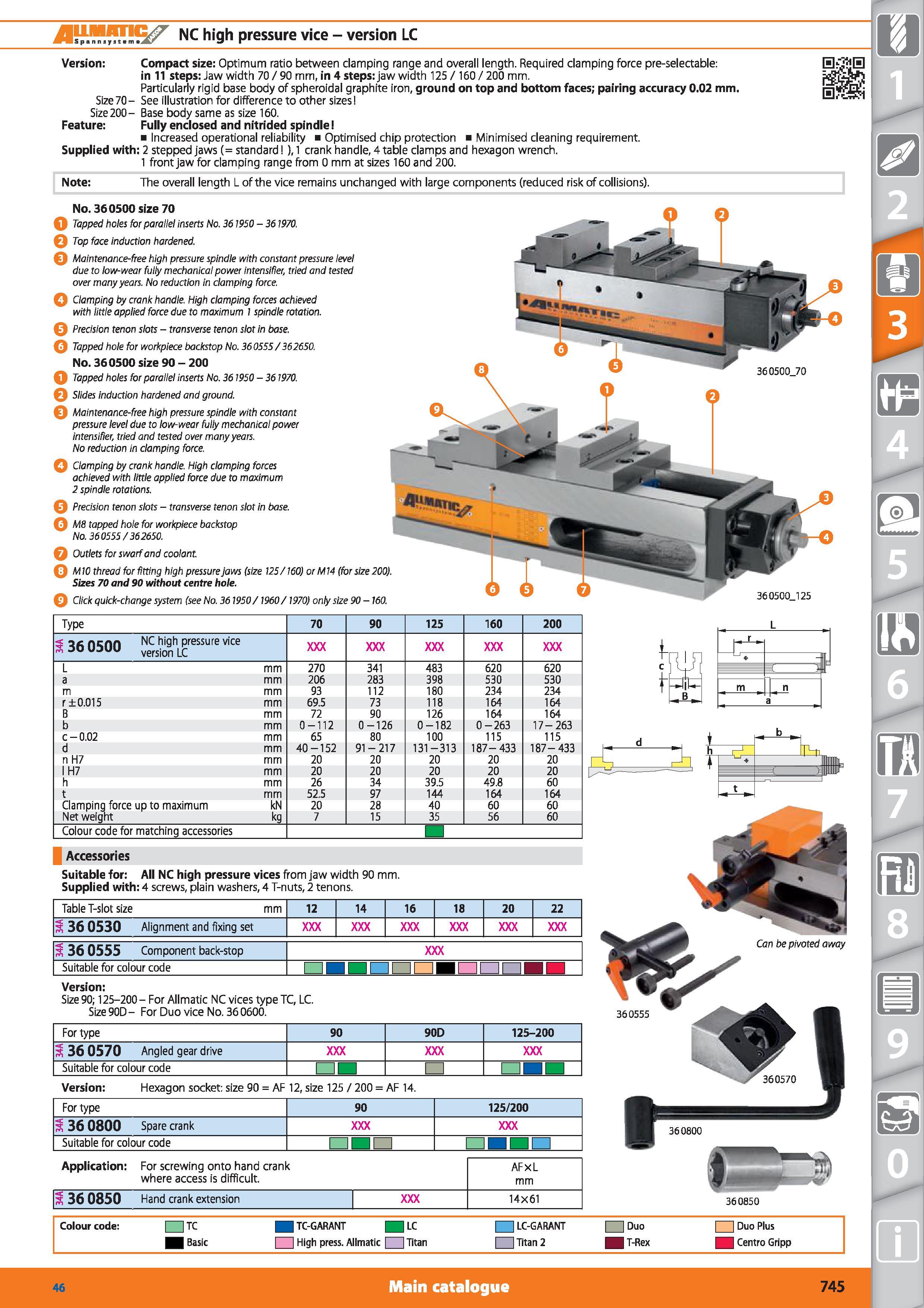

NC high pressure vice - version LC Version Compact size Optimum ratio between clamping range and overall length. Required clamping force pre-selectable in 11 steps Jaw width 70 / 90 mm, in 4 steps jaw width 125 / 160 / 200 mm. Particularly rigid base body of spheroidal graphite iron, ground on top and bottom faces; pairing accuracy 0.02 mm. Size70- See illustration for difference to other sizes Size 200- Base body same as size 160. Feature Fully enclosed and nitrided spindle Increased operational reliability Optimised chip protection Minimised cleaning requirement. Supplied with 2 stepped jaws (= standard ), 1 crank handle, 4 table clamps and hexagon wrench. 1 front jaw for clamping range from 0 mm at sizes 160 and 200. Note The overall length L of the vice remains unchanged with large components (reduced risk of collisions). No. 360500 size 70 Q Tapped holes for parallel inserts No. 361950 - 361970. Q Top face induction hardened. Q Maintenance-free high pressure spindle with constant pressure level due to low-wear fully mechanical power intensifier, tried and tested over many years. No reduction in clamping force. Q Clamping by crank handle. High clamping forces achieved with little applied force due to maximum I spindle rotation. Q Precision tenon slots - transverse tenon slot In base. Q Tapped hole for workpiece backstop No. 360555 / 362650. No. 360500 size 90 - 200 Q Tapped holes for parallel inserts No. 361950 - 361970. Q Slides induction hardened and ground. Q Maintenance-free high pressure spindle with constant pressure level due to low-wear fully mechanical power intensifier, tried and tested over many years. No reduction in clamping force. Q Clamping by crank handle. High clamping forces achieved with little applied force due to maximum 2 spindle rotations. Q Precision tenon slots - transverse tenon slot in base. M8 tapped hole for workpiece backstop No. 360555 / 362650. Q Outlets for swarf and coolant Q M10 thread for fitting high pressure jaws (size 125/160) orM14 (for size 200). Sizes 70 and 90 without centre hole. Q Click quick-change system (see No. 361950/1960/1970) only size 90 -160. Type 70 90 125 160 200 < nrnn NC high pressure vice 36 0500 version LC L mm 270 341 483 620 620 a mm 206 283 398 530 530 m mm 93 112 180 234 234 r ±0.015 mm 69.5 73 118 164 164 B mm 72 90 126 164 164 b mm 0-112 0-126 0-182 0-263 17-263 c - 0.02 mm 65 80 100 115 115 d mm 40-152 91-217 131-313 187 - 433 187-433 n H7 mm 20 20 20 20 20 IH7 mm 20 20 20 20 20 h mm 26 34 39.5 49.8 60 t mm 52.5 97 144 164 164 Clamping force up to maximum Net weight kN 20 28 40 60 60 kg 7 15 35 56 60 Colour code for matching accessories d j d TU, r Accessories Suitable for All NC high pressure vices from jaw width 90 mm. Supplied with 4 screws, plain washers, 4 T-nuts, 2 tenons. Table T-slot size mm 12 14 16 18 20 22 S 36 0530 Alignment and fixing set jsj 36 0555 Component back-stop Suitable for colour code IZ Version Size 90; 125-200 - For Allmatic NC vices type TC, LC. Size90D- For Duo vice No. 360600. For type 90 90D 125-200 3 36 0570 Angled gear drive Suitable for colour code Version Hexagon socket size 90 AF 12, size 125 / 200 AF 14. For type 90 125/200 3 36 0800 Spare crank Suitable for colour code Application For screwing onto hand crank where access is difficult. 1360850 Hand crank extension AFxL mm 14x61 360850 Colour code TC TC-GARANT LC LC-GARANT Duo Duo Plus Basic 1 High press. Allmatic Titan Titan 2 T-Rex Centro Gripp Main catalogue Hoffmann Group 46 745
