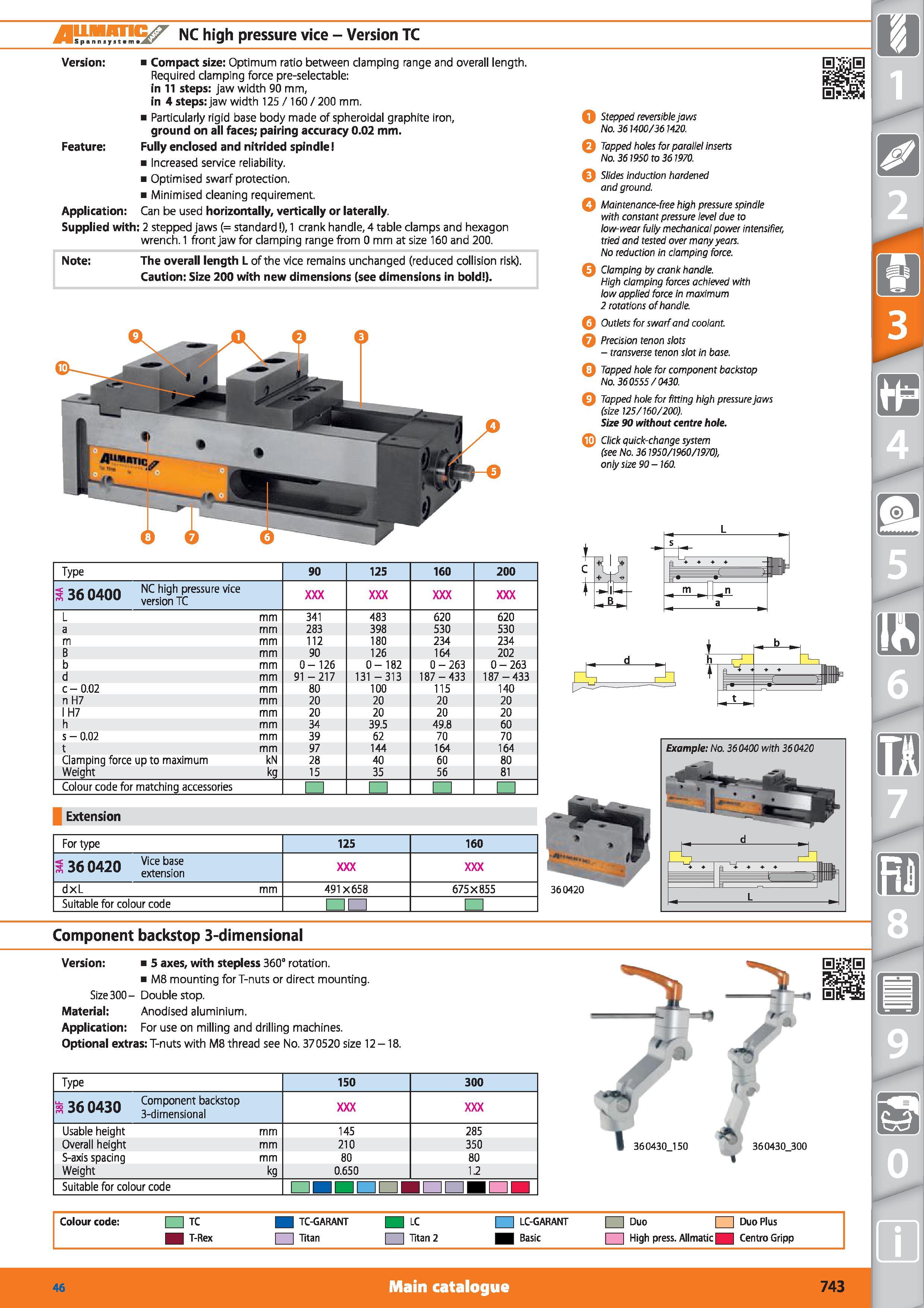

NC high pressure vice - Version TC Version Compact size Optimum ratio between clamping range and overall length. Required clamping force pre-selectable in 11 steps jaw width 90 mm, in 4 steps jaw width 125 / 160/200 mm. Particularly rigid base body made of spheroidal graphite iron, ground on all faces; pairing accuracy 0.02 mm. Feature Fully enclosed and nitrided spindle Increased service reliability. Optimised swarf protection. Minimised cleaning requirement. Application Can be used horizontally, vertically or laterally. Supplied with 2 stepped jaws (= standard ), 1 crank handle, 4 table clamps and hexagon wrench. 1 front jaw for clamping range from 0 mm at size 160 and 200. Note The overall length L of the vice remains unchanged (reduced collision risk). Caution Size 200 with new dimensions (see dimensions in bold ). Q Stepped reversible jaws No. 361400/361420. Tapped holes for parallel Inserts No. 361950 to 361970. Q Slides Induction hardened and ground. Q Maintenance-free high pressure spindle with constant pressure level due to hw-wear fully mechanical power intensifier, tried and tested over many years. No reduction in clamping force. Clamping by crank handle. High clamping forces achieved with low applied force In maximum 2 rotations of handle O Outlets for swarf and coolant. Q Precision tenon slots - transverse tenon slot in base. O Tapped hole for component backstop No. 360555 / 0430. Q Tapped hole for fitting high pressure jaws (size 125/160/200). Size 90 without centre hole. (J) Click quick-change system (see No. 361950/1960/1970), only size 90 -160. Type 90 125 160 200 36 0400 NC high pressure vice m v-rv/v/ verS 0n JC L mm 341 483 620 620 a mm 283 398 530 530 m mm 112 180 234 234 B mm 90 126 164 202 b mm 0-126 0-182 0-263 0-263 d mm 91-217 131 -313 187-433 187-433 c - 0.02 mm 80 100 115 140 n H7 mm 20 20 20 20 IH7 mm 20 20 20 20 h mm 34 39.5 49.8 60 s - 0.02 mm 39 62 70 70 t mm 97 144 164 164 Clamping force up to maximum kN 28 40 60 80 Weight kg 15 35 56 81 Colour code for matching accessories Extension For type 125 160 3 36 0420 Vice base m extension dxL mm 491X658 675X855 Suitable for colour code 360420 Component backstop 3-dimensional Version 5 axes, with stepless 360° rotation. M8 mounting for T-nuts or direct mounting. Size 300- Double stop. Material Anodised aluminium. Application For use on milling and drilling machines. Optional extras T-nuts with M8 thread see No. 370520 size 12-18. Type 150 300 n/ian Component backstop 3 30 U U 3-dimensional Usable height mm 145 285 Overall height mm 210 350 S-axis spacing mm 80 80 Weight kg 0.650 1.2 Suitable for colour code 360430_300 Colour code TC TC-GARANT LC LC-GARANT Duo Duo Plus T-Rex Titan Titan 2 Basic High press. Allmatic Centro Gripp Example No. 360400 with 360420 Main catalogue Hoffmann Group 46 743
