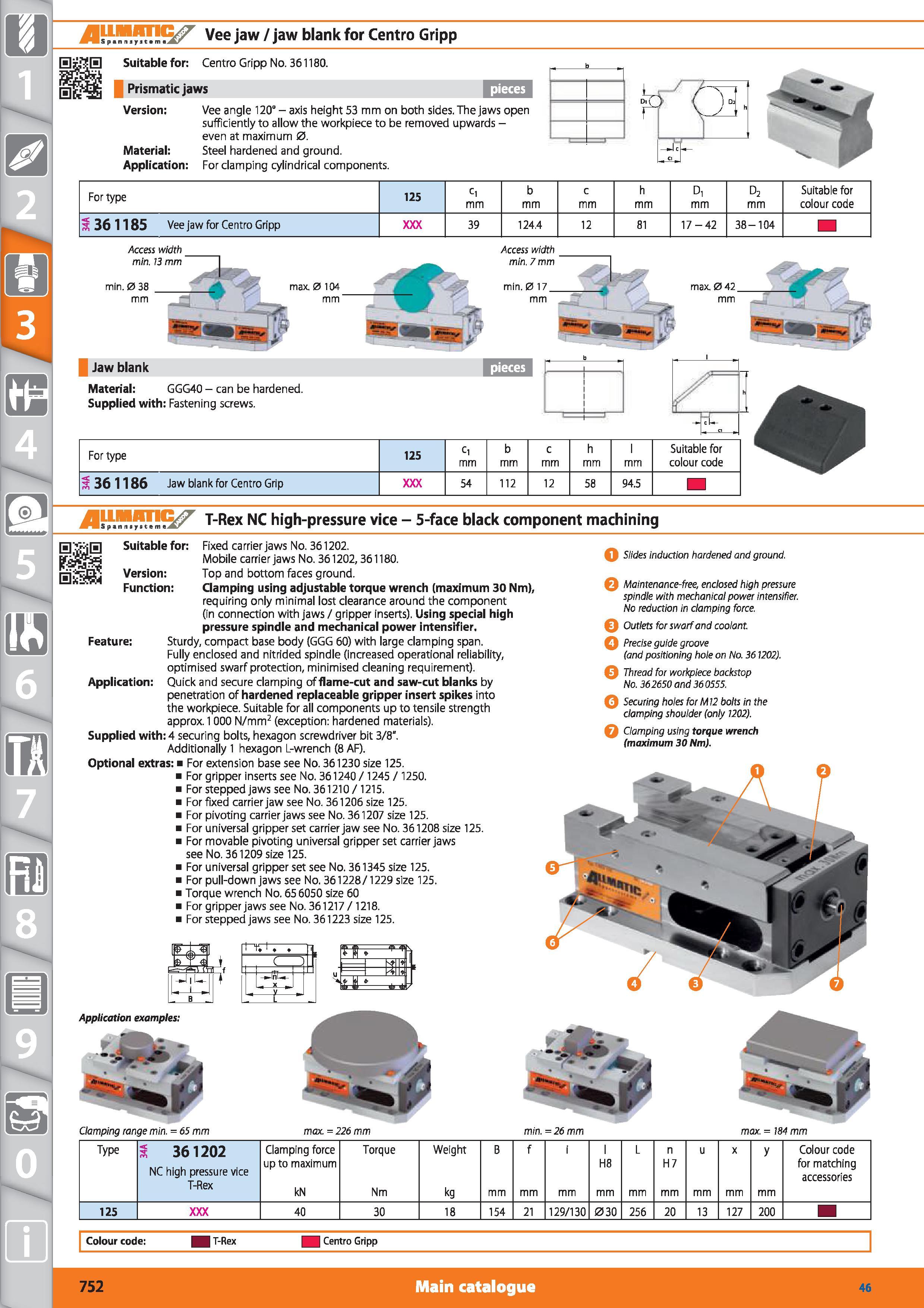

1 SF. r„.m.i Vee jaw/jaw blank for Centro Gripp Suitable for Centro Gripp No. 361180. Prismatic jaws Version Vee angle 120° - axis height 53 mm on both sides. The jaws open sufficiently to allow the workpiece to be removed upwards -even at maximum 0. Material Steel hardened and ground. Application For clamping cylindrical components. Di ( For type 125 Cl mm b mm c mm h mm D, mm d2 mm Suitable for colour code 3 36 1185 Vee jaw for Centro Gripp 39 1244 12 81 17-42 38-104 Access width min. 13 mm Access width min. 0 38 mm max. 0 104 mm Jaw blank Material GGG40 - can be hardened. Supplied with Fastening screws. For type ; 36 1186 Jaw blank for Centro Grip 125 Cl mm 54 b mm 112 c mm 12 h mm 58 94.5 Suitable for colour code T-Rex NC high-pressure vice - 5-face black component machining Suitable for Version Function Feature Application Fixed carrier jaws No. 361202. Mobile carrier jaws No. 361202,361180. Top and bottom faces ground. Clamping using adjustable torque wrench (maximum 30 Nm), requiring only minimal lost clearance around the component (in connection with jaws / gripper inserts). Using special high pressure spindle and mechanical power intensifier. Sturdy, compact base body (GGG 60) with large clamping span. Fully enclosed and nitrided spindle (increased operational reliability, optimised swarf protection, minimised cleaning requirement). Quick and secure clamping of flame-cut and saw-cut blanks by penetration of hardened replaceable gripper insert spikes into the workpiece. Suitable for all components up to tensile strength approx. 1000 N/mm2 (exception hardened materials). Supplied with 4 securing bolts, hexagon screwdriver bit 3/8". Additionally 1 hexagon L-wrench (8 AF). Optional extras For extension base see No. 361230 size 125. For gripper inserts see No. 361240/1245 / 1250. For stepped jaws see No. 361210/1215. For fixed carrier jaw see No. 361206 size 125. For pivoting carrier jaws see No. 361207 size 125. For universal gripper set carrier jaw see No. 361208 size 125. For movable pivoting universal gripper set carrier jaws see No. 361209 size 125. For universal gripper set see No. 361345 size 125. For pull-down jaws see No. 361228/1229 size 125. Torque wrench No. 656050 size 60 For gripper jaws see No. 361217 /1218. For stepped jaws see No. 361223 size 125. Q Slides induction hardened and ground. Q Maintenance-free, enclosed high pressure spindle with mechanical power intensifier. No reduction in clamping force. Q Outlets for swarf and coolant Q Precise guide groove (and positioning hole on No. 361202 Thread for workpiece backstop No. 362650 and 360555. Q Securing holes for M12 bolts in the clamping shoulder (only 1202). Q Clamping using torque wrench (maximum 30 Nm). Application examples r Clamping range min. -65 mm 1 1 C ) ifc-tnL X - L Ff max. - 226 mm min. 26 mm Type 3 361202 NC high pressure vice T-Rex Clamping force up to maximum kN Torque Nm Weight kg B mm f mm i mm 1 H8 mm L mm n H7 mm u mm X mm y mm Colour code for matching accessories 125 40 30 18 154 21 129/130 030 256 20 13 127 200 Colour code I T-Rex Centro Gripp 752 Main catalogue Hoffmann Group 46 max 0 42 mm max. 184 mm
