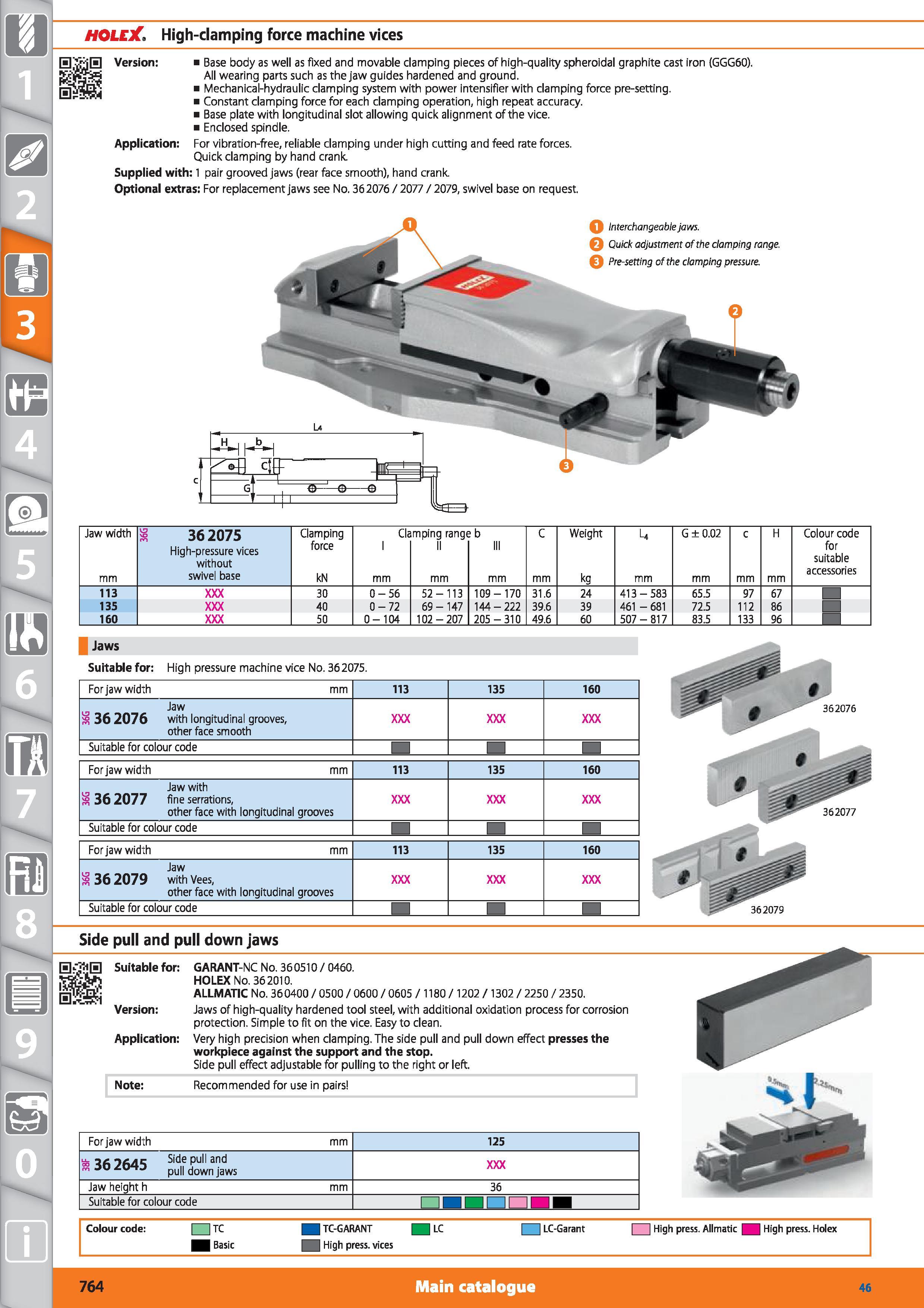

HOLEX High-damping force machine vices HJrjiH Version Base body as well as fixed and movable clamping pieces of high-quality spheroidal graphite cast iron (GGG60). All wearing parts such as the jaw guides hardened and ground. Mechanical-hydraulic clamping system with power intensifier with clamping force pre-setting. Constant clamping force for each clamping operation, high repeat accuracy. Base plate with longitudinal slot allowing quick alignment of the vice. Enclosed spindle. Application For vibration-free, reliable clamping under high cutting and feed rate forces. Quick clamping by hand crank Supplied with 1 pair grooved jaws (rear face smooth), hand crank Optional extras For replacement jaws see No. 362076 / 2077 / 2079, swivel base on request. o Interchangeable jaws. Quick adjustment of the clamping range. Pre-setting of the clamping pressure 8 0 m Jaw width mm s 362075 High-pressure vices without swivel base Clamping force kN Clc I mm mping rang< II mm b III mm C mm Weight kg u mm G ± 0.02 mm c mm H mm Colour code for suitable accessories 113 30 0-56 52-113 109-170 31.6 24 413-583 65.5 97 67 135 40 0-72 69 -147 144-222 39.6 39 461 - 681 72.5 112 86 160 50 0-104 102-207 205 -310 49.6 60 507-817 83.5 133 96 Jaws Suitable for High pressure machine vice No. 362075. For jaw width mm 113 135 160 Jaw S 36 2076 with longitudinal grooves, other face smooth Suitable for colour code For jaw width mm 113 135 160 Jaw with S 36 2077 fine serrations, other face with longitudinal grooves Suitable for colour code For jaw width mm 113 135 160 Jaw S 36 2079 with Vees, other face with longitudinal grooves Suitable for colour code 362076 362079 Side pull and pull down jaws Suitable for GARANT-NC No. 360510 / 0460. HOLEX No. 362010. ALLMATIC No. 360400 / 0500 / 0600 / 0605 / 1180 / 1202 / 1302 / 2250 / 2350. Version Jaws of high-quality hardened tool steel, with additional oxidation process for corrosion protection. Simple to fit on the vice. Easy to clean. Application Very high precision when clamping. The side pull and pull down effect presses the workpiece against the support and the stop. Side pull effect adjustable for pulling to the right or left. Note Recommended for use in pairs For jaw width mm 125 362645 Sid.f.Pulland m pull down jaws Jaw height h mm 36 Suitable for colour code Colour code TC TC-GARANT LC LC-Garant High press. Allmatic High press. Holex Basic High press, vices 764 Main catalogue Hoffmann Group 46
