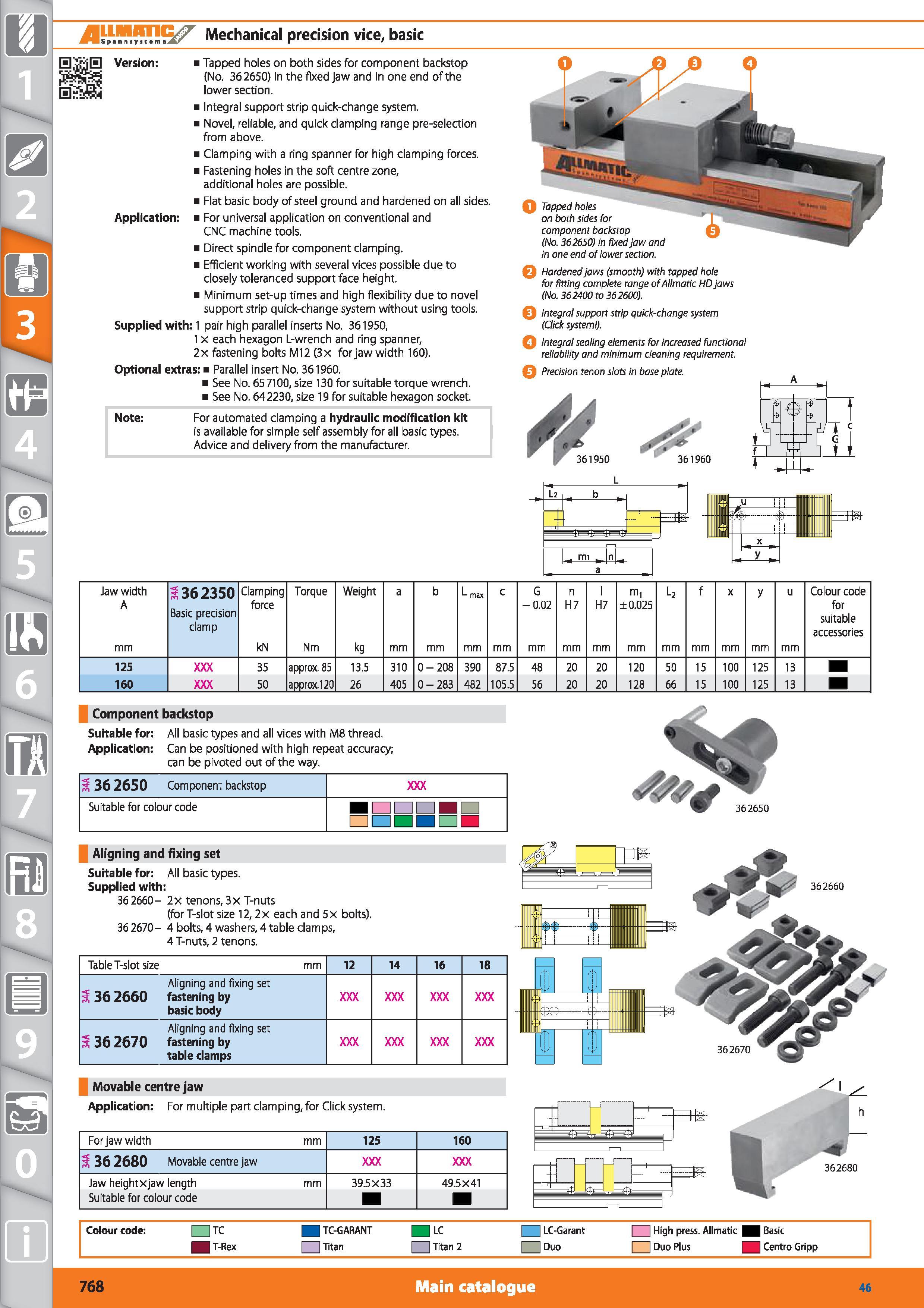

1 SF. r„.m.i Mechanical precision vice, basic Version Tapped holes on both sides for component backstop (No. 362650) in the fixed jaw and in one end of the lower section. Integral support strip quick-change system. Novel, reliable, and quick clamping range pre-selection from above. Clamping with a ring spanner for high clamping forces. Fastening holes in the soft centre zone, additional holes are possible. Flat basic body of steel ground and hardened on all sides. Application For universal application on conventional and CNC machine tools. Direct spindle for component clamping. Efficient working with several vices possible due to closely toleranced support face height. Minimum set-up times and high flexibility due to novel support strip quick-change system without using tools. Supplied with 1 pair high parallel inserts No. 361950, 1 x each hexagon L-wrench and ring spanner, 2x fastening bolts M12 (3x for jaw width 160). Optional extras Parallel insert No. 361960. See No. 657100, size 130 for suitable torque wrench. See No. 642230, size 19 for suitable hexagon socket. Note For automated clamping a hydraulic modification kit is available for simple self assembly for all basic types. Advice and delivery from the manufacturer. Jaw width A s 36 2350 Basic precision clamp Clamping force Torque Weight a b L max c G -0.02 n H7 I H7 m, ±0.025 l2 f X y u Colour code for suitable accessories mm kN Nm kg mm 125 35 approx. 85 13.5 310 0-208 390 87.5 48 20 20 120 50 15 100 125 13 160 50 approx.120 26 405 0-283 482 105.5 56 20 20 128 66 15 100 125 13 Component backstop Suitable for All basic types and all vices with M8 thread. Application Can be positioned with high repeat accuracy; can be pivoted out of the way. S 36 2650 Component backstop Suitable for colour code c Aligning and fixing set Suitable for All basic types. Supplied with 36 2660 - 2x tenons, 3x T-nuts (for T-slot size 12,2 x each and 5x bolts). 36 2670 - 4 bolts, 4 washers, 4 table clamps, 4 T-nuts, 2 tenons. Table T-slot size mm 12 14 16 18 1362660 Aligning and fixing set fastening by basic body 1362670 Aligning and fixing set fastening by table clamps Movable centre jaw Application For multiple part clamping, for Click system. /I For jaw width mm 125 160 jsi 36 2680 Movable centre jaw Jaw heightxjaw length mm 39.5X33 49.5X41 Suitable for colour code 362680 Colour code TC TC-GARANT LC LC-Garant High press. Allmatic Basic T-Rex Titan Titan 2 Duo 1 Duo Plus Centro Gripp 768 Main catalogue Hoffmann Group 46 o e Tapped holes on both sides for component backstop (No. 362650) in fixed jaw and in one end of lower section. Hardened jaws (smooth) with tapped hole for fitting complete range of Allmatic HD jaws (No. 362400 to 362600). Integral support strip quick-change system (Click system ). Integral sealing elements for increased functional reliability and minimum cleaning requirement. Precision tenon slots in base plate. 362660 362670
