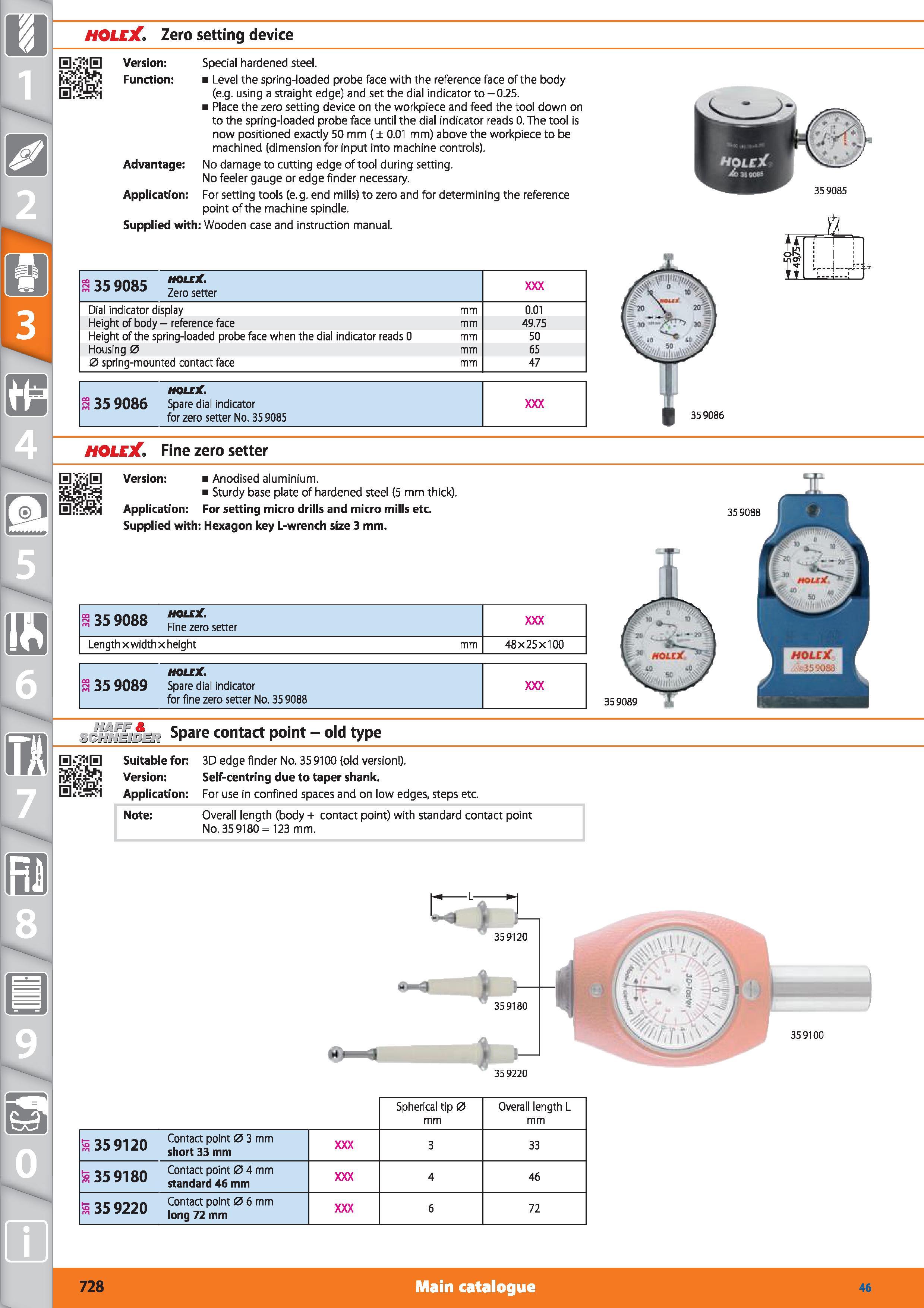

1 HOLEX Zero setting device Version Special hardened steel. Function Level the spring-loaded probe face with the reference face of the body (e.g. using a straight edge) and set the dial indicator to -0.25. Place the zero setting device on the workpiece and feed the tool down on to the spring-loaded probe face until the dial indicator reads 0. The tool is now positioned exactly 50 mm (± 0.01 mm) above the workpiece to be machined (dimension for input into machine controls). Advantage No damage to cutting edge of tool during setting. No feeler gauge or edge finder necessary. Application For setting tools (e.g. end mills) to zero and for determining the reference point of the machine spindle. Supplied with Wooden case and instruction manual. 35 9085 HOLCl(- 33 Zero setter Dial indicator display mm 0.01 Height of body - reference face mm 49.75 Height of the spring-loaded probe face when the dial indicator reads 0 mm 50 Housing 0 mm 65 0 spring-mounted contact face mm 47 HOLEX S 35 9086 Spare dial indicator for zero setter No. 35 9085 Tf ii j 359086 HOLEJCFine zero setter Version Anodised aluminium. Sturdy base plate of hardened steel (5 mm thick). Application For setting micro drills and micro mills etc. Supplied with Hexagon key L-wrench size 3 mm. 359088 S 35 9088 Length xwidthx height mm 48x25x100 holcjC. 35 9089 Spare dial indicator for fine zero setter No. 35 9088 359089 Spare contact point - old type Suitable for 3D edge finder No. 35 9100 (old version ). Version Self-centring due to taper shank. Application For use in confined spaces and on low edges, steps etc. Note Overall length (body + contact point) with standard contact point No. 359180= 123 mm. 359100 359220 Spherical tip 0 mm Overall length L mm 5 35 9120 Contact point 0 3 mm short 33 mm 3 33 5 35 9180 Contact point 0 4 mm standard 46 mm 4 46 35 9220 Contact point 0 6 mm long 72 mm 6 72 728 Main catalogue Hoffmann Group 46
