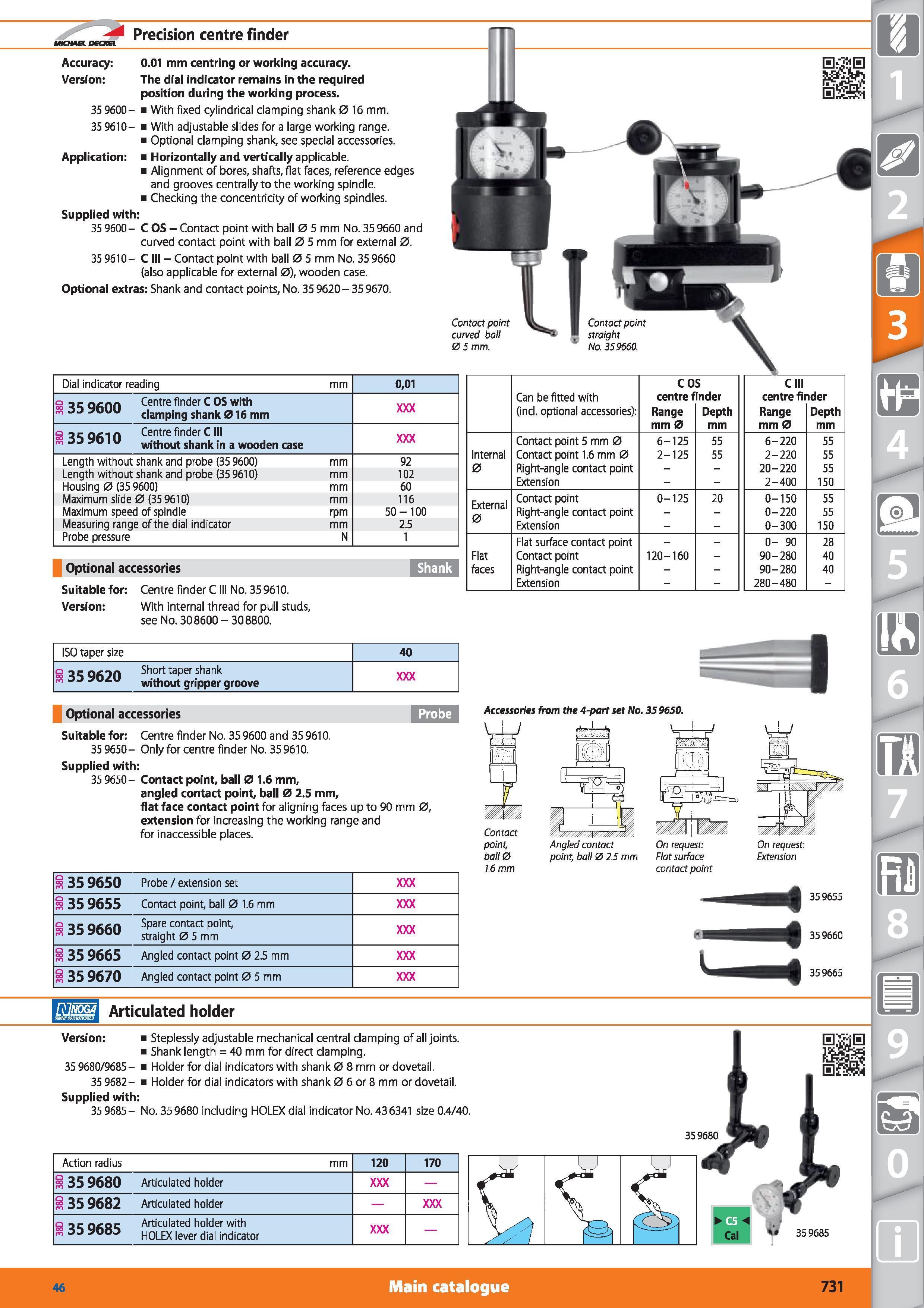

Precision centre finder 35 9600-35 9610- Application Accuracy 0.01 mm centring or working accuracy. Version The dial indicator remains in the required position during the working process. With fixed cylindrical clamping shank 0 16 mm. With adjustable slides for a large working range. Optional clamping shank, see special accessories. Horizontally and vertically applicable. Alignment of bores, shafts, flat faces, reference edges and grooves centrally to the working spindle. Checking the concentricity of working spindles. Supplied with 35 9600- C OS - Contact point with ball 0 5 mm No. 359660 and curved contact point with ball 0 5 mm for external 0. 35 9610- C III - Contact point with ball 0 5 mm No. 35 9660 (also applicable for external 0), wooden case. Optional extras Shank and contact points. No. 35 9620-35 9670. \ Contact point straight No. 359660. Dial indicator reading mm 0,01 3 ac Qfinn Centre finder C OS with 33 -'Duu clamping shank 016 mm q jt Qf- / Centre finder C III m without shank in a wooden case Length without shank and probe (35 9600) mm 92 Length without shank and probe (35 9610) mm 102 Housing 0(35 9600) mm 60 Maximum slide 0 (35 9610) mm 116 Maximum speed of spindle rpm 50-100 Measuring range of the dial indicator mm 2.5 Probe pressure N 1 Optional accessories Suitable for Centre finder C III No. 35 9610. Version With internal thread for pull studs, see No. 308600-308800. Optional accessories COS cm Can be fitted with centre finder centre finder (ind. optional accessories) Range Depth Range Depth mm 0 mm 0 mm Contact point 5 mm 0 6-125 55 6-220 55 Internal Contact point 1.6 mm 0 2-125 55 2-220 55 0 Right-angle contact point 20-220 55 Extension 2-400 150 Contact point 0-125 20 0-150 55 0 Right-angle contact point 0-220 55 Extension 0-300 150 Flat surface contact point 0- 90 28 Flat Contact point 120-160 - 90 - 280 40 faces Right-angle contact point 90 - 280 40 Extension 280-480 - ISO taper size 40 3 ac qfion ort taPer shank 33 yozv wjthout gripper groove Accessories from the 4-part set No. 359650. Suitable for Centre finder No. 35 9600 and 35 9610. 35 9650- Only for centre finder No. 35 9610. Supplied with 35 9650- Contact point, ball 0 1.6 mm, angled contact point, ball 0 2.5 mm, flat face contact point for aligning faces up to 90 mm 0, extension for increasing the working range and for inaccessible places. "359650 Probe / extension set s 35 9655 Contact point, ball 0 1.6 mm s 35 9660 Spare contact point, straight 0 5 mm 359665 Angled contact point 0 2.5 mm “359670 Angled contact point 0 5 mm Contact point, ball0 16 mm Angled contact point, ball 0 2.5 mm On request Flat surface contact point On request Extension 359655 359660 359665 RlNOGA Articulated holder Version Steplessly adjustable mechanical central clamping of all joints. Shank length 40 mm for direct clamping. 35 9680/9685 - Holder for dial indicators with shank 0 8 mm or dovetail. 35 9682- Holder for dial indicators with shank 0 6 or 8 mm or dovetail. Supplied with 35 9685- No. 359680 including HOLEX dial indicator No. 436341 size 0.4/40. 359680 Action radius mm 120 170 "359680 Articulated holder "359682 Articulated holder H 35 9685 Articulated holder with HOLEX lever dial indicator ff Cal 359685 Main catalogue Hoffmann Group 46 731
