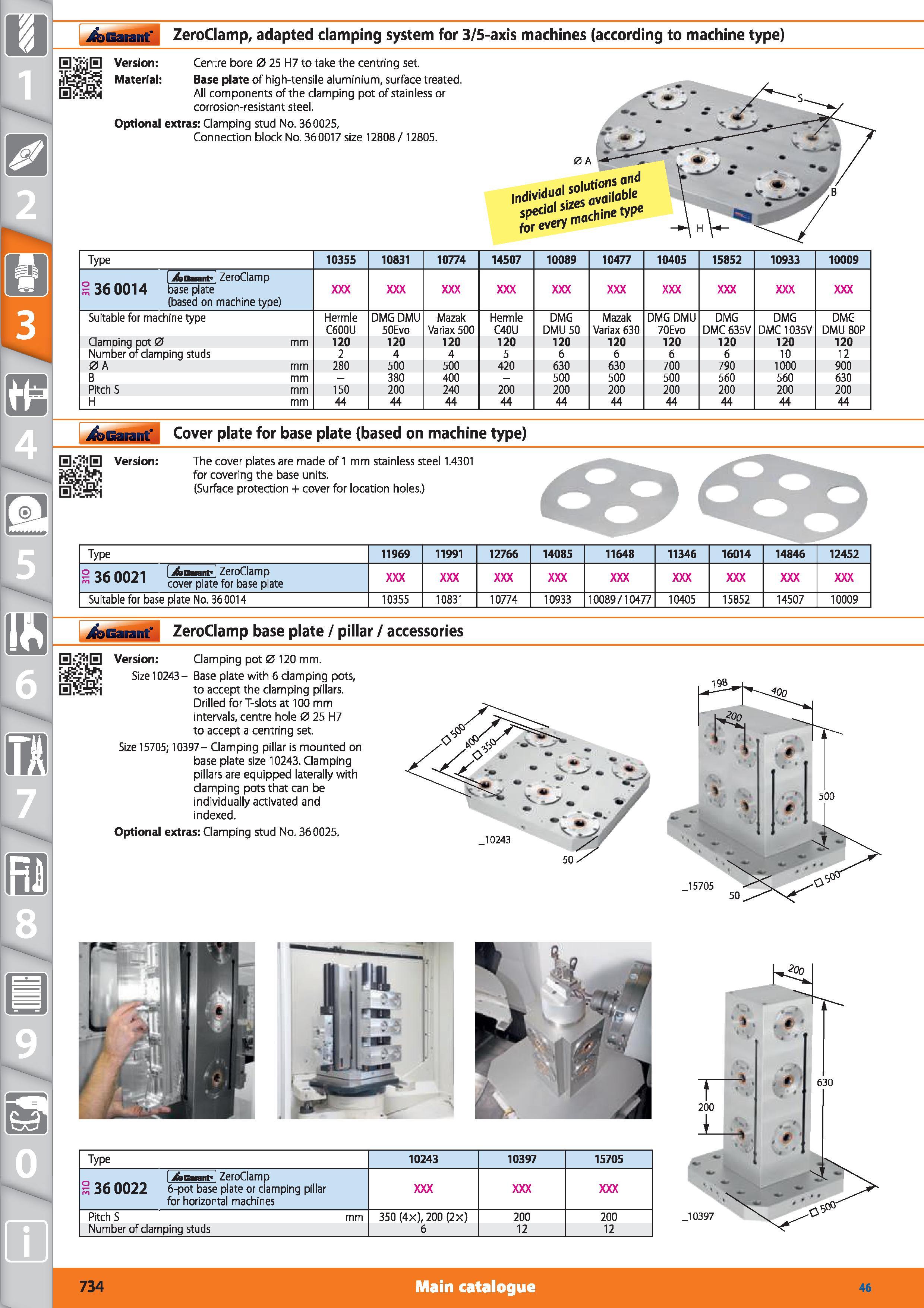

Garant ZeroClamp, adapted clamping system for 3/5-axis machines (according to machine type) Version Material Centre bore 0 25 H7 to take the centring set. Base plate of high-tensile aluminium, surface treated. All components of the clamping pot of stainless or corrosion-resistant steel. Optional extras Clamping stud No. 360025, Connection block No. 360017 size 12808/ 12805. 0 A Type 10355 10831 10774 14507 10089 10477 10405 15852 10933 10009 jfecnnt-1 ZeroClamp i 360014 baseplate (based on machine type) Suitable for machine type Hermle DMG DMU Mazak Hermle DMG Mazak DMG DMU DMG DMG DMG C600U 50Evo Variax500 C40U DMU 50 Variax 630 70Evo DMC 635V DMC 1035V DMU 80P Clamping pot 0 mm 120 120 120 120 120 120 120 120 120 120 Number of clamping studs 2 4 4 5 6 6 6 6 10 12 0 A mm 280 500 500 420 630 630 700 790 1000 900 B mm 380 400 500 500 500 560 560 630 Pitch S mm 150 200 240 200 200 200 200 200 200 200 H mm 44 44 44 44 44 44 44 44 44 44 j&Gaiant Cover plate for base plate (based on machine type) Version Mfi The cover plates are made of 1 mm stainless steel 1.4301 for covering the base units. (Surface protection + cover for location holes.) Type 11969 11991 12766 14085 11648 11346 16014 14846 12452 o nnni Garant ZeroClamp m 30 cover plate for base plate Suitable for base plate No. 360014 10355 10831 10774 10933 10089/10477 10405 15852 14507 10009 IDF j&Garant" ZeroClamp base plate / pillar / accessories Version Size 10243 Clamping pot 0 120 mm. Base plate with 6 clamping pots, to accept the clamping pillars. Drilled for T-slots at 100 mm intervals, centre hole 0 25 H7 to accept a centring set. Size 15705; 10397- Clamping pillar is mounted on base plate size 10243. Clamping pillars are equipped laterally with clamping pots that can be individually activated and indexed. Optional extras Clamping stud No. 360025. 10243 lift Type 10243 10397 15705 jfecnnt- ZeroClamp s; 36 0022 6-pot base plate or clamping pillar for horizontal machines Pitch S mm 350 (4x), 200 (2x) 200 200 Number of clamping studs 6 12 12 J0397 Main catalogue Hoffmann Group 46
