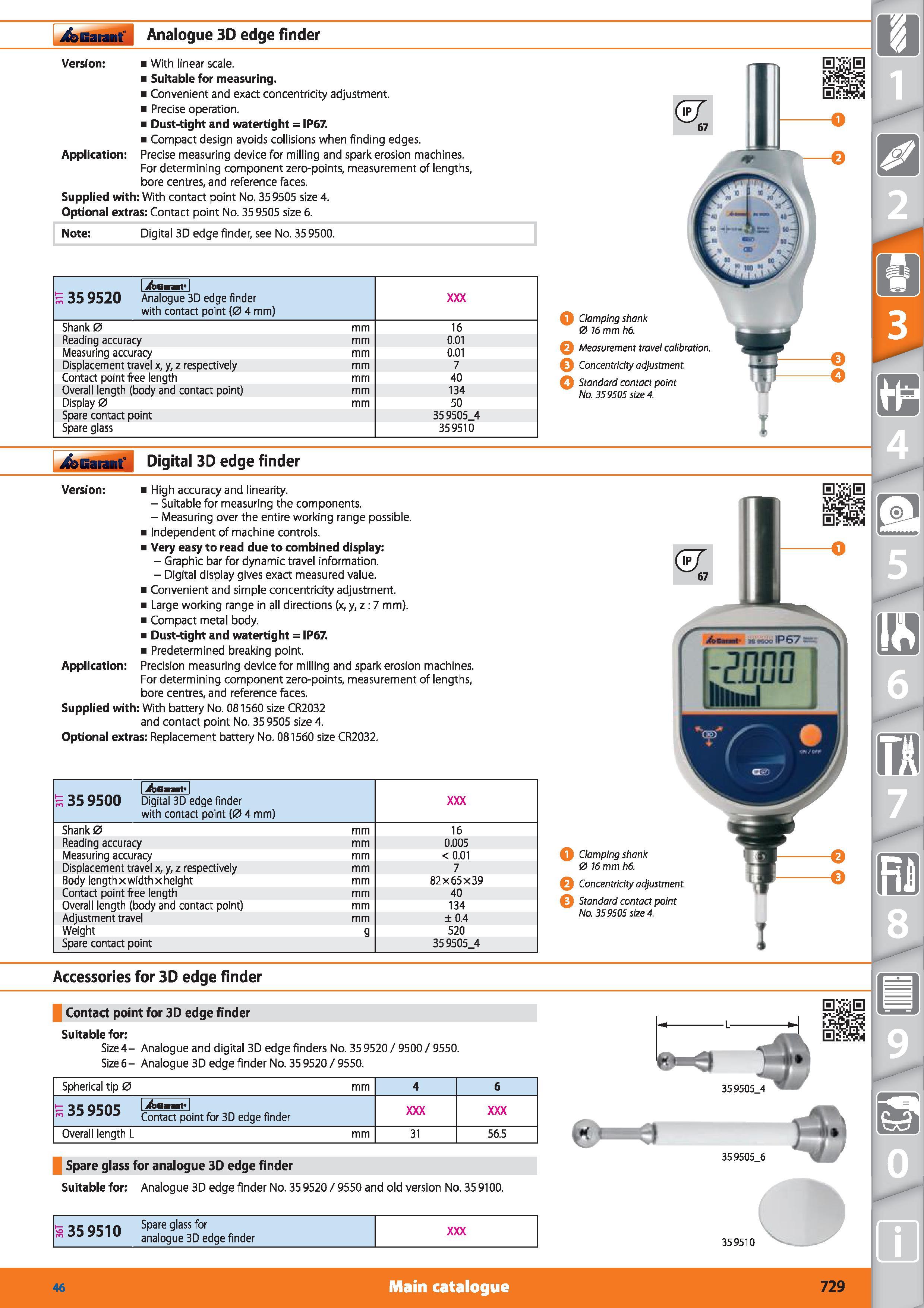

Garant Analogue 3D edge finder Version With linear scale. Suitable for measuring. Convenient and exact concentricity adjustment. Precise operation. Dust-tight and watertight IP67. Compact design avoids collisions when finding edges. Application Precise measuring device for milling and spark erosion machines. For determining component zero-points, measurement of lengths, bore centres, and reference faces. Supplied with With contact point No. 35 9505 size 4. Optional extras Contact point No. 359505 size 6. Note Digital 3D edge finder, see No. 359500. frmgl Digital 3D edge finder Version High accuracy and linearity. - Suitable for measuring the components. - Measuring over the entire working range possible. Independent of machine controls. Very easy to read due to combined display - Graphic bar for dynamic travel information. - Digital display gives exact measured value. Convenient and simple concentricity adjustment. Large working range in all directions (x, y, z 7 mm). Compact metal body. Dust-tight and watertight IP67. Predetermined breaking point. Application Precision measuring device for milling and spark erosion machines. For determining component zero-points, measurement of lengths, bore centres, and reference faces. Supplied with With battery No. 081560 size CR2032 and contact point No. 35 9505 size 4. Optional extras Replacement battery No. 081560 size CR2032. 1 j&Gmnt”l s 35 9520 Analogue 3D edge finder with contact point (0 4 mm) Shank 0 mm 16 Reading accuracy mm 0.01 Measuring accuracy mm 0.01 Displacement travel x, y, z respectively mm 7 Contact point free length mm 40 Overall length (body and contact point) mm 134 Display 0 mm 50 Spare contact point 359505 4 Spare glass 359510 Q Clamping shank 0 16 mm h6. Q Measurement travel calibration, Q Concentricity adjustment. Q Standard contact point No. 359505 size 4. 1 j&Gmnt 1 s 35 9500 Digital 3D edge finder with contact point (0 4 mm) Shank 0 mm 16 Reading accuracy mm 0.005 Measuring accuracy mm <0.01 Displacement travel x, y, z respectively mm 7 Body lengthxwidthxheight mm 82x65x39 Contact point free length mm 40 Overall length (body and contact point) mm 134 Adjustment travel mm ±0.4 Weight 9 520 Spare contact point 359505 4 Q Clamping shank 0 16 mm h6. Q Concentricity adjustment. Q Standard contact point No. 359505 size 4. I Accessories for 3D edge finder Contact point for 3D edge finder Suitable for Size 4- Analogue and digital 3D edge finders No. 35 9520/9500/9550. Size 6- Analogue 3D edge finder No. 359520/9550. Spherical tip 0 mm 4 6 i-acocni; I gmipI ro Contact point for 3D edge finder Overall length L mm 31 56.5 Spare glass for analogue 3D edge finder Suitable for Analogue 3D edge finder No. 35 9520 / 9550 and old version No. 35 9100. 359510 Spare glass for analogue 3D edge finder 359510 Main catalogue Hoffmann Group 46 729
