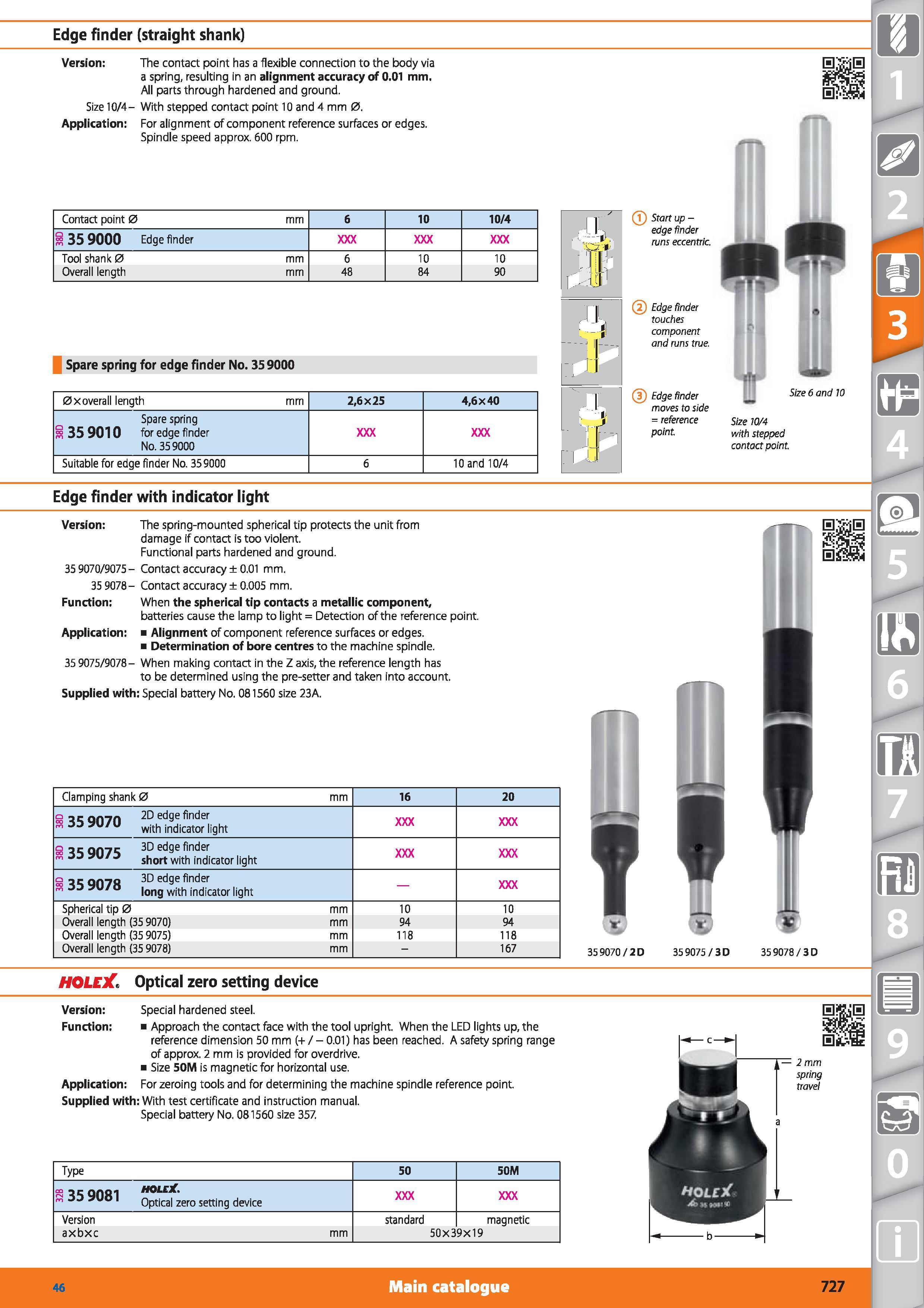

Edge finder (straight shank) Version The contact point has a flexible connection to the body via a spring, resulting in an alignment accuracy of 0.01 mm. All parts through hardened and ground. Size 10/4- With stepped contact point 10 and 4 mm 0. Application For alignment of component reference surfaces or edges. Spindle speed approx. 600 rpm. Contact point 0 mm 6 10 10/4 H 35 9000 Edge finder Tool shank 0 mm 6 10 10 Overall length mm 48 84 90 Spare spring for edge finder No. 35 9000 (7) Start up -edge finder runs eccentric. Edge finder touches component and runs true. 0xoverall length mm 2,6x25 4,6x40 Spare spring 8 35 9010 for edge finder No. 35 9000 Suitable for edge finder No. 359000 6 10 and 10/4 (5) Edge finder moves to side reference Size 10/4 point. with stepped contact point Size 6 and 10 Edge finder with indicator light Version The spring-mounted spherical tip protects the unit from damage if contact is too violent. Functional parts hardened and ground. 35 9070/9075- Contact accuracy ± 0.01 mm. 35 9078- Contact accuracy ± 0.005 mm. Function When the spherical tip contacts a metallic component, batteries cause the lamp to light Detection of the reference point. Application Alignment of component reference surfaces or edges. Determination of bore centres to the machine spindle. 35 9075/9078- When making contact in the Z axis, the reference length has to be determined using the pre-setter and taken into account. Supplied with Special battery No. 081560 size 23A. Clamping shank 0 mm 16 20 0 -,r nn-in 2D edge finder S 35 9070 with indicator light 9
