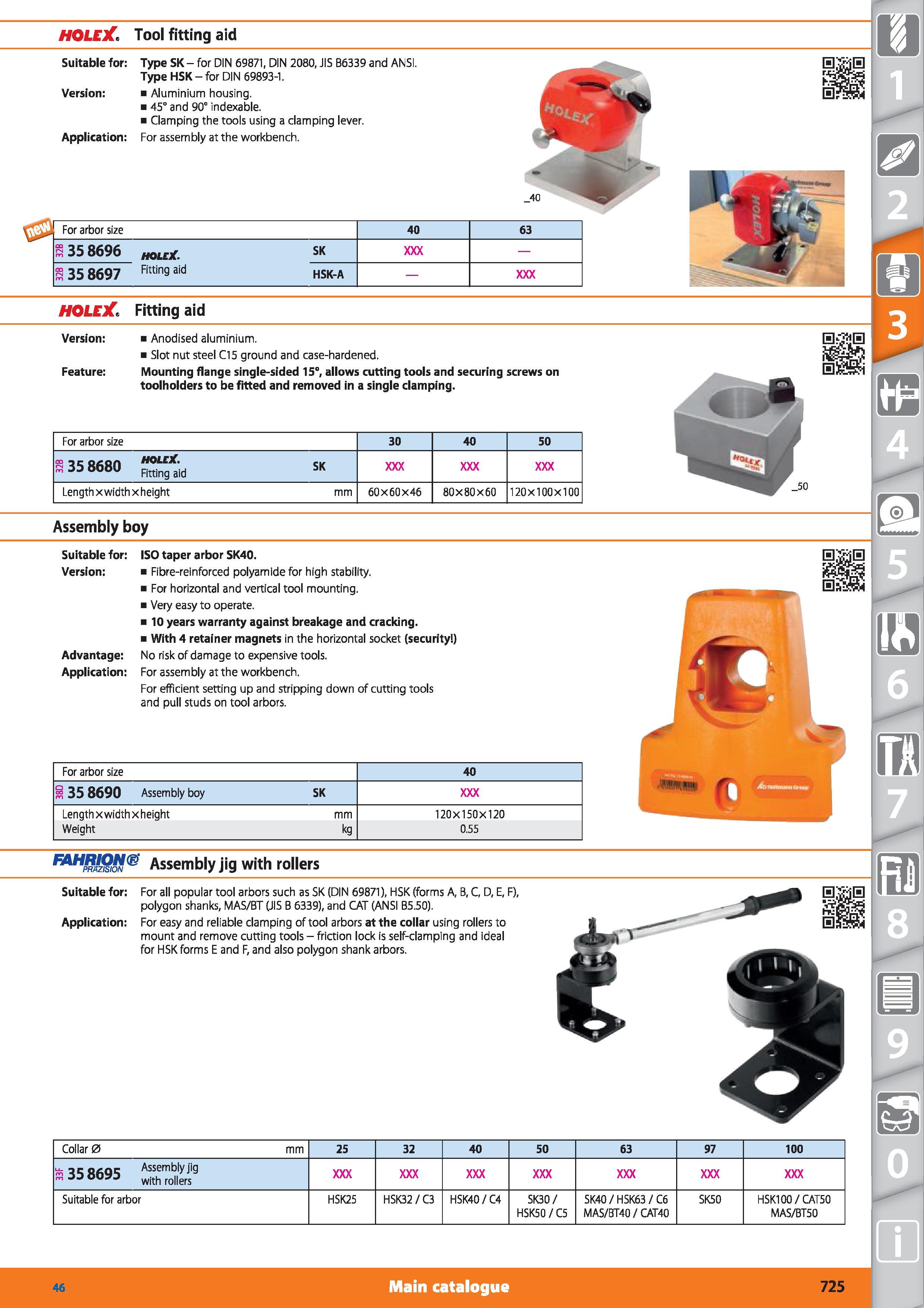

HOLEX Tool fitting aid Suitable for Type SK - for DIN 69871, DIN 2080, JIS B6339 and ANSI. Type HSK-for DIN 69893-1. Version Aluminium housing. 45° and 90° indexable. Clamping the tools using a clamping lever. Application For assembly at the workbench. For arbor size 40 63 a 35 8696 HOLEX SK a 35 8697 Fitting aid HSK-A HOLEX Fitting aid Version Feature Anodised aluminium. Slot nut steel Cl 5 ground and case-hardened. Mounting flange single-sided 15°, allows cutting tools and securing screws on toolholders to be fitted and removed in a single clamping. For arbor size 30 40 50 S358680 SK Length x width x height mm 60x60x46 80x80x60 120x100x100 A r J 1 Assembly boy Suitable for Version Advantage Application ISO taper arbor SK40. Fibre-reinforced polyamide for high stability. For horizontal and vertical tool mounting. Very easy to operate. 10 years warranty against breakage and cracking. With 4 retainer magnets in the horizontal socket (security ) No risk of damage to expensive tools. For assembly at the workbench. For efficient setting up and stripping down of cutting tools and pull studs on tool arbors. For arbor size 40 H 35 8690 Assembly boy SK Length x width x height mm 120X150X120 Weight kg 0.55 HRION Assembly jig with rollers Suitable for For all popular tool arbors such as SK (DIN 69871), HSK (forms A, B, C, D, E, F), polygon shanks, MAS/BT (JIS B 6339), and CAT (ANSI B5.50). Application For easy and reliable clamping of tool arbors at the collar using rollers to mount and remove cutting tools - friction lock is self-damping and ideal for HSK forms E and F, and also polygon shank arbors. Collar 0 mm 25 32 40 50 63 97 100 S 35 8695 SK9 Suitable for arbor HSK25 HSK32/C3 HSK40/C4 SK30/ HSK50/C5 SK40/HSK63/C6 MAS/BT40 / CAT40 SK50 HSK100/ CAT50 MAS/BT50 Main catalogue Hoffmann Group 46 725
