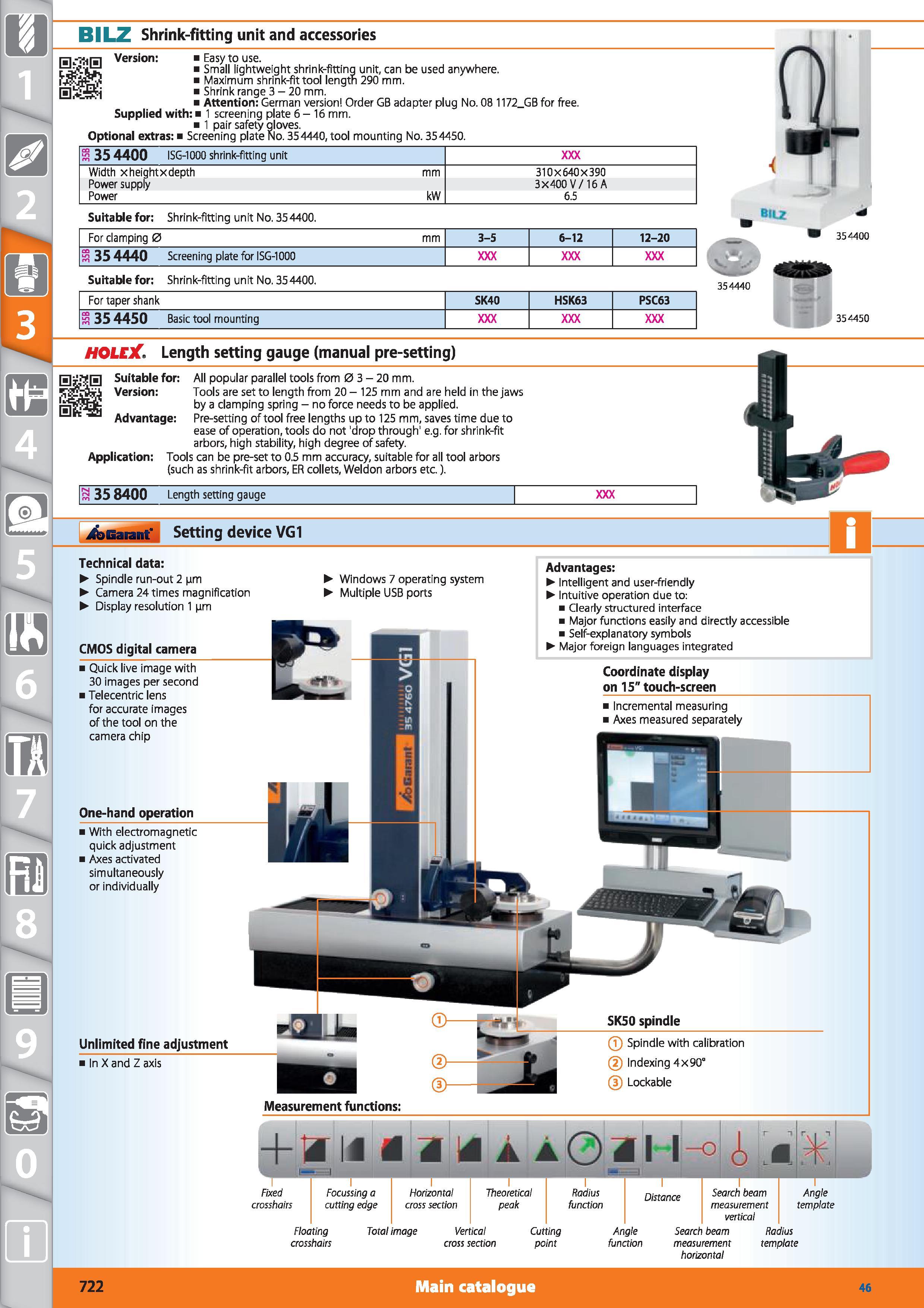

1 BILZ Shrink-fitting unit and accessories Easy to use. Small lightweight shrink-fitting unit, can be used anywhere. Maximum shrink-fit tool lengtn 290 mm. Shrink range 3-20 mm. Attention German version Order GB adapter plug No. 08 1172_GB for free. Supplied with 1 screening plate 6-16 mm. 1 pair safety gloves. Optional extras Screening plate No. 354440, tool mounting No. 354450. ifl 35 4400 ISG-1000 shrink-fitting unit Width xheiqhtxdepth mm 310X640X390 Power supply 3x400 V/ 16 A Power kW 6.5 Suitable for Shrink-fitting unit No. 354400. For clamping 0 mm 3-5 6-12 12-20 S 35 4440 Screening plate for ISG-1000 Suitable for Shrink-fitting unit No. 354400. For taper shank SK40 HSK63 PSC63 S 35 4450 Basic tool mounting HOLEX Length setting gauge (manual pre-setting) Suitable for All popular parallel tools from 0 3 - 20 mm. Version Tools are set to length from 20- 125 mm and are held in the jaws by a clamping spring - no force needs to be applied. Pre-setting of tool free lengths up to 125 mm, saves time due to ease of operation, tools do not 'drop through1 e.g. for shrink-fit arbors, high stability, high degree of safety. Tools can be pre-set to 0.5 mm accuracy, suitable for all tool arbors (such as shrink-fit arbors, ER collets, Weldon arbors etc.). Advantage Application 35 8400 Length setting gauge ifcGarant" Setting device VG1 (Ul rci + fri m a a a a Oai i T =l M m -o Fixed crosshairs Focussing a Horizontal Theoretical Radius Distance Search beam Angle cutting edge cross section peak function measurement vertical template Floating crosshairs Total image Vertical cross section Cutting point Angle function Search beam measurement horizontal Radius template 35 4440 354400 354450 Technical data Spindle run-out 2 nm Camera 24 times magnification Display resolution 1 nm CMOS digital camera Quick live image with 30 images per second Telecentric lens for accurate images of the tool on the camera chip One-hand operation With electromagnetic quick adjustment Axes activated simultaneously or individually Unlimited fine adjustment In X and Z axis Windows 7 operating system Multiple USB ports Advantages Intelligent and user-friendly Intuitive operation due to Clearly structured interface Major functions easily and directly accessible Self-explanatory symbols Major foreign languages integrated ma Measurement functions Coordinate display on 15" touch-screen SK50 spindle (J Spindle with calibration (2 Indexing 4x90° (1 Lockable 722 Main catalogue Hoffmann Group 46
