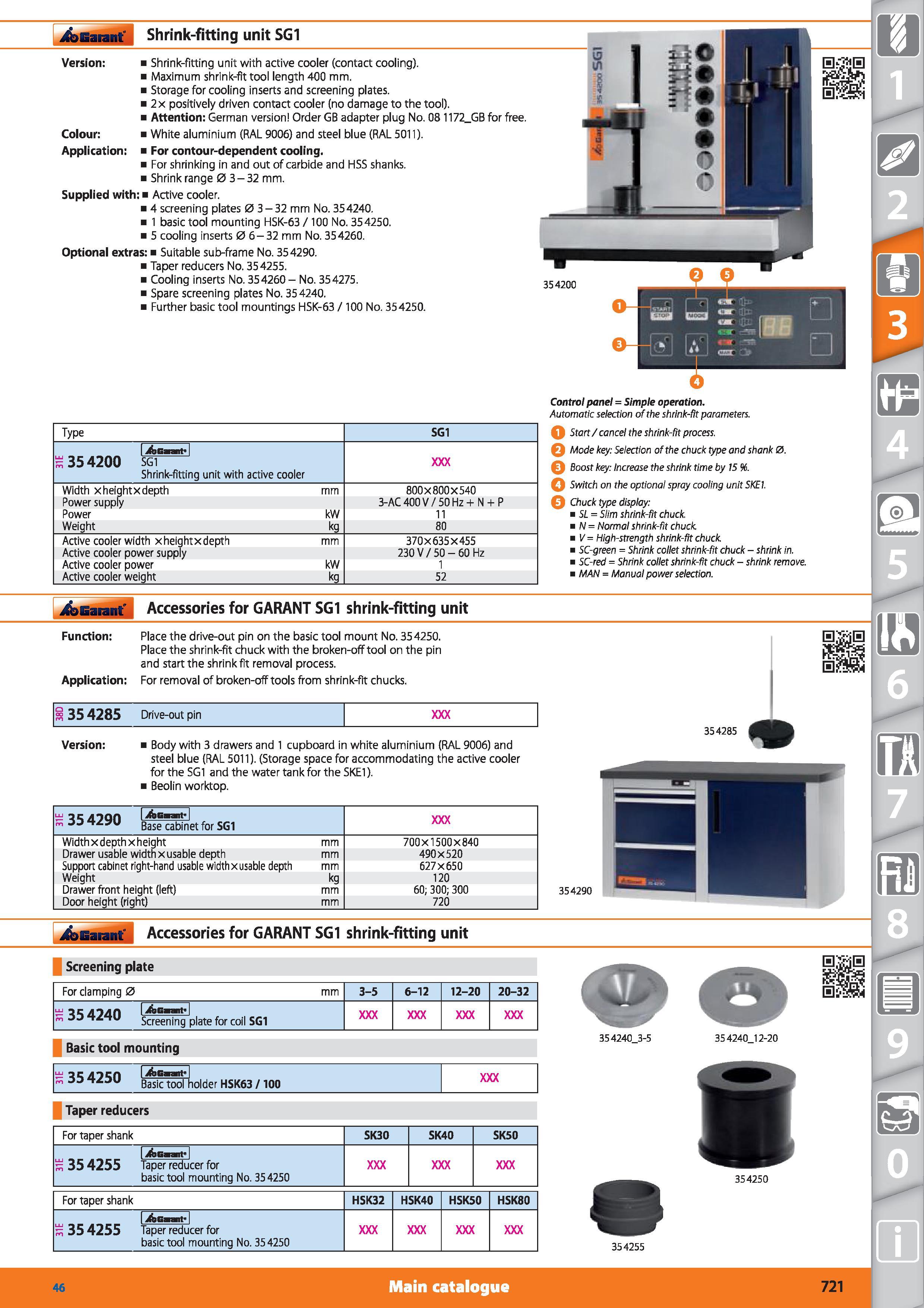

Garant Shrink-fitting unit SGI Version Shrink-fitting unit with active cooler (contact cooling). Maximum shrink-fit tool length 400 mm. Storage for cooling inserts and screening plates. 2x positively driven contact cooler (no damage to the tool). Attention German version Order GB adapter plug No. 081172_GB for free. Colour White aluminium (RAL 9006) and steel blue (RAL 5011). Application For contour-dependent cooling. For shrinking in and out of carbide and HSS shanks. Shrink range 0 3 - 32 mm. Supplied with Active cooler. 4 screening plates 0 3 - 32 mm No.354240. 1 basic tool mounting HSK-63 /100 No. 354250. 5 cooling inserts 0 6-32 mm No. 354260. Optional extras Suitable sub-frame No. 354290. Taper reducers No. 354255. Cooling inserts No. 354260 - No. 354275. Spare screening plates No. 354240. Further basic tool mountings HSK-63 / 100 No. 354250. Type SG1 1 ifecnnt 1 s 35 4200 sgi Shrink-fitting unit with active cooler Width x height x depth mm 800X 800X 540 Power supply 3-AC 400 V / 50 Hz + N + P Power kW 11 Weight kg 80 Active cooler width xheightxdepth mm 370 x 635 x 455 Active cooler power supply 230 V / 50 - 60 Hz Active cooler power kW 1 Active cooler weight kg 52 Control panel Simple operation. Automatic selection of the shrink-fit parameters. Q Start / cancel the shrink-fit process. Mode key Selection of the chuck type and shank 0. Boost key Increase the shrink time by 15 96. Q Switch on the optional spray cooling unit SKE1. Q Chuck type display SL- Slim shrink-fit chuck N Normal shrink-fit chuck I/- High-strength shrink-fit chuck SC-green Shrink collet shrink-fit chuck - shrink in. SC-red Shrink collet shrink-fit chuck - shrink remove MAN Manual power selection. Garant Accessories for GARANT SG1 shrink-fitting unit Function Place the drive-out pin on the basic tool mount No. 354250. Place the shrink-fit chuck with the broken-off tool on the pin and start the shrink fit removal process. Application For removal of broken-off tools from shrink-fit chucks. i 35 4285 Drive-out pin Version Body with 3 drawers and 1 cupboard in white aluminium (RAL 9006) and steel blue (RAL 5011). (Storage space for accommodating the active cooler for the SGI and the water tank for the SKE1). Beolin worktop. Garant Accessories for GARANT SG1 shrink-fitting unit Screening plate Basic tool mounting - 4.710 I >Gratf 33 Basic tQ0 h0 der HSK63 / 100 Taper reducers lAGmnfi rn 33 Base cabinet for SG1 Widthxdepthxheight mm 700x1500x840 Drawer usable width x usable depth mm 490x520 Support cabinet right-hand usable width x usable depth mm 627x650 Weight kg 120 Drawer front height (left) mm 60; 300; 300 Door height (right) mm 720 354290 For clamping 0 mm 3-5 6-12 12-20 20-32 h 35 4240 I jfecmnt Screening plate for coil SGI 354240 3-5 For taper shank SK30 SK40 SK50 ifeGmnt” s 35 4255 Taper reducer for basic tool mounting No. 35 4250 For taper shank H5K32 HSK40 HSK50 HSK80 1 jfacmnt 1 S 35 4255 Taper reducer for basic tool mounting No. 35 4250 354250 Egg o 354240 12-20 354255 Main catalogue Hoffmann Group 46 721 & m 354200
