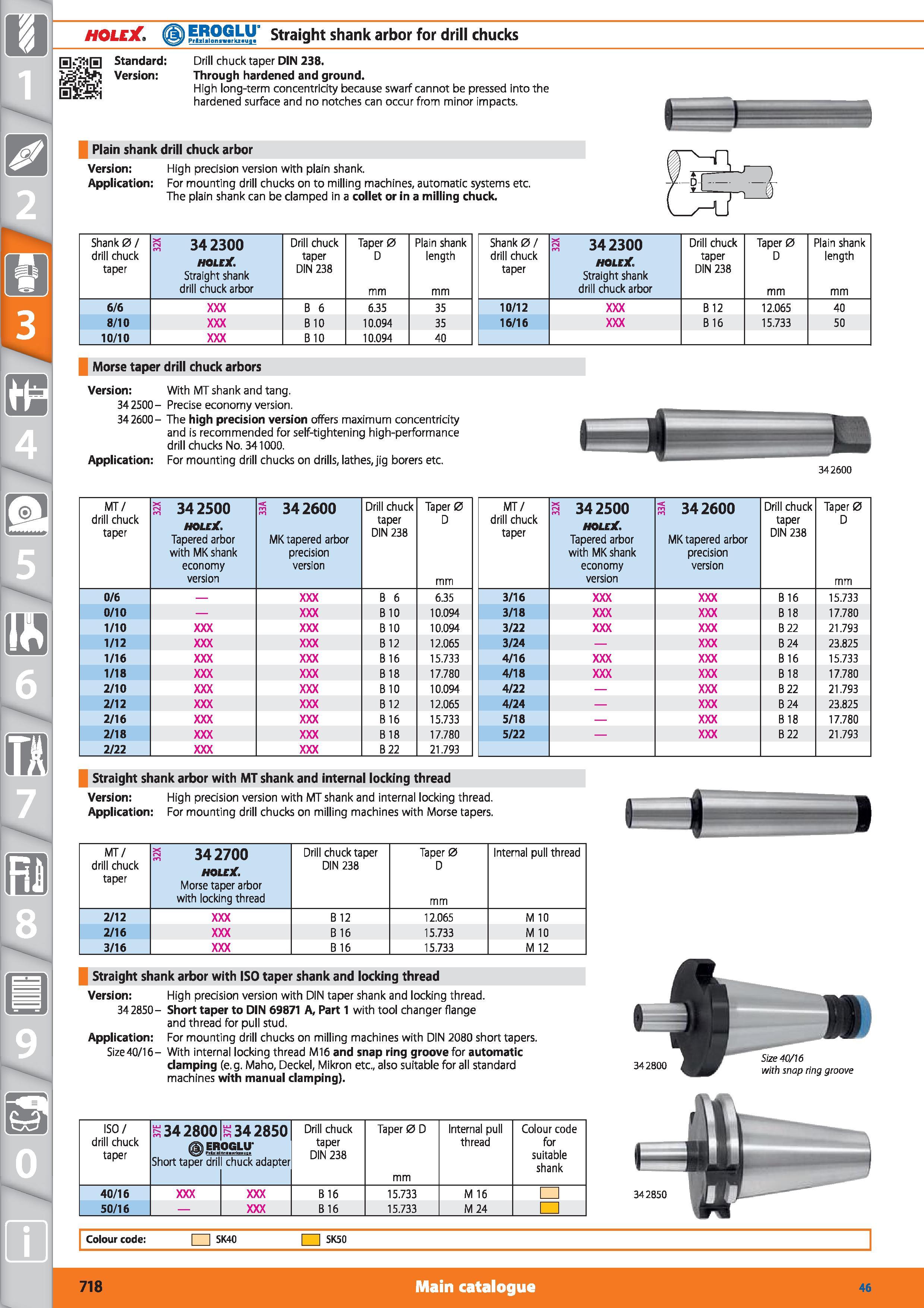

HOLE ESSSMi Straight shank arbor for drill chucks S jS Standard Version Drill chuck taper DIN 238. Through hardened and ground. High long-term concentricity because swarf cannot be pressed into the hardened surface and no notches can occur from minor impacts. Plain shank drill chuck arbor Version High precision version with plain shank. Application For mounting drill chucks on to milling machines, automatic systems etc. The plain shank can be clamped in a collet or in a milling chuck. Shank 0 / drill chuck taper a 342300 HOLEX Straight shank drill chuck arbor Drill chuck taper DIN 238 Taper 0 D mm Plain shank length mm Shank 0 / drill chuck taper a 342300 HOLEX Straight shank drill chuck arbor Drill chuck taper DIN 238 Taper 0 D mm Plain shank length mm 6/6 B 6 6.35 35 10/12 B 12 12.065 40 8/10 B 10 10.094 35 16/16 B 16 15.733 50 10/10 B 10 10.094 40 Morse taper drill chuck arbors Version With WIT shank and tang. 342500- Precise economy version. 342600- The high precision version offers maximum concentricity and is recommended for self-tightening high-performance drill chucks No. 341000. Application For mounting drill chucks on drills, lathes, jig borers etc. 342600 MT/ drill chuck taper a 342500 holcjC, Tapered arbor with MK shank economy version 3 342600 MK tapered arbor precision version Drill chuck taper DIN 238 Taper 0 D mm MT/ drill chuck taper a 342500 HOLEX Tapered arbor with MK shank economy version 3 342600 MK tapered arbor precision version Drill chuck taper DIN 238 Taper 0 D mm 0/6 B 6 6.35 3/16 B 16 15.733 0/10 B10 10.094 3/18 B 18 17.780 1/10 B10 10.094 3/22 B 22 21.793 1/12 B 12 12.065 3/24 B 24 23.825 1/16 B 16 15.733 4/16 B 16 15.733 1/18 B 18 17.780 4/18 B 18 17.780 2/10 B10 10.094 4/22 B 22 21.793 2/12 B 12 12.065 4/24 B 24 23.825 2/16 B 16 15.733 5/18 B 18 17.780 2/18 B 18 17.780 5/22 B 22 21.793 2/22 B 22 21.793 Straight shank arbor with MT shank and internal locking thread Version High precision version with MT shank and internal locking thread. Application For mounting drill chucks on milling machines with Morse tapers. MT/ drill chuck taper a 342700 HOLEX Morse taper arbor with locking thread Drill chuck taper DIN 238 Taper 0 D mm Internal pull thread 2/12 B 12 12.065 M 10 2/16 B 16 15.733 M 10 3/16 B 16 15.733 M 12 Straight shank arbor with ISO taper shank and locking thread Version High precision version with DIN taper shank and locking thread. 342850- Short taper to DIN 69871 A, Part 1 with tool changer flange and thread for pull stud. Application For mounting drill chucks on milling machines with DIN 2080 short tapers. Size40/16- With internal locking thread M16 and snap ring groove for automatic clamping (e.g. Maho, Deckel, Mikron etc., also suitable for all standard machines with manual clamping). 342800 Size 40/16 with snap ring groove ISO/ drill chuck taper 34 2800 s 34 2850 EBSEM' Short taper drill chuck adapter Drill chuck taper DIN 238 Taper 0 D Internal pull thread Colour code for suitable shank 40/16 50/16 B 16 B 16 15.733 15.733 M 16 M 24 Colour code 5K40 SK50 342850 718 Main catalogue
