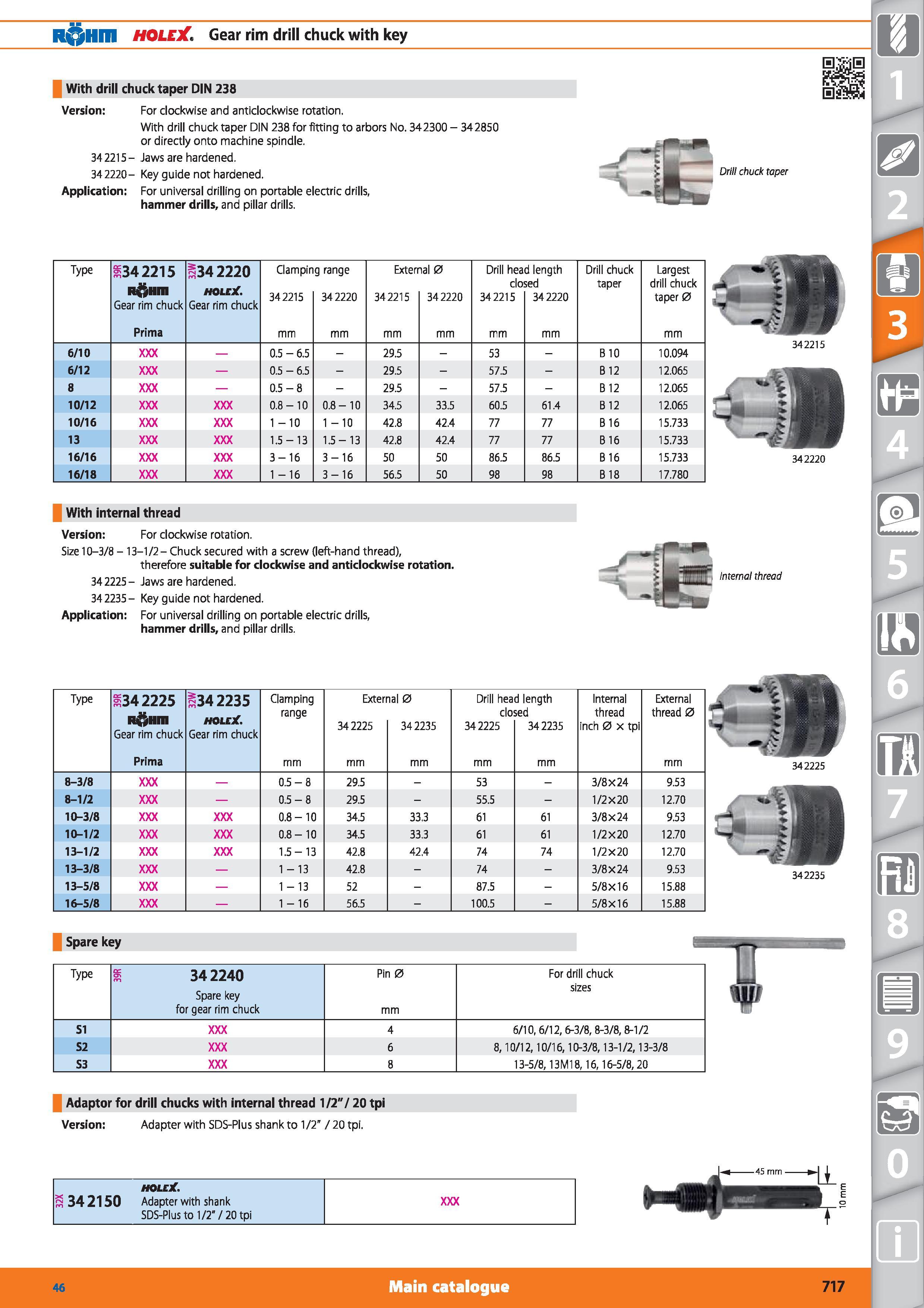

R Hm HOLEX Gear rim drill chuck with key With drill chuck taper DIN 238 Version For clockwise and anticlockwise rotation. With drill chuck taper DIN 238 for fitting to arbors No. 342300 -or directly onto machine spindle. 342215- Jaws are hardened. 342220- Key guide not hardened. Application For universal drilling on portable electric drills, hammer drills, and pillar drills. 342850 Type 1342215 nftmn Gear rim chuck Prima 1342220 HOLCX. Gear rim chuck Clampin 342215 mm g range 342220 mm Exter 342215 mm lal 0 342220 mm Drill hea do 342215 mm d length sed 342220 mm Drill chuck taper Largest drill chuck taper 0 mm 6/10 0.5 - 6.5 - 29.5 - 53 - B10 10.094 6/12 0.5 - 6.5 - 29.5 - 57.5 - B 12 12.065 8 P Ln 1 OD - 29.5 - 57.5 - B 12 12.065 10/12 0.8-10 0.8-10 34.5 33.5 60.5 61.4 B 12 12.065 10/16 1 -10 1 -10 42.8 42.4 77 77 B 16 15.733 13 1.5-13 1.5-13 42.8 42.4 77 77 B 16 15.733 16/16 3-16 3-16 50 50 86.5 86.5 B 16 15.733 16/18 1 -16 3-16 56.5 50 98 98 B 18 17.780 342215 342220 With internal thread Version For clockwise rotation. Size 10-3/8 - 13-1/2-Chucksecured with a screw (left-hand thread), therefore suitable for clockwise and anticlockwise rotation. 342225- Jaws are hardened. 34 2235 - Key guide not hardened. Application For universal drilling on portable electric drills, hammer drills, and pillar drills. Internal thread Type s34 2225 n mi Gear rim chuck Prima 1342235 holejC Gear rim chuck Clamping range mm Exter 342225 mm nal 0 342235 mm Drill hea do 342225 mm d length sed 342235 mm Internal thread inch 0 x tpi External thread 0 mm 8-3/8 0 Ln 1 OO 29.5 - 53 - 3/8x24 9.53 8-1/2 0 Ln 1 ca 29.5 - 55.5 - 1/2x20 12.70 10-3/8 0.8-10 34.5 33.3 61 61 3/8x24 9.53 10-1/2 0.8-10 34.5 33.3 61 61 1/2x20 12.70 13-1/2 1.5-13 42.8 42.4 74 74 1/2x20 12.70 13-3/8 1 - 13 42.8 - 74 - 3/8x24 9.53 13-5/8 1 - 13 52 - 87.5 - 5/8x16 15.88 16-5/8 1 - 16 56.5 - 100.5 - 5/8x16 15.88 Spare key 342235 Type a 342240 Spare key for gear rim chuck Pin 0 mm For drill chuck sizes 51 4 6/10,6/12,6-3/8,8-3/8,8-1/2 S2 6 8,10/12,10/16,10-3/8,13-1/2,13-3/8 S3 8 13-5/8,13M18,16,16-5/8,20 Adaptor for drill chucks with internal thread 1/2"/ 20 tpi Version Adapter with SDS-Plus shank to 1/2” / 20 tpi. hqleX. S 34 2150 Adapter with shank SDS-Plus to 1/2"/20 tpi Main catalogue Hoffmann Group 46 717
