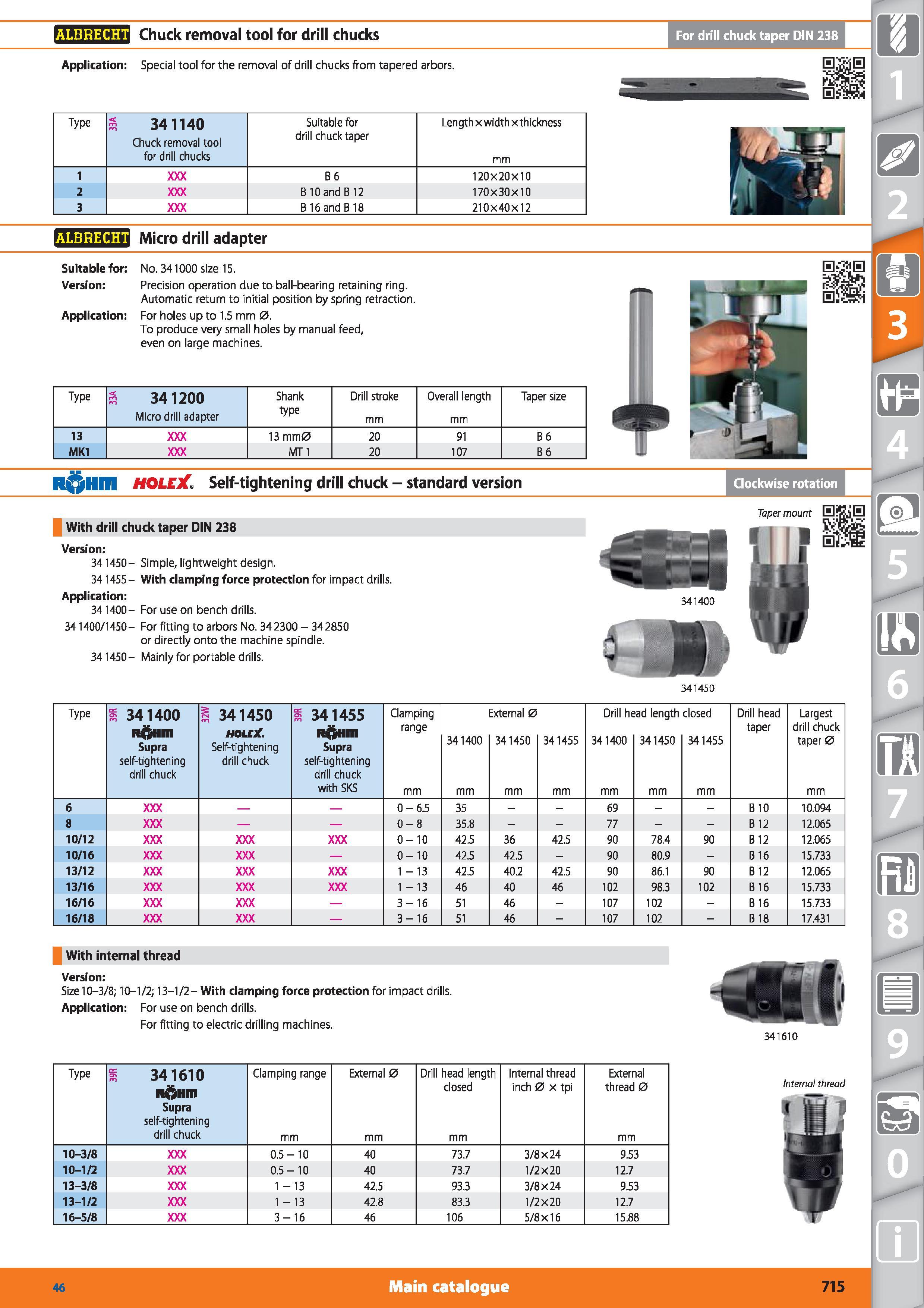

ALBRECHT Chuck removal tool for drill chucks For drill chuck taper DIN 238 Application Special tool for the removal of drill chucks from tapered arbors. Type ffi 341140 Chuck removal tool for drill chucks Suitable for drill chuck taper Length x width xthickness mm 1 B 6 120 X 20X10 2 B 10 and B12 170x30x10 3 B 16 and B18 210X40X12 Micro drill adapter Suitable for No. 341000 size 15. Version Precision operation due to ball-bearing retaining ring. Automatic return to initial position by spring retraction. Application For holes up to 1.5 mm 0. To produce very small holes by manual feed, even on large machines. ALBRECHT Type n 341200 Shank Drill stroke Overall length Taper size Micro drill adapter type mm 13 13 mm0 20 91 B 6 MK1 MT 1 20 107 B 6 R HVTI HOLEX Self-tightening drill chuck - standard version With drill chuck taper DIN 238 Version 341450- Simple, lightweight design. 341455- With clamping force protection for impact drills. Application 341400- For use on bench drills. 341400/1450- For fitting to arbors No. 342300 - 342850 or directly onto the machine spindle. 341450- Mainly for portable drills. 341450 Type 341400 R&Hm Supra self-tightening drill chuck S 341450 HOtfjf. Self-tightening drill chuck 341455 R&Hm Supra self-tightening drill chuck with SKS Clamping range mm 341400 mm External 0 341450 mm 341455 mm Drill he 341400 mm ad length 341450 mm closed 341455 mm Drill head taper Largest drill chuck taper 0 mm 6 O I p\ In 35 69 B10 10.094 8 O I OO 35.8 77 B 12 12.065 10/12 0-10 42.5 36 42.5 90 78.4 90 B 12 12.065 10/16 0-10 42.5 42.5 - 90 80.9 - B 16 15.733 13/12 1 - 13 42.5 40.2 42.5 90 86.1 90 B 12 12.065 13/16 1-13 46 40 46 102 98.3 102 B 16 15.733 16/16 3-16 51 46 - 107 102 - B 16 15.733 16/18 3-16 51 46 - 107 102 - B 18 17.431 With internal thread Version Size 10-3/8; 10-1/2; 13-1/2- With clamping force protection for impact drills. Application For use on bench drills. For fitting to electric drilling machines. 341610 Type 1 341610 R&Hm Supra self-tightening drill chuck Clamping range mm External 0 mm Drill head length closed mm Internal thread inch 0 x tpi External thread 0 mm 10-3/8 0.5-10 40 73.7 3/8x24 9.53 10-1/2 0.5-10 40 73.7 1/2x20 12.7 13-3/8 1-13 42.5 93.3 3/8x24 9.53 13-1/2 1 -13 42.8 83.3 1/2x20 12.7 16-5/8 3-16 46 106 5/8x16 15.88 Internal thread Clockwise rotation ras ails Main catalogue Hoffmann Group 46 715
